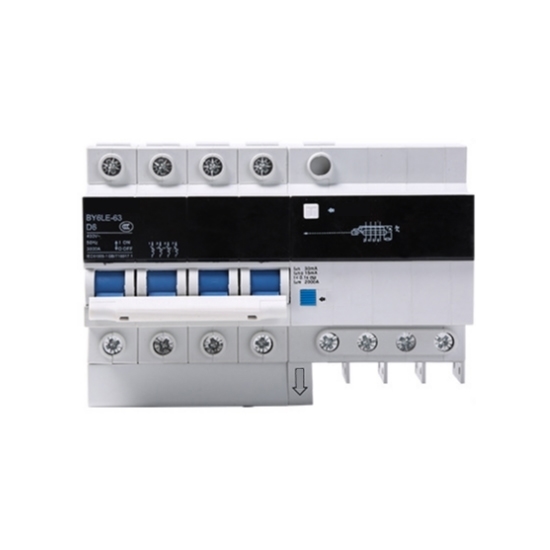

4 Pole Residual Current Circuit Breaker, 10A/16A/20A/25A/32A/40A/63A

0 reviews • Write a review

from

$63.79

Ex Tax: $63.79

Stock: In Stock
Model: RDDLZ-RCCB-4P
Weight: 1.00
SKU: RDDLZ-RCCB-4P

Available Options

Short Description

Rated Current

Dimension

Internal Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Four pole residual current circuit breaker (RCCB) with overload protection can monitor the difference between live and neutral currents in a three-phase electrical system. This 10 amp ~ 63 amp RCD residual current device is used in electrical systems to protect against earth leakage faults.

Specification

Model	RDDLZ-BY6LE-63-4P
Pole	4 Pole
Dimension (Optional)	95mm(L)118mm(W)75mm(H)	95mm(L)135mm(W)75mm(H)
Rated Current (Optional)	10A, 16A, 20A, 25A, 32A	40A, 50A, 63A
Internal Material (Optional)	Thin Copper Part or Thick Copper Part
Rated Frequency	50-60Hz
Rated Insulation Voltage	400V
Rated Impulse Withstand Voltage (KV)Uimp	4000
Rated Short-Circuit Capacity (KA)Inc	3000-6000
Rated Residual Breaking Capacity (I△m=lm)	2000
Maximum Breaking Time at Rated Residual Current	0.1s
Producible Leakage Protection Type	AC Type
Rated Residual Operating Current (I△n)	30mA
Electrical Life	10000
Mechanical Life	10000
Protection Level	IP20
Function	Short Circuit Protection, Overload Protection, Leakage Protection, Circuit Breaker Protection
Installation	35mm Rail Mounting

RCCB Breaker Dimension

95mm(L)*118mm(W)*75mm(H)

95mm(L)*135mm(W)*75mm(H)

Tips: Difference between RCCB and MCB breaker

An RCCB (Residual Current Circuit Breaker) and an MCB (Miniature Circuit Breaker) are both safety devices but serve different purposes.

An RCCB is designed to detect and prevent electrical leakage or ground faults, where current flows through unintended paths like a human body. When it senses a difference between the live and neutral current, indicating leakage, it trips to protect against electric shocks.

An MCB is used to protect electrical circuits from overloads and short circuits. It trips when it detects excessive current flow, preventing damage to the wiring and appliances due to overheating or faults.

In summary, an RCCB protects against electric shocks and ground faults, while an MCB protects against overloads and short circuits. They are often used together for comprehensive electrical protection.
