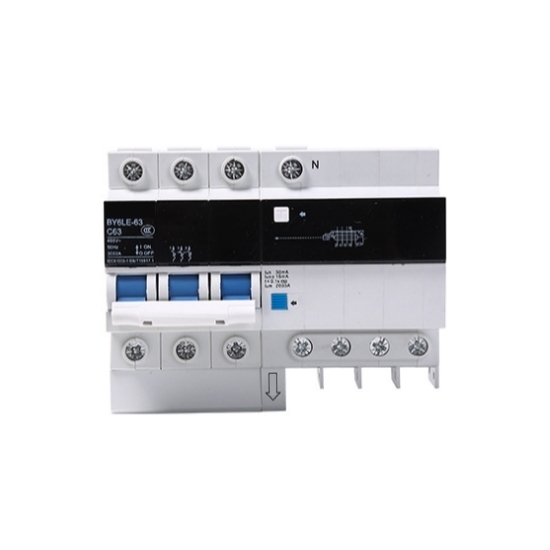

3 Pole Residual Current Circuit Breaker, 10A/16A/20A/25A/32A/40A/63A

0 reviews • Write a review

from

$61.99

Ex Tax: $61.99

Stock: In Stock
Model: RDDLZ-RCCB-3P
Weight: 1.00
SKU: RDDLZ-RCCB-3P

Available Options

Short Description

Rated Current

Dimension

Internal Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10 amp ~ 63 amp RCCB can monitor the difference between live and neutral currents in a three-phase electrical system. This 3 pole RCD residual current device is used in electrical systems to protect against earth leakage faults.

Specification

Model	RDDLZ-BY6LE-63-3P
Pole	3 Pole + N
Dimension (Optional)	95mm(L)100mm(W)75mm(H)	95mm(L)106mm(W)75mm(H)
Rated Current (Optional)	10A, 16A, 20A, 25A, 32A	40A, 50A, 63A
Internal Material (Optional)	Thin Copper Part or Thick Copper Part
Rated Frequency	50-60Hz
Rated Insulation Voltage	400V
Rated Impulse Withstand Voltage (KV)Uimp	4000
Rated Short-Circuit Capacity (KA)Inc	3000-6000
Rated Residual Breaking Capacity (I△m=lm)	2000
Maximum Breaking Time at Rated Residual Current	0.1s
Producible Leakage Protection Type	AC Type
Rated Residual Operating Current (I△n)	30mA
Electrical Life	10000
Mechanical Life	10000
Protection Level	IP20
Function	Short Circuit Protection, Overload Protection, Leakage Protection, Circuit Breaker Protection
Installation	35mm Rail Mounting

RCCB Breaker Dimension

95mm(L)*100mm(W)*75mm(H)

95mm(L)*106mm(W)*75mm(H)

Tips: Difference between RCCB and MCCB breaker

RCCB (Residual Current Circuit Breaker) and MCCB (Molded Case Circuit Breaker) serve different purposes in electrical protection.

RCCB detects earth faults or leakage currents, protecting against electric shocks and preventing fire hazards. It works by comparing the live and neutral currents; if there's a difference (indicating leakage), it trips the circuit. RCCBs are typically used in residential and light commercial installations, focusing on human safety rather than overload protection.
MCCB is designed to protect against overcurrents (overload or short circuit). It is capable of handling higher current ratings and is used in industrial and commercial applications where higher power is distributed. MCCBs can be adjustable and provide both thermal (overload) and magnetic (short-circuit) protection.
