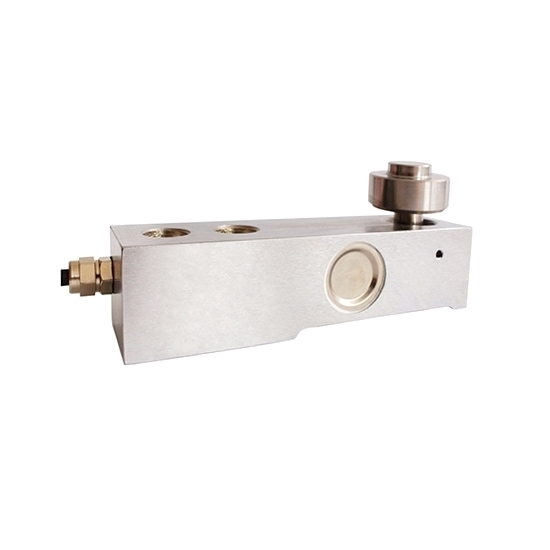

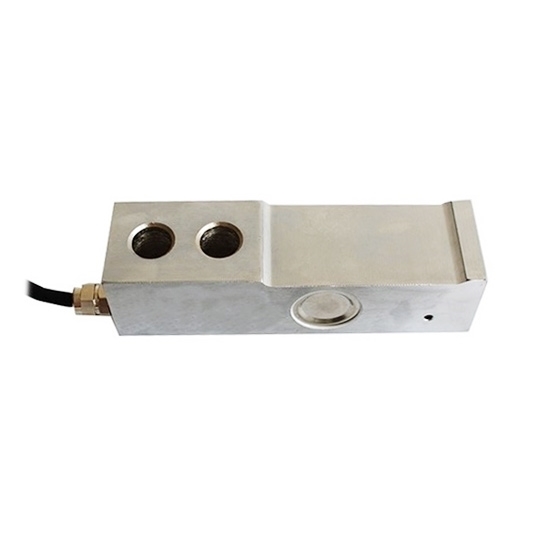

Cantilever Beam Load Cell, 500kg/1000kg/2 Ton/3 Ton/5 Ton

0 reviews • Write a review

from

$150.79

Ex Tax: $150.79

Stock: In Stock
Model: RDDLZ-LC-B03
Weight: 1.00
SKU: RDDLZ-LC-B03

Available Options

Capacity

With Transmitter

Display Controller

With Pressure Head

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Cheap cantilever beam load cells have capacity range from 500kg/1000kg/2 ton/3 ton to 5 ton. Capacity of Load cell can be customized according to customer's requirements.

Specification

Model	RDDLZ-LCB-DYHLJ
Shipping Weight	1.1~5kg
Capacity Range *	500kg/1000kg/2 ton/3 ton/5 ton

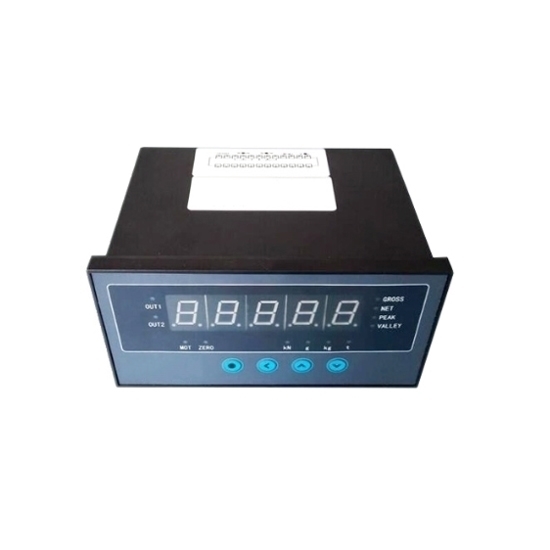

Matched Display Controller	RDDLZ-DDC5-CHB (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30Min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.002%F.S/10℃
Temperature Effect on Output	±0.002%F.S/10℃
Operating Temperature	-20℃~+60℃
Input Resistance	380±4Ω
Output Resistance	350±1Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%FS
Bridge voltage (excitation voltage)	DC 5-15V
Material	Alloy steel
Protection Class	IP67
Cable Length	2m (＜5ton), 5m (≥5ton)
Wiring	EXC+: Green, EXN+: Yellow, SIG+: White, EXC-: Black, EXN-: Blue, SIG-: Red. Shielded wire: Yellow.

Feature

High Precision & Sensitivity: Offers high detection precision and excellent sensitivity, ensuring reliable force measurements.
Durable Construction: Made from 42CrMo alloy steel, known for its high strength and wear resistance, ensuring long-term durability.
Stable Performance: Designed for long-term stability with strong resistance to bias load, suitable for accurate weighing and measurement.
Waterproof & Reliable Signal: Features a 6-point waterproof connector, preventing wire pull-out and ensuring stable signal transmission.
Wide Application: Ideal for platform scales, hopper scales, tank scales, and various other industrial weighing systems with high stability and precision.

Wiring Diagram

Dimensional Drawing

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	F	G	H
500kg/1 ton	133.4	76.2	25.4	16.4	30.7	30	57.9	17
2 ton	136.7	76.2	25.4	16.7	36.8	36.6	57.9	23
3 ton	139.7	79.2	25.4	16.7	39	36.6	57.9	23
5 ton	171.5	95.2	38.1	16.7	42.9	43	73.8	29.4

Capacity	Dimension (mm)
Capacity	K	M	N	P	Q	S
500kg/1 ton	4.8	12.7	22	15.9	3.1	7.7
2 ton	9.5	12.7	22	15.9	3.1	11.7
3 ton	9.5	15	22	15.9	3.1	11.7
5 ton	11	19	34.9	22.2	3.1	11.7

Application

Tips: How do I know if my Cantilever Beam Load Cell is working properly?

To check if your load cell is functioning correctly:

Verify output signal: Ensure the output signal is within the expected range for the applied load.
Perform calibration: Test the accuracy using known reference weights or forces.
Check for physical damage: Inspect for cracks, corrosion, or other signs of wear.
Monitor performance over time: Track consistency and make adjustments if readings become erratic.
