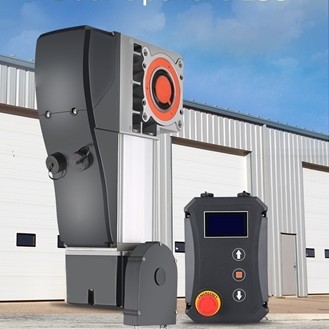

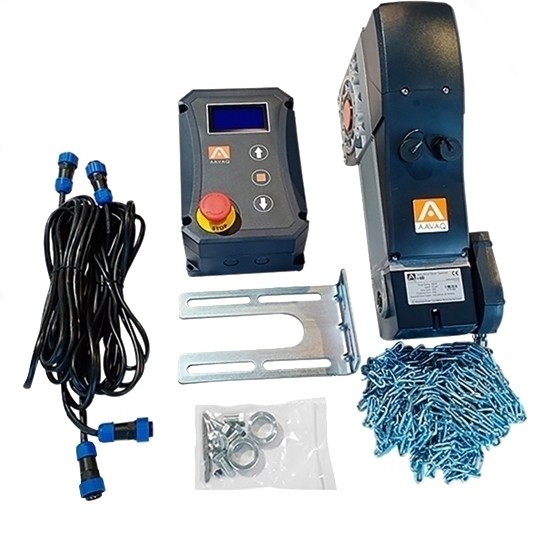

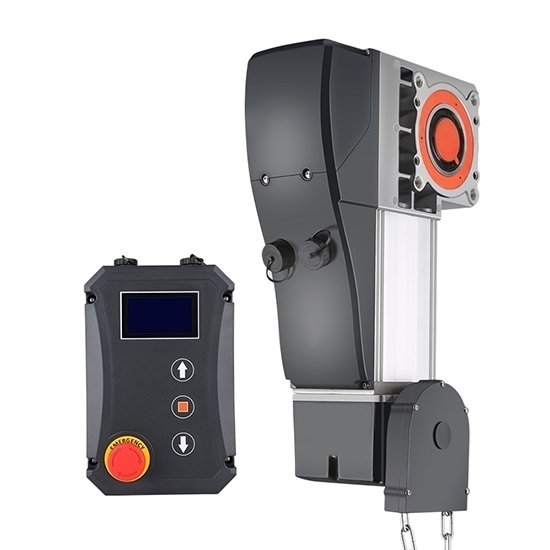

1kW Industrial Door Opener, 150Nm, 55m² Area, 7m

0 reviews • Write a review

from

$2,956.15

Ex Tax: $2,956.15

Stock: In Stock
Model: RDDLZ-OPENER-1000W
Weight: 1.00
SKU: RDDLZ-OPENER-1000W

Available Options

Voltage (AC)

Accessories

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features:

RDDLZ industrial door motor with 1kW, 2.5A start-up current can adjust the speed of the door body in place through the control system to easily protect the door body from damage. The output shaft can rotate up to 19 turns.
This type of door motor has the effect of anti pressure, anti shock and rebound in case of resistance. When the door encounters obstacles during operation, the door will move towards the closing direction, so there is no need to worry about the staff's goods being crushed by the door.
The door motor is also equipped with an emergency button. In case of emergency, pressing the pause key can effectively protect the door body and finance.
RDDLZ provides you with extremely safe and convenient door motor to effectively protect your body and property safety.

Applications:

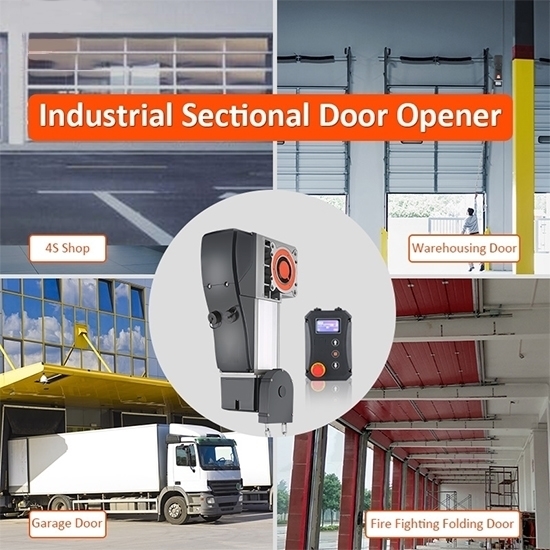

RDDLZ high quality and high performance industrial door motor can be used in fire fighting floding door, 4S shop, storage door and warehousing door.

RDDLZ 1.0Kw Industrial Door Openers Specification:

Model	RDDLZ i-150
Rated Torque	150N.m
Maximum Door Area	55m²
Maximum Lift Height	7m
Power Rating	1.0kW
Rated Current	4.55A
Nominal Input Voltage	220V AC ± 10%, 50/60Hz
Start-up Current	2.5A
Manual Release Upon Power Failure	Pull-rope release
Duty Cycle	20% (Maximum Runtime Not Exceed 10min)
Rated Speed	22rpm
Maximum Turns	18
Output Shaft Hole Diameter	25.4mm / Customize
Maximum Travel	19 rounds rotation of output shaft
Operating Temperature	-20°C to +45°C
Noise Level	＜50dB
Degree of Protection	IP54
Slow Start / Stop Function	Yes
Safety Obstruction Sensing	Yes

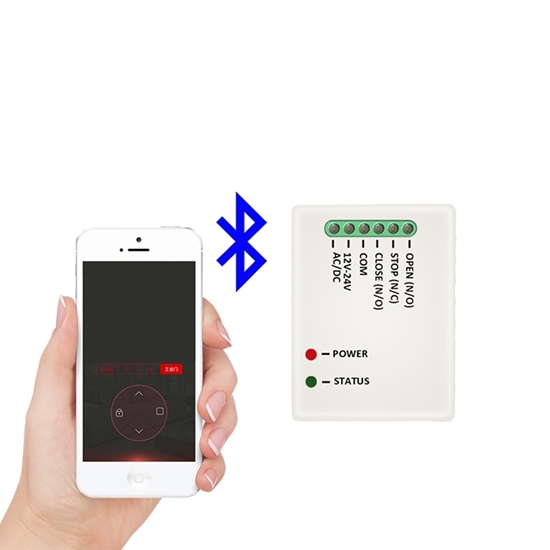

Connect to APPLink Smartphone Controller	Available
Insulation Level	F
Maximum Surface Temperature	80°
Weight	19.8kg

RDDLZ 1.0Kw Industrial Door Opener Dimension (Unit=mm)

Tips: What are the installation requirements?

1kW industrial door opener is properly balanced and aligned. The door does not rise or fall by itself whenstopped at any position.
The door can easily be opened or closed manually by applying only minimum forcewith one hand.
Lifting hight of the door shall not exceed 5m (for i-60 and h-60) or 7m (for i-110 and i-150).
This product must be installed by a qualified installer in accordance with all applicablecodes and standards.
Instructions in this manual must be understood and be followed thoroughly.
Children or disabled persons are not allowed to operate this product.
Violation of any of the above mentioned requirements will lead to immediatetermination of all warranty terms.
