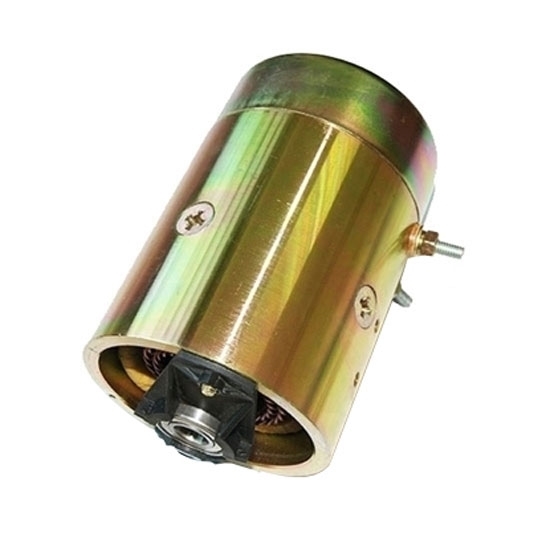

3 Hp (2.2 KW) 24V Hydraulic Pump Motor, 2600rpm

3 Hp (2.2 KW) 24V Hydraulic Pump Motor, 2600rpm
3 Hp (2.2 KW) 24V Hydraulic Pump Motor, 2600rpm
from
$489.86
Ex Tax: $489.86
  • Stock: In Stock
  • Model: RDDLZ-HM-MDW1242
  • Weight: 1.00
  • SKU: RDDLZ-HM-MDW1242

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

24V hydraulic pump motor is 2.2 kW (2 hp), high rated torque 6.6Nm, 2600rpm rated speed, it can be used in lippert leveling systems, oil pump, dump trailer and winter vechicle.

Specifications

ModelRDDLZ-HM-MDW1142
Rated Voltage24V
Power2.2 kW
Rated Current140A
Ratation Speed2600 RPM
Ratation DirectionCCW
Torque6.6 Nm
Protection DegreeIP54
DutyS2=1.2 MIN S3=4.5%ED
Weight8 kg
Warranty12 Months

Dimension (Unit=mm)

Torque Curve

Applications



Details


Tips: Type of Motor
Divided by working power type: can be divided into DC motor and AC motor.
DC motors can be divided according to structure and working principle: brushless DC motor and brushed DC motor.
Brushed DC motors can be divided into: permanent magnet DC motors and electromagnetic DC motors.
