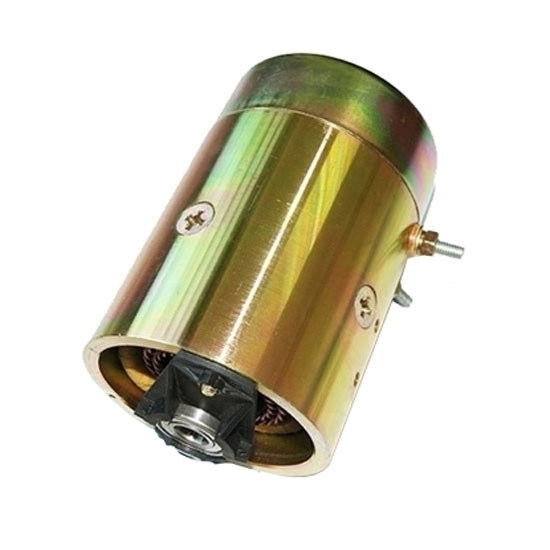

2 Hp (1.6 KW) 12V Hydraulic Pump Motor, 2600rpm

2 Hp (1.6 KW) 12V Hydraulic Pump Motor, 2600rpm
2 Hp (1.6 KW) 12V Hydraulic Pump Motor, 2600rpm
from
$489.86
Ex Tax: $489.86
  • Stock: In Stock
  • Model: RDDLZ-HM-MDW1142
  • Weight: 1.00
  • SKU: RDDLZ-HM-MDW1142

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 hp DC motor at a low price, high torque motor rated speed is 2600rpm, 5.4Nm, 12V hydraulic pump motor for dump trailer, RDDLZ hydraulic pump motors for a wide range of hydraulic applications and systems.

Specifications

ModelRDDLZ-HM-MDW1142
Rated Voltage12V DC
Power1.6 kW
Rated Current200A
Ratation Speed2600 RPM
Ratation DirectionCW
Torque5.4 Nm
Protection DegreeIP54
DutyS2=2 MIN S3=7.5%ED
Weight8 kg
Warranty12 Months

Dimension (Unit=mm)

Torque Curve

Applications

Details

Tips: What is Hydraulic Pump Motor?
The hydraulic pump motor is an actuator of the hydraulic system, which converts the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft. Liquids are agents of transfer and motion.
