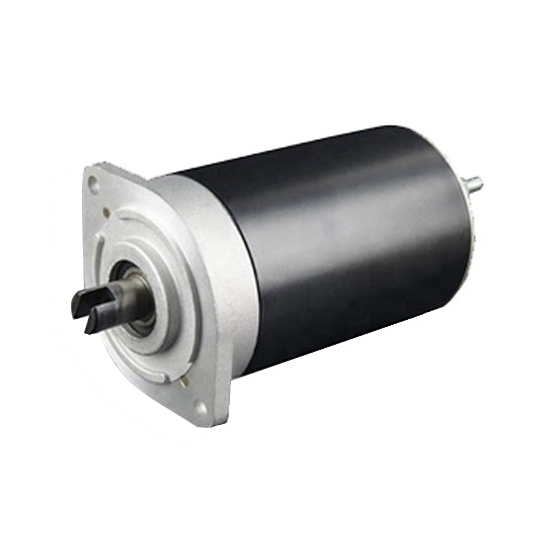

12V 800W Hydraulic Pump Motor, 4000rpm

0 reviews • Write a review

from

$489.86

Ex Tax: $489.86

Stock: In Stock
Model: RDDLZ-HM-MD8018
Weight: 1.00
SKU: RDDLZ-HM-MD8018

Available Options

Short Description

Voltage (DC)

Starter Switch

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12V/24V 800w hydraulic pump motor for sale, 4000RPM, rated torque of 3Nm, 110 amps rated current. RDDLZ hydraulic pump motor for a variety of hydraulic applications and systems.

Specifications

Model	RDDLZ-HM-MD8018
Rated Voltage	12V / 24V DC
Power	800W
Rated Current	12V 110A, 24V 50A
Ratation Speed	4000 RPM
Ratation Direction	CW
Torque	3 Nm
Protection Degree	IP54
Duty	S2=4 MIN S=10%ED
Weight	3 kg
Warranty	12 Months

Dimension (Unit=mm)

Torque Curve

Applications

Details

Tips: The Role of The Hydraulic Pump Motor

In the hydraulic transmission system, the hydraulic pump is a power component of the hydraulic transmission system, and is an energy conversion device that converts mechanical energy input by a prime mover (such as a motor) into liquid pressure energy. It belongs to the power component in the hydraulic transmission system and is an important part of the hydraulic transmission system. Its function is to provide pressure oil to the hydraulic system.
