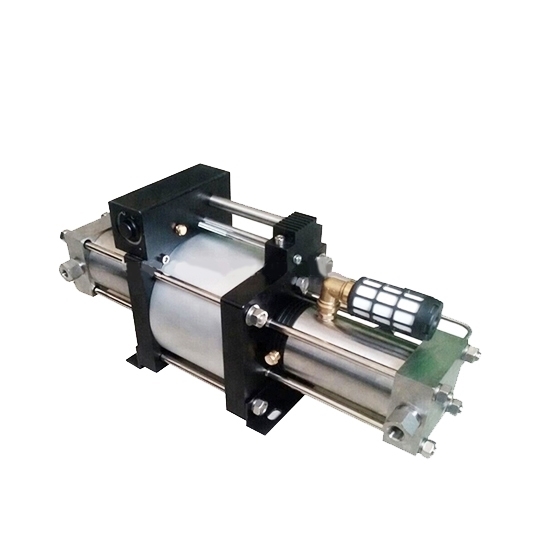

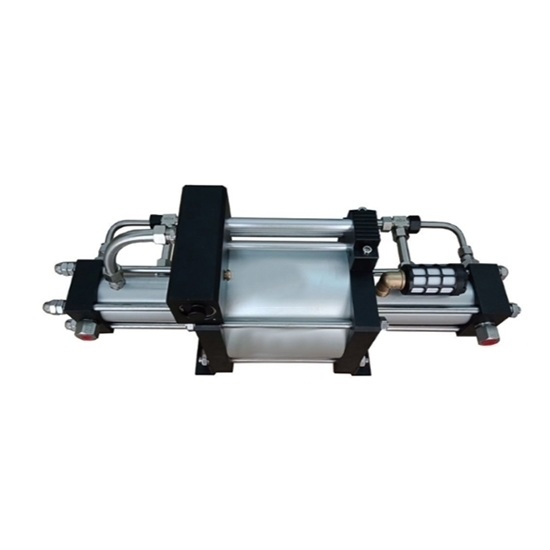

10:1 Air Pressure Booster, 3.5-80 Bar (50-1160 Psi)
from
$3,595.23
Ex Tax: $3,595.23
- Stock: In Stock
- Model: RDDLZ-APB-10:1
- Weight: 1.00
- SKU: RDDLZ-APB-10:1
RDDLZ 10: 1 air booster with high pressure, pneumatic power, air driven fuel and oil-free. Formula to calculate gas outlet pressure PB is 10Pa+ Pi, connection: gas Inlet / gas outlet PT thread 3/8".
Features:
- Compressed air driven no electricity required (connect to normal air compressor).
- ln order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar.
- No airline lubricator required.
- Hydrocarbon free separation between air and gas sections pressures to 80Mpa (11,600psi).
- Wide range of models with different ratios
- Built in cooling on most models.
Specification:
| Mode | RDDLZ-DGD-10 |
| Pressure boost ratio | 10:1 |
| Min. gas Inlet pressure PA | 3.5 bar |
| Max.gas Inlet pressure PA | 80 bar |
| Max. gas outlet pressure PB | 80 bar |
| Drive piston diameter | 160mm |
| Driven air pressure PL | 2 bar- 8 bar |
| Max. driving air pressure | 10 bar |
| Formula to calculate gas outlet pressure PB | 10XPA+ Pi |
| Connection: Gas Inlet / Gas outlet (PT thread) | PT 3/8" (Default PT thread, please contact us if NPT thread is required) |
| Driven Airinlet Port | G 1/2" (Default G thread, please contact us if NPT thread is required) |
| Max. flow at driven air pressure of 6 bar | 410 L/min (at PA of 6 bar) |
| Weight | 25kg |

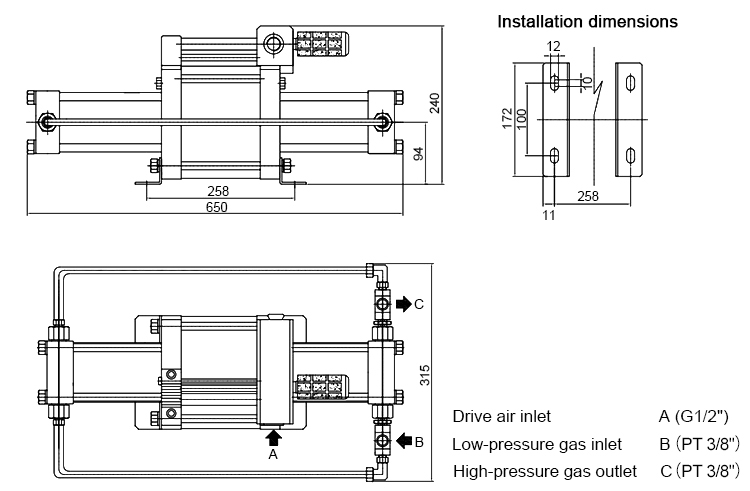

Dimension: (unit:mm)

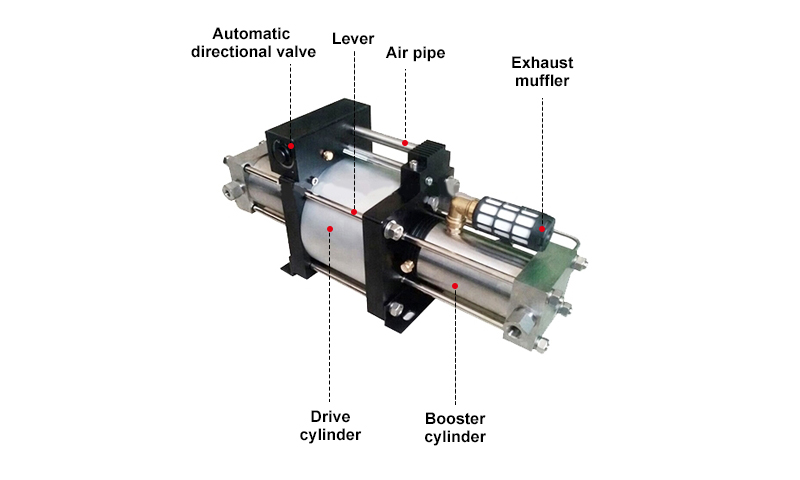

Details
Tips: Where are RDDLZ air pressure booster application scenarios？
- Pressure test with gas transfer and filling.
(Ar/ He/ H2/ O2/ N2ICO2/ NO2/ CH4/ C2H2/ LNG/ ILPG/ CNG/ FM200/ SF6/ H2S etc.) - Charging of gas cylinder and accumulator with nitrogen.
- Supply for isolating gas systems.
- Gas assisted injection molding
- Transfer of oxygen cylinders
- Charging of breathing air bottles.
