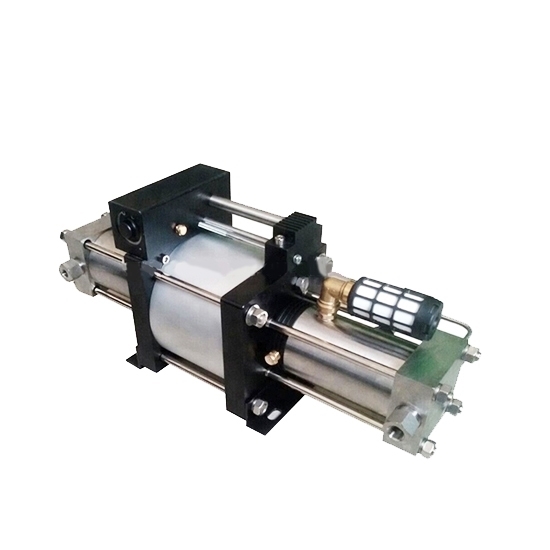

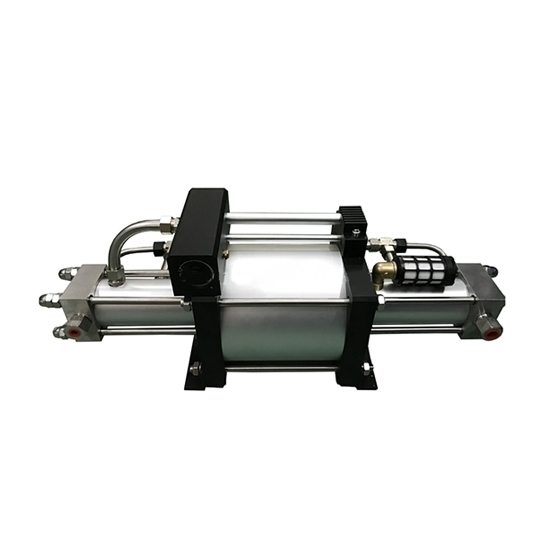

15:1 Air Pressure Booster, 5-120 Bar (72-1740 Psi)

0 reviews • Write a review

from

$4,056.76

Ex Tax: $4,056.76

Stock: In Stock
Model: RDDLZ-APB-15:1
Weight: 1.00
SKU: RDDLZ-APB-15:1

Available Options

Textarea

Gas Inlet/Outlet Thread Type

Driven Air Inlet Port Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10: 1 Air pressure booster, 5-120 bar (72- 1740 psi) with 410 L/ min maximum flow at driven air pressure of 40 bar, 160mm drive piston diameterl. RDDLZ air driven gas boosters provide for pressures up to 80 Mpa. Used for oil freecompression not only of air or Nitrogen, but also flammable and risk gases like hydrogen, oxygeand natural gas.

Specification:

Model	RDDLZ-DGD-15
Pressure boost ratio	15:1
Min. gas Inlet pressure PA	5 bar
Max.gas Inlet pressure PA	120 bar
Max. gas outlet pressure PB	120 bar
Drive piston diameter	160mm
Driven air pressure PL	2 bar- 8 bar
Max. driving air pressure	10 bar
Formula to calculate gas outlet pressure PB	15XPL+ PA
Connection: Gas Inlet / Gas outlet (PT thread)	PT 3/8" (Default PT thread, please contact us if NPT thread is required)
Driven Airinlet Port	G 1/2" (Default G thread, please contact us if NPT thread is required)
Max. flow at driven air pressure of 6 bar	350 L/min (at PA of + 6bar)
Weight	25kg

Applications:

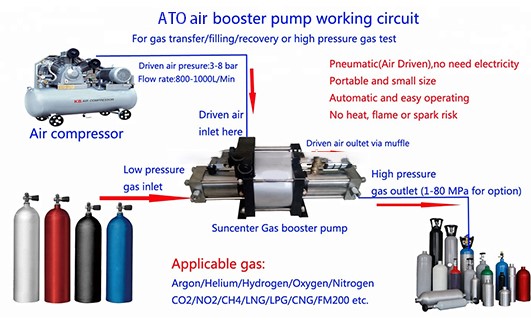

RDDLZ 15: 1 air pressure booster is widly used by pressure test with gas/air gas transfer and filling (Air/ Argon/ Helium/ Hydrogen/ Oxygen/ Nitrogen/ CO22/ CH4/ LNG/ LPG/ CNG/ FM200 etc. )
Charging of gas cylinder and accumulator with nitrogen. Nitrogen gas spring charging. Supply for isolating gas systems gas assisted injection molding transfer of oxygen cylinders charging of breathing air bottles leak test.
Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, bops, gas bottles and air craft components safety valve adjusting.

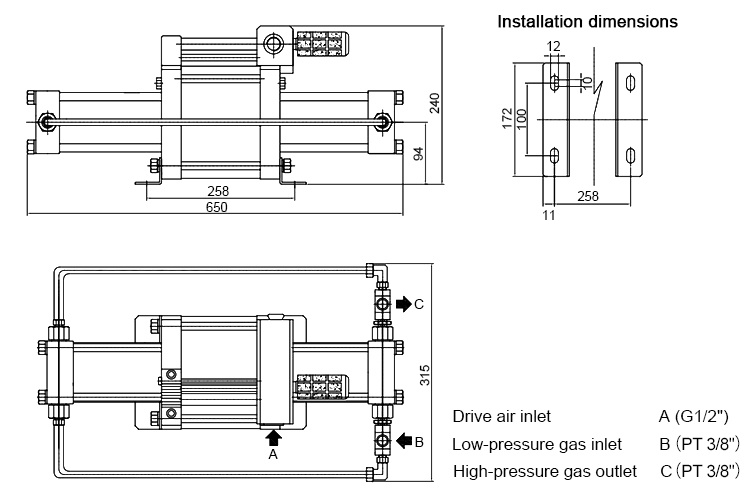

Dimensions (Unit: mm)

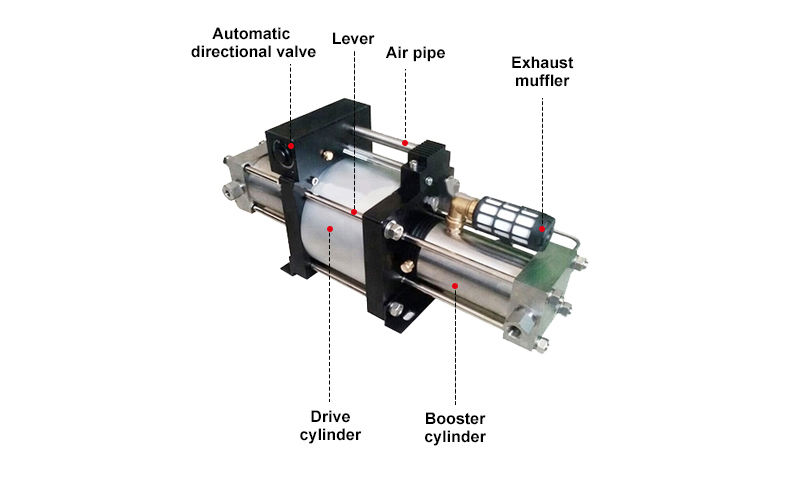

Details

Tips: What place is suitable for 15: 1 Air Pressure Booster？

Power of steel connector.
Performance test and calibration of static and dynamic test instruments and instruments for aerospace accessories.
Water injection from high pressure cleaning and water cutting equipment to transport fluid in dangerous areas.
Clamping power of lubricating system oil filling valve of mechanical equipment.
Press in the sleeve liner and press out the power control ground safety valve and underground safety valve.
