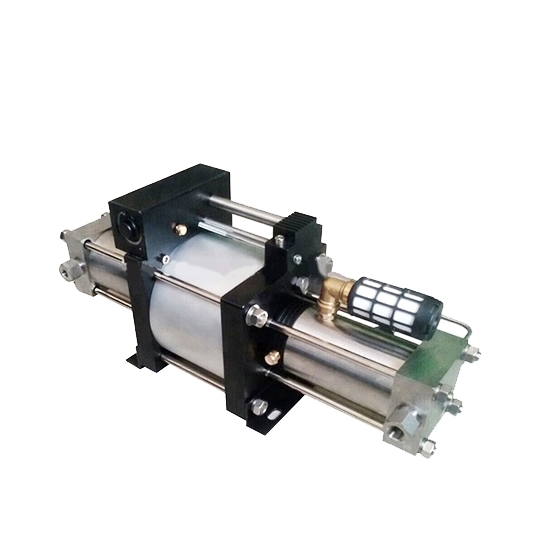

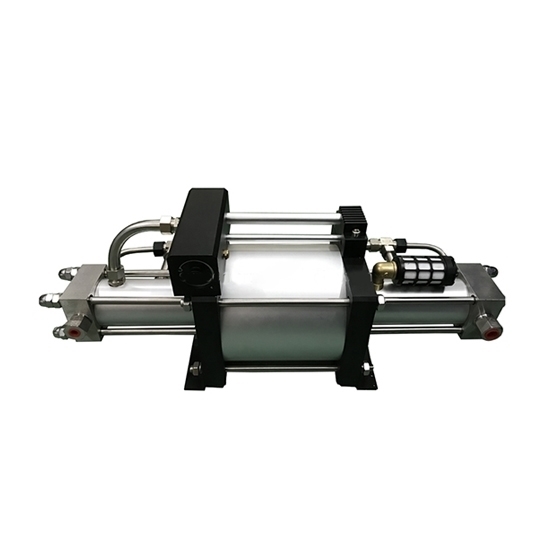

25:1 Air Pressure Booster, 10-200 Bar (145-2900 Psi)

0 reviews • Write a review

from

$4,409.07

Ex Tax: $4,409.07

Stock: In Stock
Model: RDDLZ-APB-25:1
Weight: 1.00
SKU: RDDLZ-APB-25:1

Available Options

Textarea

Gas Inlet/Outlet Thread Type

Driven Air Inlet Port Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

25: 1 Air pressure booster, 10-200 bar (145- 2900 psi) with maximum outlet pressure is 200 bar, driven air pressure is 2 bar- 8 bar. Formula to calculate gas outlet pressure is 25XPL+ PA.

Specification:

Model	RDDLZ-DGD-25
Pressure boost ratio	25:1
Min. gas Inlet pressure PA	10 bar
Max.gas Inlet pressure PA	200 bar
Max. gas outlet pressure PB	200 bar
Drive piston diameter	160mm
Driven air pressure PL	2 bar- 8 bar
Max. driving air pressure	10 bar
Formula to calculate gas outlet pressure PB	25XPL+ PA
Connection: Gas Inlet / Gas outlet (PT thread)	PT 1/4" (Default PT thread, please contact us if NPT thread is required)
Driven Airinlet Port	G 1/2" (Default G thread, please contact us if NPT thread is required)
Max. flow at driven air pressure of 6 bar	396 L/min (at PA of 20 (bar)
Weight	25kg

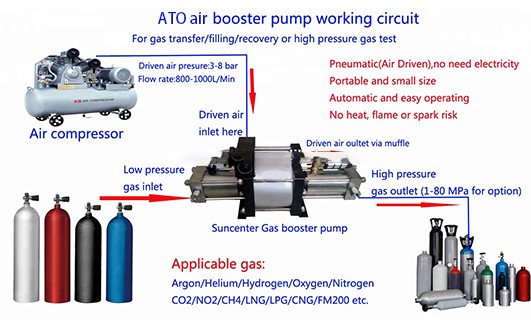

Applications:

RDDLZ 25: 1 air pressure booster pressure is widly used by pressure test with gas/ air gas transfer and filling (Air/ Argon/ Helium/ Hydrogen/ Oxygen/ Nitrogen/ CO22/ CH4/ LNG/ LPG/ CNG/ FM200 etc. )
Charging of gas cylinder and accumulator with nitrogen. Nitrogen gas spring charging. Supply for isolating gas systems gas assisted injection molding transfer of oxygen cylinders charging of breathing air bottles leak test.
Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, bops, gas bottles and air craft components safety valve adjusting.

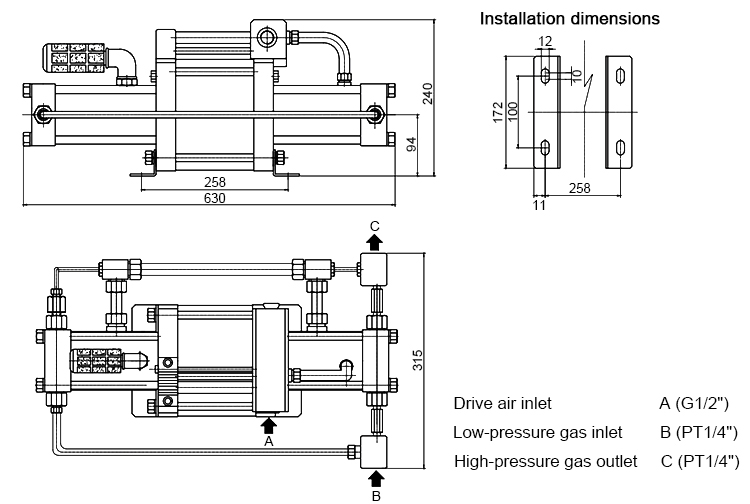

Dimensions (Unit: mm)

Details

Tips: How to Select RDDLZ Air Boosters/ Systems?

In order to choose suitable booster pump or systems for you, please kindly reply us the following questions:

What is your present gas pressure? ( ) bar
What is your gas?oxygen gas, nitrogen gas or other gases?
What outlet gas pressure do you want? ( ) bar
What driven air pressure of your air compressor can you offer? ( ) bar, because our booster is completely air operated and no need any electricity.
What outlet gas flow rate do you need? ( ) L/min
