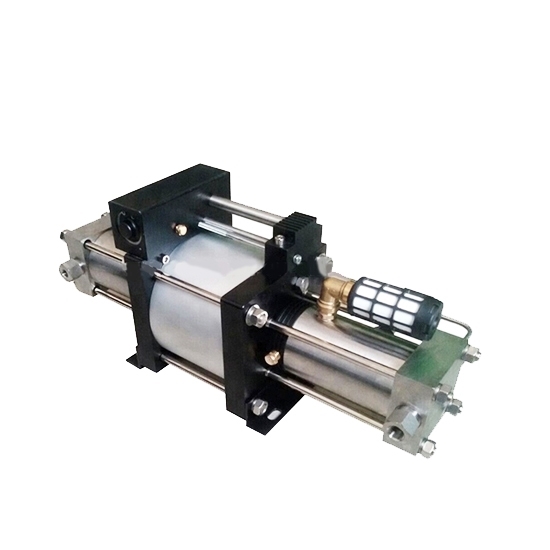

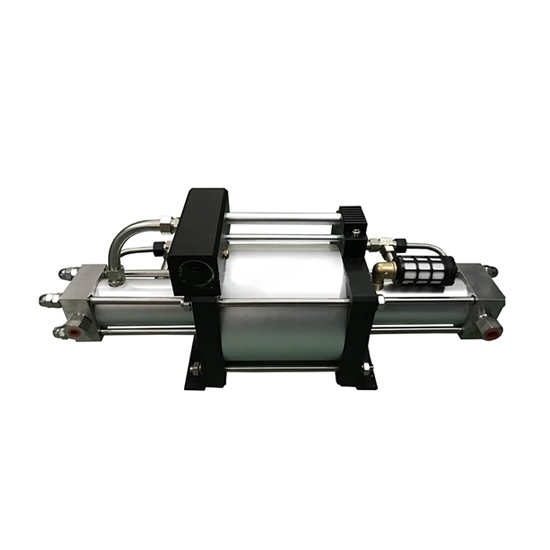

40:1 Air Pressure Booster, 15-320 Bar (217- 4641 Psi)

0 reviews • Write a review

from

$4,747.53

Ex Tax: $4,747.53

Stock: In Stock
Model: RDDLZ-APB-40:1
Weight: 1.00
SKU: RDDLZ-APB-40:1

Available Options

Textarea

Gas Inlet/Outlet Thread Type

Driven Air Inlet Port Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40:1 air pressure booster, 125-320 bar (217- 4641 psi) with 320 L/ min maximum flow at driven air pressure of 40 bar, 160mm drive piston diameterl. The gas booster pump adopts a single gas control non-equilibrium gas distribution valve to realize the reciprocating motion of the pump. All the pumps are made of aluminum alloy and stainless steel.

Specification:

Model	RDDLZ-DGD-40
Pressure boost ratio	40:1
Min. gas Inlet pressure PA	15 bar
Max.gas Inlet pressure PA	320 bar
Max. gas outlet pressure PB	320 bar
Drive piston diameter	160mm
Driven air pressure PL	2 bar- 8 bar
Max. driving air pressure	10 bar
Formula to calculate gas outlet pressure PB	40XPL+ PA
Connection: Gas Inlet / Gas outlet (PT thread)	PT 1/4" (Default PT thread, please contact us if NPT thread is required)
Driven Airinlet Port	G 1/2" (Default G thread, please contact us if NPT thread is required)
Max. flow at driven air pressure of 6 bar	320 L/min (at PA of 40 bar)
Weight	25kg

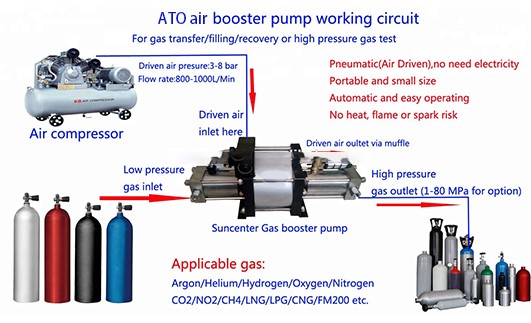

Applications:

RDDLZ 40: 1 air pressure booster is widly used by pressure test with gas/ air gas transfer and filling (Air/ Argon/ Helium/ Hydrogen/ Oxygen/ Nitrogen/ CO22/ CH4/ LNG/ LPG/ CNG/ FM200 etc. )
Charging of gas cylinder and accumulator with nitrogen. Nitrogen gas spring charging. Supply for isolating gas systems gas assisted injection molding transfer of oxygen cylinders charging of breathing air bottles leak test.
Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, bops, gas bottles and air craft components safety valve adjusting.

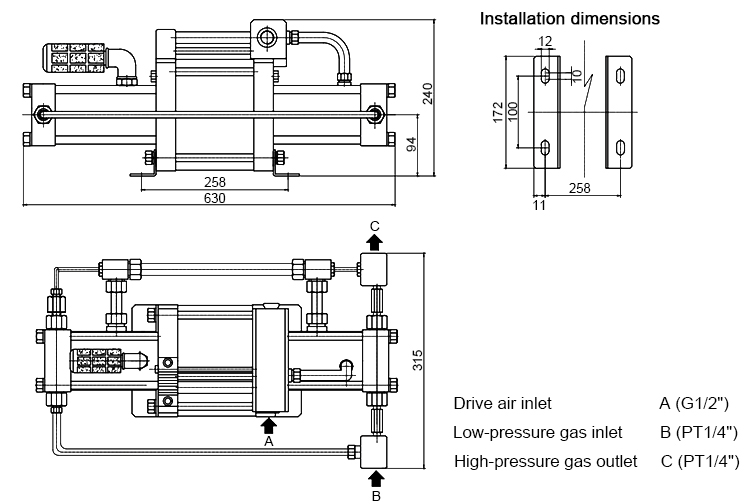

Dimensions (Unit: mm)

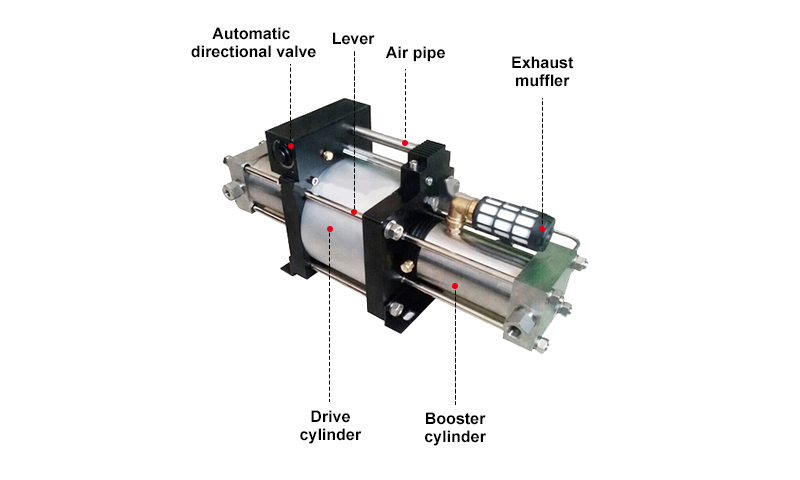

Details

Tips: What are the Features of RDDLZ 40:1 Air Pressure Booster?

RDDLZ 40:1 air pressure booster it is driven by compressed air and does not require electricity when connected to a common air compressor.
In order to prolong the service life of the pump, the driving air pressure should not be higher than 8 bar.
No air lubricator is required.
When the pressure reaches 80 MPa (11600 psi), there is no separation between the hydrocarbon free air and gas parts
Every air booster is built in cooling system.
