Micro Load Cell, Button Type, 5kg/100kg/200kg/300kg/500kg/1000kg

0 reviews • Write a review

from

$144.97

Ex Tax: $144.97

Stock: In Stock
Model: RDDLZ-LC-BU04
Weight: 1.00
SKU: RDDLZ-LC-BU04

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

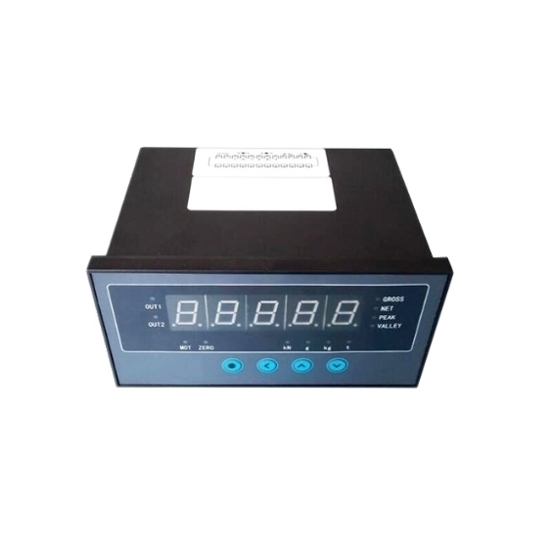

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

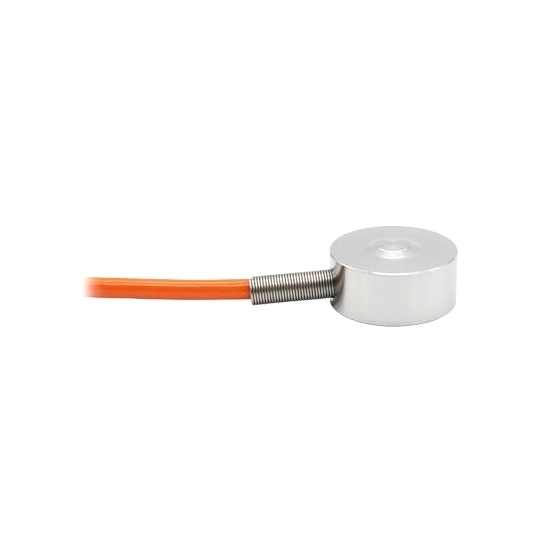

A micro load cell is a commonly used measuring tool that converts weight into electrical signal output to facilitate accurate weighing and measurement. The sensor features stainless steel construction and is based on strain measurement technology with an accuracy of up to 0.3 F.S. Micro load cells have capacity range from 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg to 1000kg. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCBU-DYHW-120
Shipping Weight	1.5kg
Capacity Range *	5~1000kg
Matched Display Controller	RDDLZ-DDC5-CHB (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.3%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±10%mV/V (Low range variations may differ)
Creep	±0.03%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.1%F.S/10℃
Temperature Effect on Output	±0.1%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	1000Ω
Output Impedance	1000Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-10V
Material	Stainless steel
Protection Class	IP66
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Compact & Durable: Small, versatile design with robust 17-4 PH stainless steel construction for easy integration and long-term strength.
High Precision: Delivers consistent, accurate measurements with a reliable sensing chip.
Stable Performance: Withstands harsh conditions, offering long-lasting, dependable results.
Easy Setup: Quick, hassle-free installation with superior wiring for durable signal transmission.

Dimension (unit: mm)

Wiring Method

Application

Tips: What are common failures of the Compression Button Load Cell?

Common failures include:

Signal instability: This can be caused by damaged cables, loose connectors or power fluctuations.
Zero drift: This can be caused by prolonged use, overload or temperature changes.
Sensor damage: Excess load or physical shock may cause damage to the sensor.
