4-wire Nema 17 Bipolar Stepper Motor, 6V 0.8A, 1.8 Degree

0 reviews • Write a review

from

$66.46

Ex Tax: $66.46

Stock: In Stock
Model: RDDLZ-STEP-471708
Weight: 1.00
SKU: RDDLZ-STEP-471708

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

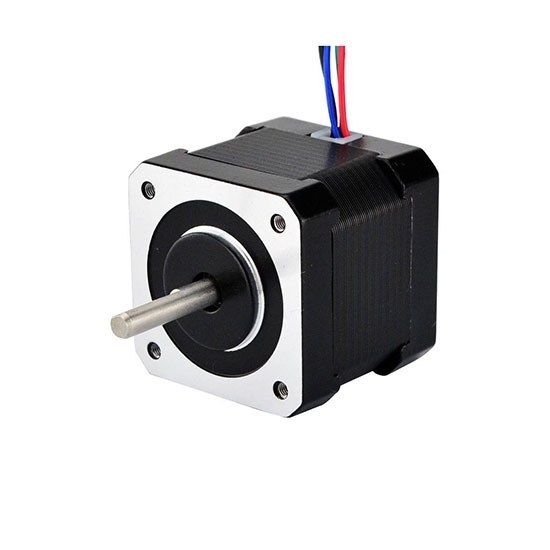

4-wire Nema 17 bipolar stepper motor, 6V 0.8A, with 1.8 degree step angle for smooth motion and a nice holding torque, perfect for many applications.
Specifications

Electrical Specification	Model	RDDLZ47-0804A
	Step Angle	1.8°
	Holding Torque	3.17kg-cm (44oz-in)
	Voltage	6V
	Rated Current/phase	0.8A
	Phase Resistance	7.5Ω
	Inductance	10mH
	Rotor Inertia	68g-cm2
Physical Specification	Frame Size	42 x 42mm
	Length	47mm
	Shaft Diameter	Φ5mm
	Shaft Length	22mm
	Motor Leads	4
	Weight	0.35kg
Technical Parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g
Quality Assurance	Warranty Period	12 months
Quality Assurance	Certificate	CE, ROHs, ISO/SGS9001

Nema 17 Stepper Motor Dimension (Unit=mm)

L1=24mm, Lmax=47mm

Nema 17 Stepper Motor Wiring DiagraTips: What is phase number of stepper motor
Phase number of stepper motor indicates the winding number inside the motor. At the present, 2-phase, 3-phase, 4-phase and 5-phase stepper motors are common. Due to the difference in motor phase number, there is also difference in stepping angle. In general, the stepping angle of 2-phase motor is 0.9°/1.8°, that of 3-phase 1.2° and that of 5-phase 0.36°/0.72°. If subdivided driver is not available, the requirement of stepping angle is mainly satisfied by relying on choosing the stepper motors of different phases. By contrast, if subdivided driver is available, "the phase number" will become meaningless. At this time, it is only necessary to change subdivision number on the driver to change the stepping angle.
