Micro Load Cell, S Type, 5N/500N/1000N, 1kg/10kg/30kg/200kg

0 reviews • Write a review

from

$177.78

Ex Tax: $177.78

Stock: In Stock
Model: RDDLZ-LC-S04
Weight: 1.00
SKU: RDDLZ-LC-S04

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

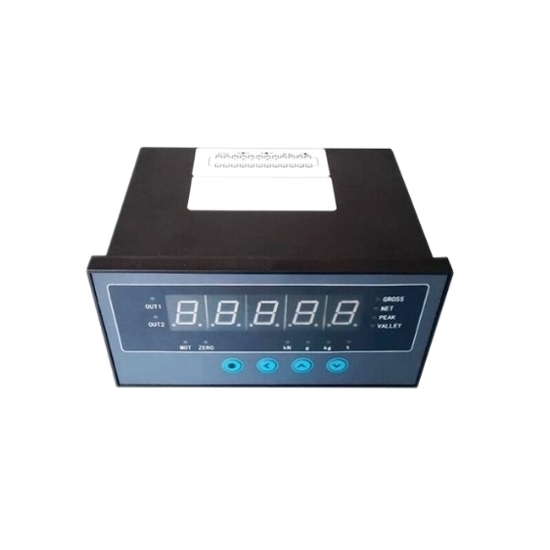

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

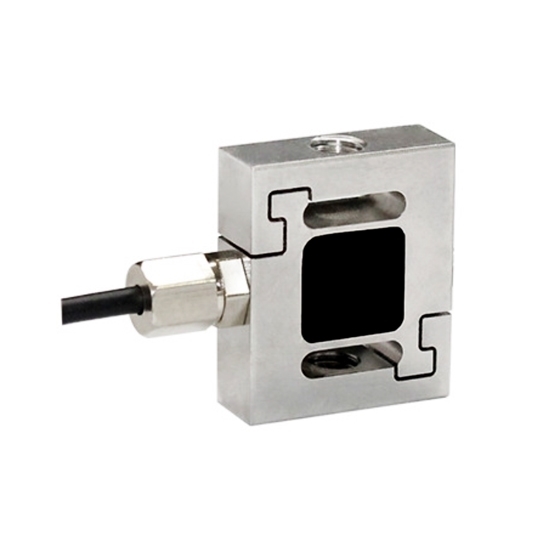

S type tension and compression load cells have capacity range from 0.5kg, 1kg, 5kg, 10kg, 30kg to 200kg (5N to 2000N). Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCS-DYLY-108
Weight	0.1kg
Capacity Range *	0kg~200kg (0~2000N)
Matched Display Controller	RDDLZ-DDC5-CHB (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.2mV/V (Low range variations may differ)
Creep	±0.05%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	350±30Ω
Output Impedance	350±5Ω
Insulation Resistance	≥5000MΩ/DC 100V
Safety Overload	150%F.S
Ultimate Overload	300%F.S
Bridge Voltage (excitation voltage)	DC 5V
Maximum Bridge Voltage	DC 15V
Material	17-4PH stainless steel
Protection Class	IP66
Cable Length	1.5m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Premium 17-4PH Stainless Steel: Made from high-quality 17-4PH stainless steel, resistant to corrosion and fatigue, ensuring long-lasting durability.
High-Precision Measurement: Designed for high accuracy, capable of working in extreme temperatures (high/low) and high-pressure environments.
Bidirectional Force Measurement: Convenient for both tension and compression force measurement, suitable for a variety of applications.
Easy Installation: Simple installation with stable performance, featuring high sensitivity for precise measurements.
Durable and Reliable: Strong fatigue resistance and robust construction for extended service life.

Dimension

Capacity		Dimension (mm)
N	kg	M	H	A	B
5, 10, 20, 30, 50, 100	0.5, 1, 2, 3, 5, 10	M3	5	16	19.1
200, 300, 500	20, 30, 50	M4	6	16	19.1
250, 300, 500, 1000, 2000	25, 30, 50, 100, 200	M8	14	26	40

Wiring Method

Tips: What is the primary use of the S Type Micro Load Cell?

The S Type Micro Load Cell is primarily used to measure force and weight with high precision. It is an ideal solution for applications that require accurate measurements of either tensile (pulling) or compressive (pushing) forces. Typical applications include:

Material Testing: Used in laboratories to test the strength of materials and evaluate their properties under various forces.
Industrial Machinery: Helps in monitoring forces in machines, ensuring that loads are within safe operational limits.
Robotics: Can be used in robotic arms for force feedback, enabling precise movements and actions.
Force Gauges: Often used in handheld or benchtop force gauges for measuring and displaying force exerted on an object.
