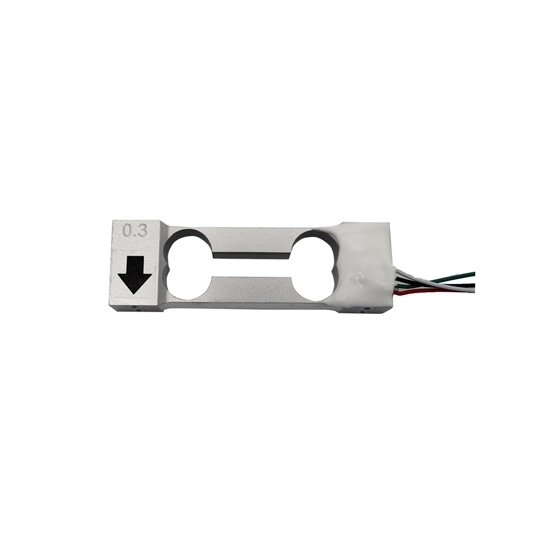

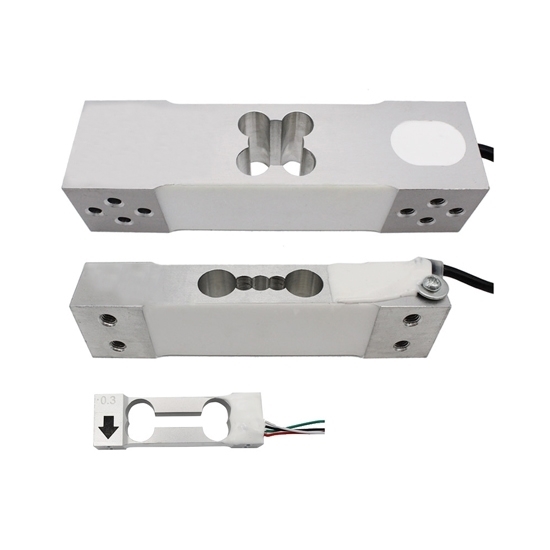

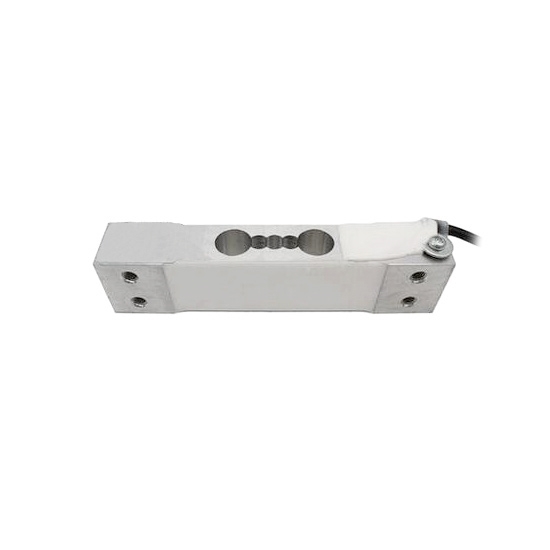

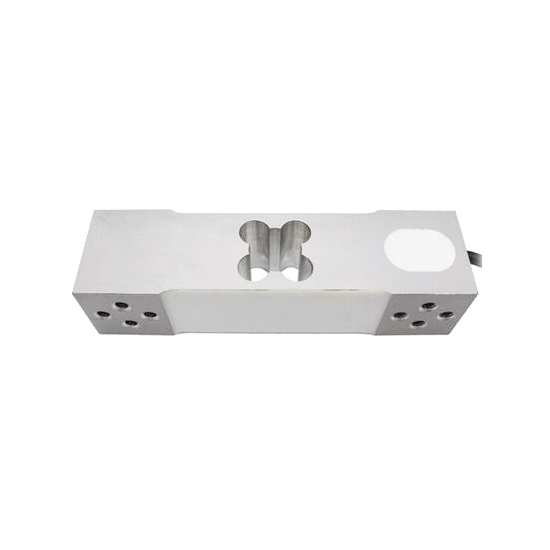

Single Point Load Cell, 300g/1kg/3kg/ 10kg/60kg/100kg/200kg To 500kg

0 reviews • Write a review

from

$79.89

Ex Tax: $79.89

Stock: In Stock
Model: RDDLZ-LC-SP01
Weight: 1.00
SKU: RDDLZ-LC-SP01

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Single point load cells have capacity range from 300g, 600kg, 1kg, 2kg, 5kg, 10kg, 40kg, 100kg to 500kg. Load cell capacity can be customized according to customer requirements. RDDLZ high-accuracy single load cells are a low-cost, ideal choice for force and weight measurement in industries. With their extensive capacity range, they are versatile and applicable to a diverse array of uses.

Specification

Model	RDDLZ-S-LCB-DYX-306
Weight	0.1~0.6kg
Capacity Range *	300g~500kg

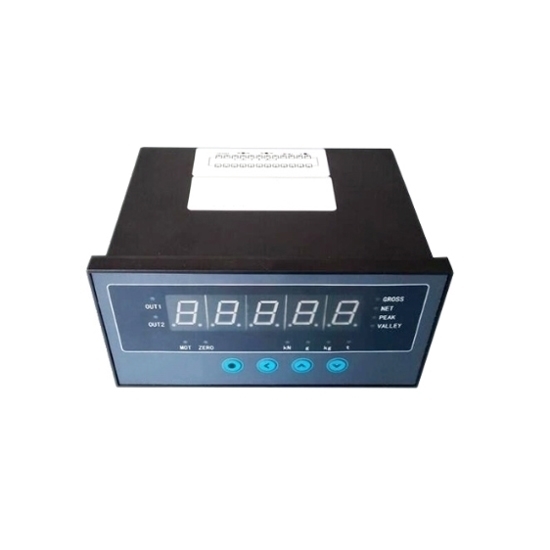

Matched Display Controller	RDDLZ-DPM-LC5D (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.5mV/V (Low range variations may differ)
Creep	±0.03%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.03%F.S/10℃
Temperature Effect on Output	±0.03%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	350±20Ω
Output Impedance	350±5Ω
Insulation Resistance	≥5000MΩ/DC 100V
Safety Overload	150%F.S
Ultimate Overload	300%F.S
Bridge Voltage (excitation voltage)	DC 10V
Maximum Bridge voltage (excitation voltage)	DC 15V
Material	2A12-T4 aluminum alloy
Protection Class	IP67
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High Precision Weighing: Features waterproof sealing, a wide measurement range, and stable performance. Suitable for various industrial automation weighing systems.
High Precision and Stable Performance: Easy to install, ideal for platforms, belt scales, and hoppers in industries like chemicals, pharmaceuticals, and food.
2A12-T4 Alloy Material: Strong fatigue resistance, excellent transparency, high strength, corrosion and heat-resistant.
Small Size and High Precision: Precision better than 0.03%, compact design, and long-term stable performance.

Dimension (unit: mm)

Single Point Load Cell Mounting Diagram

Wiring Method

Application

Tips: Single point parallel beam load cell features
In order to keep up with the development speed of the electronic pricing scale, the single point load cell should not only has the characteristics of high sensitivity and high rigidity, but also meet the requirements of short positioning time, strong anti-interference ability, good stability, etc. In addition, load cell is applicable to change for different capacities of electronic pricing scales. The RDDLZ parallel beam load cell has the advantages of reducing the swing of the scale pan, short positioning time, stable and fast reading, and low-capacity anti-overload. In the future, parallel beam load cells will be more widely used in small electronic scales such as commercial or household electronic human health scales and electronic kitchen scales.
