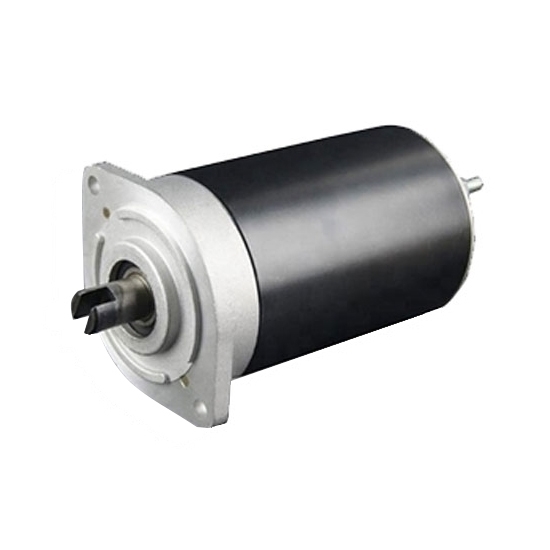

12V 500W Hydraulic Pump Motor, 2500rpm

0 reviews • Write a review

from

$489.86

Ex Tax: $489.86

Stock: In Stock
Model: RDDLZ-HM-MD8015
Weight: 1.00
SKU: RDDLZ-HM-MD8015

Available Options

Short Description

Starter Switch

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic pump motor for dump trailer, 12V DC motor, 2Nm rated torque, rated speed with 2500rpm, 500W. High efficiency, low price and manufacturer direct sale.

Specifications

Model	RDDLZ-HM-MD8015
Rated Voltage	12V DC
Power	500W
Rated Current	70A
Ratation Speed	2500 RPM
Ratation Direction	CW
Torque	2 Nm
Protection Degree	IP54
Duty	S2=4 MIN S=10%ED
Weight	3 kg
Warranty	12 Months

Dimension (Unit=mm)

Hydraulic Pump Motor Torque Curve

Applications

Details

Tips: Types of Hydraulic Pumps
1. According to whether the flow can be adjusted can be divided into: variable pump and quantitative pump. The output flow can be adjusted as needed, called the variable pump, and the flow cannot be adjusted, called the fixed pump.
2. According to the pump structure commonly used in hydraulic systems, it is divided into three types: gear pump, vane pump and plunger pump.
Gear pump: The volume is small, the structure is simple, the cleanliness of the oil is not strict, and the price is cheaper; but the pump shaft is unbalanced, the wear is serious, and the leakage is large.
Vane pump: divided into double-acting vane pump and single-acting vane pump. The pump has uniform flow, stable operation, low noise, high pressure and volumetric efficiency compared to the gear pump, and the structure is more complicated than the gear pump.
