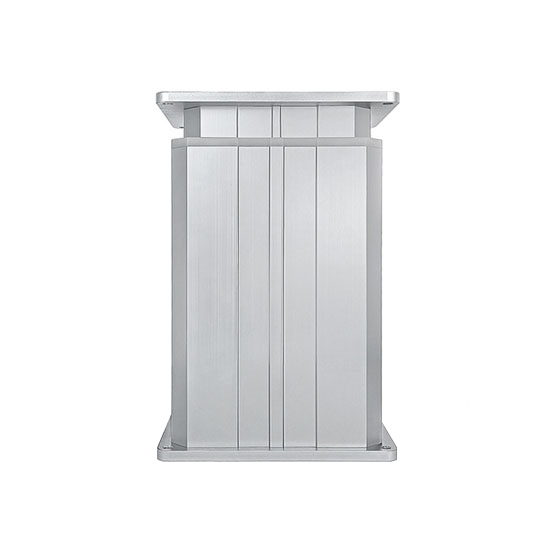

Telescopic Lifting Column For Furniture, 12V/ 24V/ 36V/ 48VDC, 10000N

0 reviews • Write a review

from

$382.54

Ex Tax: $382.54

Stock: In Stock
Model: RDDLZ-LC-HTA2
Weight: 1.00
SKU: RDDLZ-LC-HTA2

Available Options

Short Description

Rated Voltage

Capacity

Stroke

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

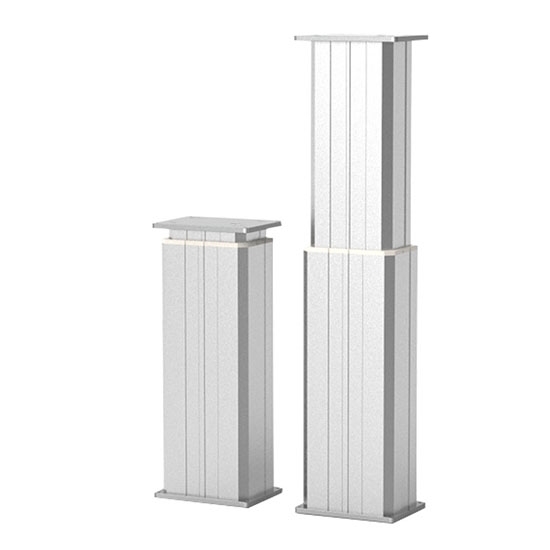

High speed 2-stage telescoping lifting column with maximum speed 18mm/s at load 1500N and slowest speed 3.5mm/ s at load 8000N. The lifting column professionally provides overload protection, overcurrent protection and waterproof protection for furniture lifting.

Specification

Model: RDDLZ-LC-HTA2
Rated voltage: 12V/ 24V/ 36V/ 48VDC
Rated speed: 5000 rpm
Maximum self-locking force: 10,000N/ thrust only
Maximum thrust: 8,000N
Maximum pulling force: 2,000N
Maximum speed at full load: 18 mm/s (load 1500N)
Slowest speed at full load: 3.5 mm/s (load 8000N)
Stroke: 100~900mm
Minimum size: Stroke + 180mm (limited to 300mm stroke or less)
Minimum size: Stroke + 200mm (over 300mm stroke or more)
Maximum outer tube size: Two stages, 191*141mm, rectangular
IP rating: IP54
Operating temperature range: -45°C ~ +75°C
Full performance operating temperature range: +5°C ~ +45°C
Limit switch: built-in (not adjustable)
Certificate: CE

Dimension (mm)

S: Stroke
L: Retracted length
L=stroke + 180mm (travel exceeds 300 = stroke + 200mm)

Tips: What is Telescopic Lifting Column?

The telescopic lifting column is a high-security device used to provide passage safety and prevent vicious collision attacks. The motor built in the cylinder is controlled by a single-chip microcomputer to drive the cylinder to automatically rise and fall. The input voltage is 24V, which has the advantages of safety, energy saving, stability, no pollution, strong controllability, small footprint, and convenient maintenance.
