220V/380V Electric Winch, 2000 Lbs/2400 Lbs/3000 Lbs

0 reviews • Write a review

from

$757.09

Ex Tax: $757.09

Stock: In Stock
Model: RDDLZ-WINCH-220V
Weight: 1.00
SKU: RDDLZ-WINCH-220V

Available Options

Short Description

Voltage

Load Capacity

Wire Rope Length

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

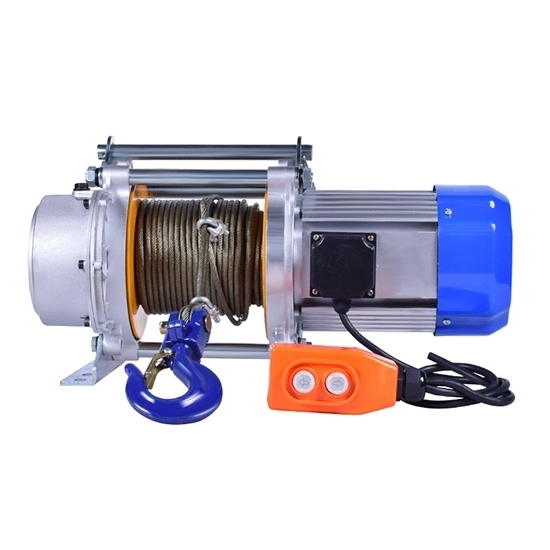

220V/380V electric wire rope winch with 2000 lbs/2400 lbs/3000 lbs load capacity, is a powerful mechanical tool used to lift, pull, or position heavy loads in construction, marine, and mining industries.

Specification

Model	RDDLZ-FG-TSJ-1
Load Capacity (Optional)	2000 lbs (1 Ton)	2400 lbs (1.2 Ton)	3000 lbs (1.5 Ton)
Voltage (Optional)	220V/380V AC	220V/380V AC	220V/380V AC
Motor Power	2.2kW/1.7kW	3kW/2.2kW	4kW/2.5kW
Wire Rope Length (Optional)	30m/60m/100m	30m/60m/100m	30m/60m/100m
Wire Rope Diameter	6mm
Screw Hole Distance	30m: 26.5cm(L)x18cm(W)	30m: 26.5cm(L)x18cm(W)	30m: 26.5cm(L)x18cm(W)
	60m: 26.5cm(L)x18cm(W)	60m: 26.5cm(L)x18cm(W)	60m: 26.5cm(L)x18cm(W)
	100m: 31.5cm(L)x18cm(W)	100m: 31.5.5cm(L)x18cm(W)	100m: 31.5cm(L)x18cm(W)
Lifting Speed (Standard)	Single Rope 14m/min
Lifting Speed (Standard)	Double Rope 7m/min
Rated Lifting Capacity	30m: Single Rope 500kg, Double Rope 1000kg	30m: Single Rope 600kg, Double Rope 1200kg	30m: Single Rope 750kg, Double Rope 1500kg
	60m: Single Rope 600kg, Double Rope 1200kg	60m: Single Rope 600kg, Double Rope 1200kg	60m: Single Rope 750kg, Double Rope 1500kg
	100m: Single Rope 600kg, Double Rope 1200kg	100m: Single Rope 600kg, Double Rope 1200kg	100m: Single Rope 750kg, Double Rope 1500kg
Dimension	54cm(L)x26cm(W)x27cm(H)
Net Weight	30kg/33kg/42kg	33kg/36kg/44kg	38kg/38kg/49kg

Details

Applications

Tips: Difference between electric winch and hydraulic winch

An electric winch uses an electric motor to generate pulling power, making it suitable for lighter tasks and environments where electricity is readily available. It offers the advantages of easy installation, lower maintenance, and quiet operation. However, it can overheat during prolonged use and is limited by the power supply.

In contrast, a hydraulic winch is powered by a hydraulic motor, driven by a hydraulic pump. It excels in heavy-duty applications, providing continuous operation without overheating. Hydraulic winches are commonly used in industrial settings, like construction or marine operations, where high torque and reliability are required. However, they require a hydraulic system, making them more complex to install and maintain, and they are typically noisier than electric winches.

In summary, electric winches are ideal for lighter, intermittent tasks, while hydraulic winches are preferred for heavy, continuous-duty applications.
