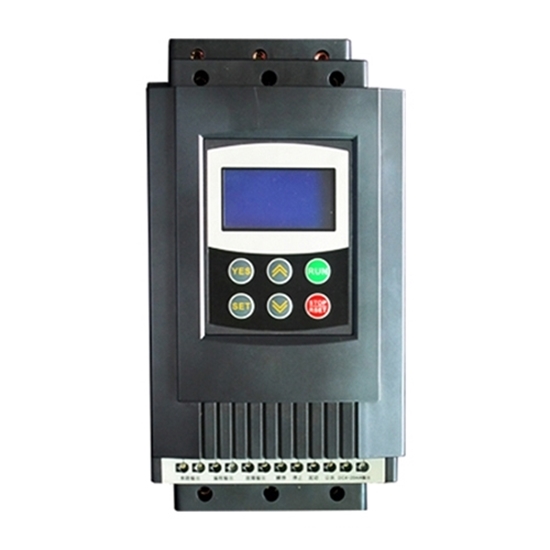

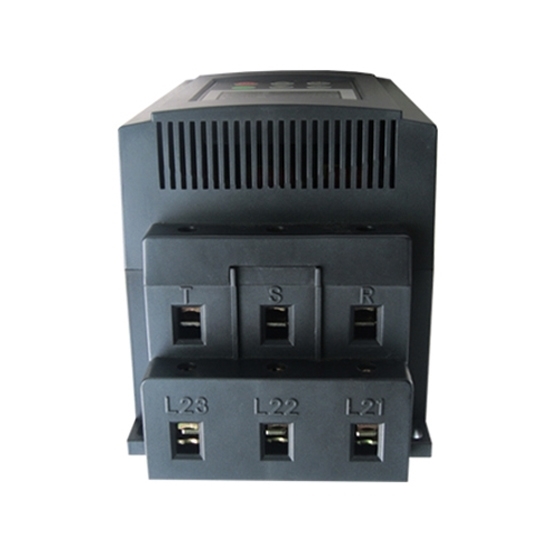

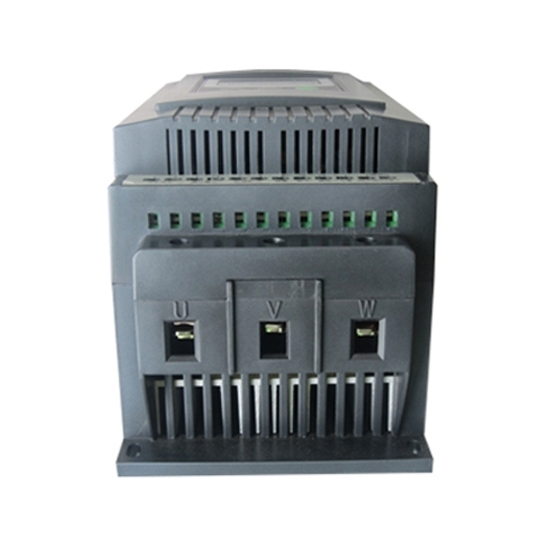

25 Hp (18 KW) Soft Starter, 37 A, 3ph 220v/400v/460v

0 reviews • Write a review

from

$415.92

Ex Tax: $415.92

Stock: In Stock
Model: GS-018
Weight: 1.00
SKU: GS-018

Available Options

Communication Interface

Input Voltage (Three Phase) ±15%

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

25 hp AC motor soft starter, 18 kW three phase 220v, 400v, 460v, 690v motor soft starter.

Model			GS2-018 (220v, 240v), GS3-018 (380v, 400v, 415v), GS4-018 (460v, 480v), GS6-018 (575v, 690v).
Capacity			25 hp (18 kw)
Current			37 amps at 380v/480v, 75 amps at 220v, 26 amps at 690v
Weight			5 kgs
Dimension			270146160 mm
Input	Voltage		Three-phase 230v, 415v, 480v, 660v AC
	Frequency		50Hz/ 60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
485 Communication			DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode			Operation panel control. Operation panel + external control. External control. External control + COM control. Operation panel + external + COM control. Operation panel + COM control. COM control. No start or stop operation.
Start Mode			Current-limiting to start. Voltage ramp to start. Torque control + current-limiting to start. Torque control + voltage ramp to start. Current ramp to start. Voltage current-limiting double closed-loop start.
Stop Mode			Soft stop. Free stop.
Protective Function			Open loop protection for external instantaneous stop terminals. Over-heat protection for soft starter. Protection for too long starting time. Input open phase protection. Output open phase protection. Unbalanced three-phase protection. Starting over current protection. Running overload protection. Under voltage protection for power voltage. Overvoltage protection for power voltage. Protection for fault parameter setting of the soft starter. Load short circuit protection. Auto restart or incorrect wiring protection. Incorrect wiring protection of external control stop terminals.
Ambient		Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
		Temperature	-30 +55 ^oC
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure		Enclosure	IP 20
		Cooling	Natural wind cooling.

Details

Tips: Soft starter application fields
The soft starter can effectively limit the starting current of AC asynchronous motor, and can be widely used in fans, water pumps, transportation, compressor and other loads. It is the ideal replacement product of traditional star-delta conversion, self-couple decrease-voltage, and magnetic-control decrease-voltage equipment. AC motor soft starter has a very good energy saving effect. It uses a thyristor to reduce voltage, the power factor is low when the soft start load is light, and the soft starter can improve the power factor by reducing the control voltage, in order to achieve light load energy saving effect. The fans, pumps and other load starting torque is low, the torque will increase with the speed. When using the soft start mode can reduce the inrush starting current well, and in the shutdown we can use soft-stop to avoid water hammer effect. When you need to reduce the exciting current, you can change the effective value of the output voltage, so to achieve the purpose of adjusting the speed, while improving the system power factor, achieving optimizing the energy saving effect.
