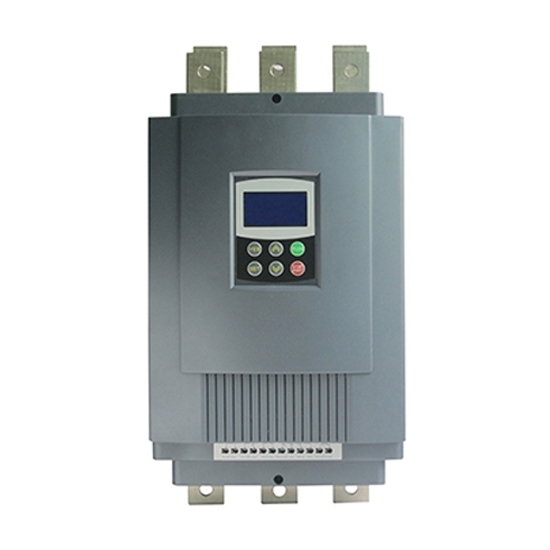

200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v

200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v
200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v
200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v
200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v
200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v
200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v
200 Hp (150 KW) Soft Starter, 300 A, 3ph 240v/400v/480v
0 reviews • Write a review
from
$1,379.53
Ex Tax: $1,379.53
  • Stock: In Stock
  • Model: GS-150
  • Weight: 1.00
  • SKU: GS-150

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200 hp soft starter, 150 kW three phase 240v, 400v, 480v, 690v AC motor starter.

ModelGS2-150 (220v, 240v), GS3-150 (380v, 400v, 415v), GS4-150 (460v, 480v), GS6-150 (575v, 690v).
Capacity200 hp (150 kw)
Current300 amps at 380v/480v, 600 amps at 220v
Weight21 kgs
Dimension525*257*194 mm
InputVoltageThree-phase 220v, 420v, 480v, 690v AC
Frequency50Hz/ 60Hz
Adaptive MotorSquirrel-cage three-phase asynchronous motor
Starting TimesIt is recommended not to exceed 20 times per hour.
485 CommunicationDB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode
  1. Operation panel control.
  2. Operation panel + external control.
  3. External control.
  4. External control + COM control.
  5. Operation panel + external + COM control.
  6. Operation panel + COM control.
  7. COM control.
  8. No start or stop operation.
Start Mode
  1. Current-limiting to start.
  2. Voltage ramp to start.
  3. Torque control + current-limiting to start.
  4. Torque control + voltage ramp to start.
  5. Current ramp to start.
  6. Voltage current-limiting double closed-loop start.
Stop Mode
  1. Soft stop.
  2. Free stop.
Protective Function
  1. Open loop protection for external instantaneous stop terminals.
  2. Over-heat protection for soft starter.
  3. Protection for too long starting time.
  4. Input open phase protection.
  5. Output open phase protection.
  6. Unbalanced three-phase protection.
  7. Starting over current protection.
  8. Running overload protection.
  9. Under voltage protection for power voltage.
  10. Overvoltage protection for power voltage.
  11. Protection for fault parameter setting of the soft starter.
  12. Load short circuit protection.
  13. Auto restart or incorrect wiring protection.
  14. Incorrect wiring protection of external control stop terminals.
AmbientPlace to be usedIndoor location with good ventilation free from corrosive gas and conductive dust.
AltitudeBelow 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
Temperature-30 +55 oC
Humidity90%RH without dew condensation.
Vibration<0.5G
StructureEnclosureIP 20
CoolingNatural wind cooling.



Details

Tips: Soft starter features

  1. Starting mode: According to the features of the load, selecting the different starting modes and parameter settings can make the motor to realize the starting effect in the maximum degree. Three starting modes: Voltage ramp starting - be able to get the maximum output torque, current-limiting starting - be able to effectively limit the starting current and inching - be able achieve the commissioning debugging function.
  2. High-tech performance: The use of high-performance microprocessors and powerful software support function simplifies the control circuit, there is no need of adjusting the circuit parameters, the consistent, accurate and fast execution speed and high-intensity anti-jamming function can be obtained.
  3. High reliability: All electrical apparatus elements of the soft starters of the motors are rigorously screened, the main control board must go through 72 hours of high temperature cycle test and vibration test, thus ensuring the high reliability of the outgoing products.

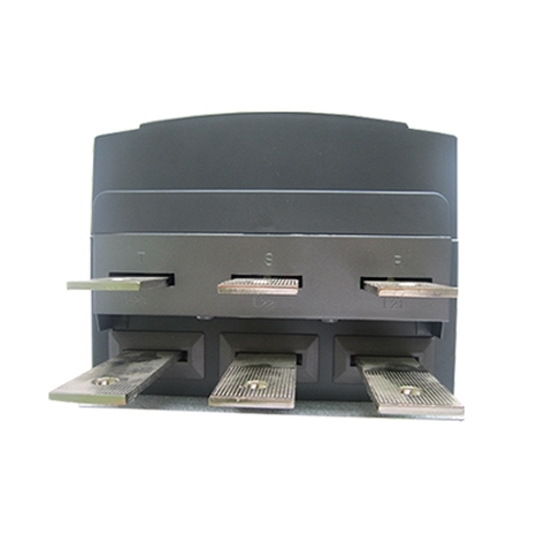

  4. Optimized structure: A unique compact modular structure and the upper incoming line and the lower outgoing line are very convenient for integration and complete sets of the users.
  5. Keyboard settings function: Soft starter has a convenient and intuitive operation display keyboard, and can set and modify the starting and stopping, running, protection and other parameters according to different loads.
