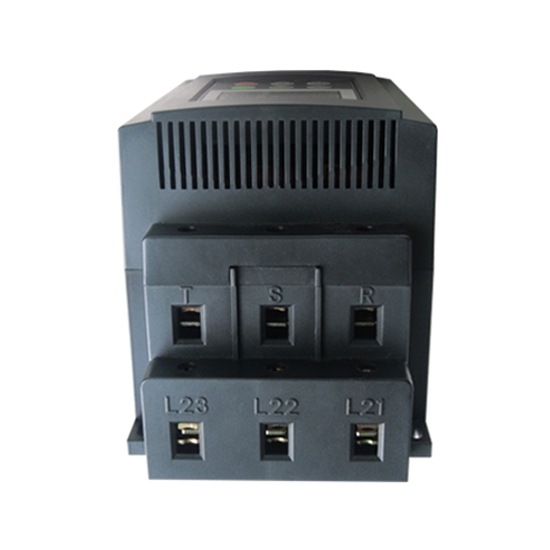

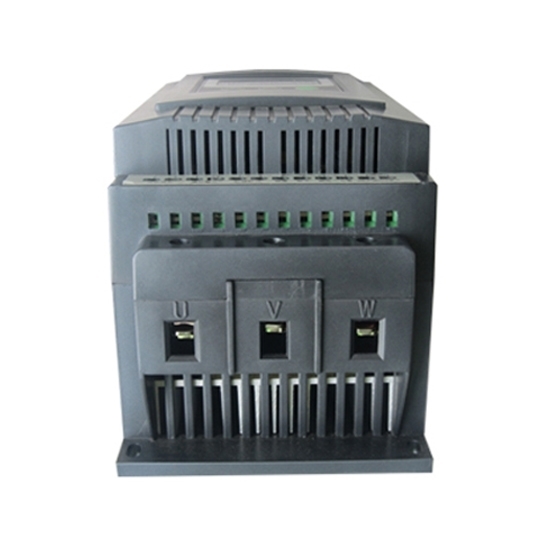

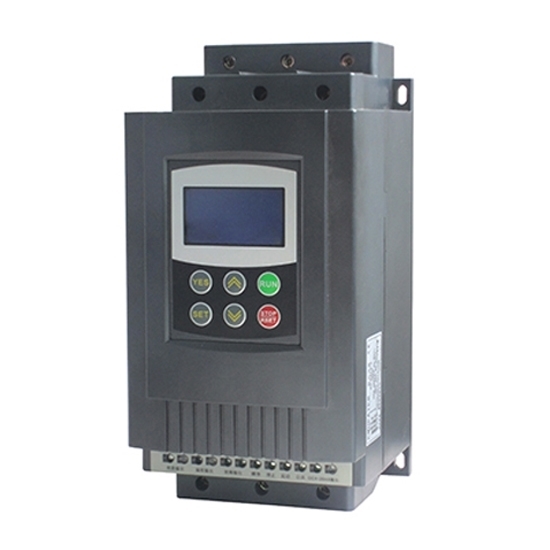

15 Hp (11 KW) Soft Starter, 22A, 3ph 240v/400v/480v

0 reviews • Write a review

from

$367.93

Ex Tax: $367.93

Stock: In Stock
Model: GS-011
Weight: 1.00
SKU: GS-011

Available Options

Communication Interface

Input Voltage (Three Phase) ±15%

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15 hp AC motor soft starter, 11 kW three phase 240v, 400v, 480v, 690v motor starter, manufacturer direct sale.

Model			GS2-011 (220v, 240v), GS3-011 (380v, 400v, 415v), GS4-011 (460v, 480v), GS6-011 (575v, 690v).
Capacity			15 hp (11 kw)
Current			22 amps at 380v/480v, 45 amps at 220v, 15 amps at 690v
Weight			5 kgs
Dimension			270146160 mm
Input	Voltage		Three-phase 230v, 400v, 480v, 690v AC
	Frequency		50Hz/ 60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
485 Communication			DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode			Operation panel control. Operation panel + external control. External control. External control + COM control. Operation panel + external + COM control. Operation panel + COM control. COM control. No start or stop operation.
Start Mode			Current-limiting to start. Voltage ramp to start. Torque control + current-limiting to start. Torque control + voltage ramp to start. Current ramp to start. Voltage current-limiting double closed-loop start.
Stop Mode			Soft stop. Free stop.
Protective Function			Open loop protection for external instantaneous stop terminals. Over-heat protection for soft starter. Protection for too long starting time. Input open phase protection. Output open phase protection. Unbalanced three-phase protection. Starting over current protection. Running overload protection. Under voltage protection for power voltage. Overvoltage protection for power voltage. Protection for fault parameter setting of the soft starter. Load short circuit protection. Auto restart or incorrect wiring protection. Incorrect wiring protection of external control stop terminals.
Ambient		Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
		Temperature	-30 +55 ^oC
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure		Enclosure	IP 20
		Cooling	Natural wind cooling.

Details

Tips: Soft starter advantage
With the requirements of the driving control to automation continue to improve, soft starter as an intelligent motor starting equipment adopting SCR as main device, single chip as control core, has get more and more applications in various industries. Due to the rapid development of power electronics technology, intelligent soft starter has been more widely used. Intelligent soft starter is a new motor control device, which integrate soft start, soft stop, light load, energy saving and multi-functional protections in one. It has the feathers of excellent performance, small size and light weight, and its load adaptability is very strong. It not only realizes smoothly starting motor without-impact in the whole process, and also can according to the characteristics of the motor load to adjust the current limit, start time, and other parameters in starting process. In addition, it also has a variety of motor protection functions, which fundamentally solves drawbacks of the traditional buck-starting device.
