Electric concrete vibrator motor with high frequency has factory price and good quality, features 1500W power, 220 or 380 voltage, 2840VPM working speed,  light weight, applies widely to the bridge, large-scale dam construction.

1.5kW Internal Concrete Vibrator Motor

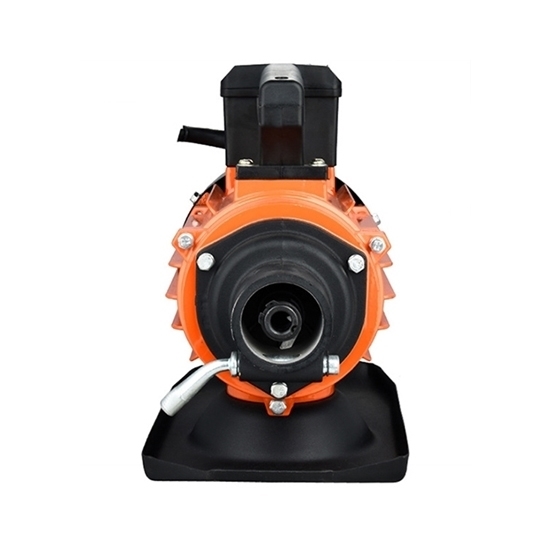

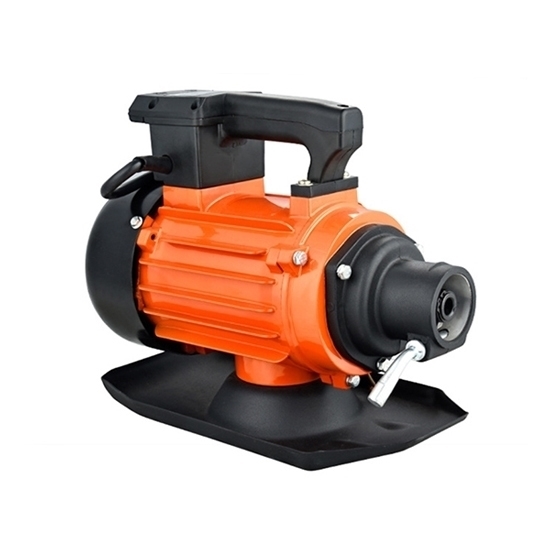

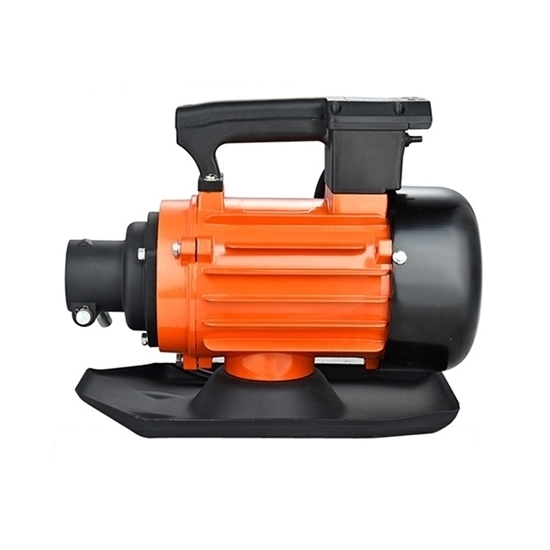

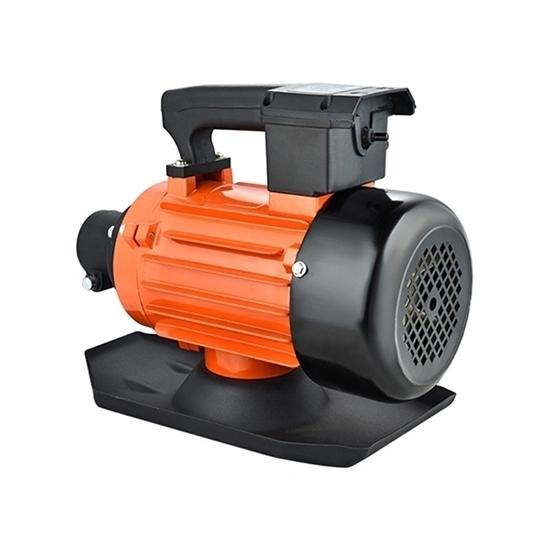

                                                 Detail of Internal Concrete Vibrator Motor

Tips: How to Choose a Concrete Vibrator Motor?

1. The general principle of selecting concrete vibration is determined according to the concrete construction technology. According to the composition characteristics of the concrete and the construction conditions, the appropriate structure type and reasonable working parameters are selected to select the vibrator.
2. Choice of power form: Electric vibrators are commonly used in construction. When the construction site has only single-phase power, single-phase series-excited motor vibrators should be used; when there are three-phase power supplies, various electric vibrators can be selected.
3. Reasonable choice of structural form: large-area concrete foundation columns, beams, walls, thick slabs, and prefabricated components can be tamped with internal concrete vibrator; structures with dense steel bars or thin concrete, and where internal concrete vibrators are not suitable, an attached vibrator can be used; for large and flat structures, such as the ground, roof, road surface, etc., a flat-plate vibrator is usually used. For the hollow slabs, slabs and beam-column components with small thickness produced by the reinforced concrete prefabricated component factory, the vibrating table can be used to obtain fast and effective tamping results.
4. The choice of internal concrete vibrator: The vibration frequency of the vibrator is an important factor affecting the tamping effect. Only when the vibration frequency of the vibrator is the same or similar to the natural frequency of the concrete particles can the best tamping effect be achieved.
