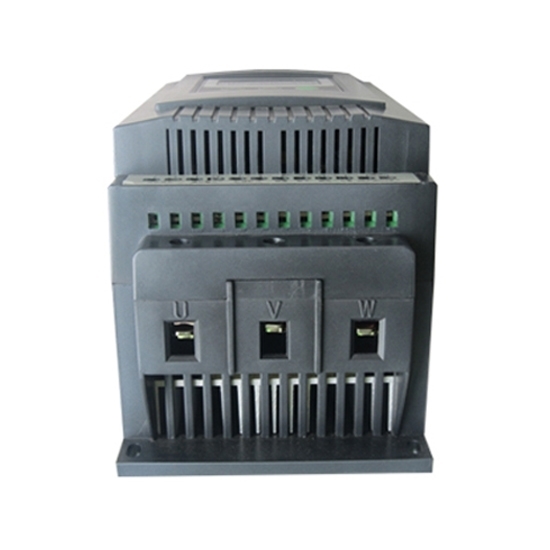

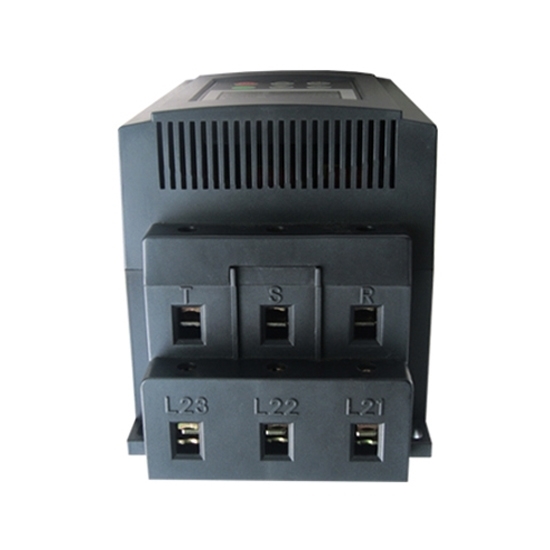

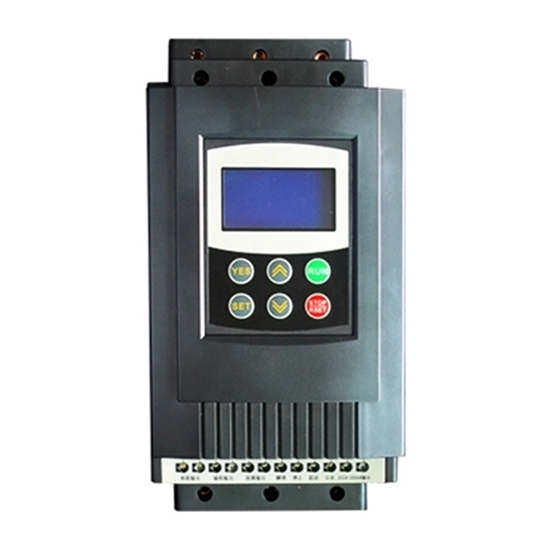

100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v

100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v
100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v
100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v
100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v
100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v
100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v
100 Hp (75 KW) Soft Starter, 150 A, 3ph 240v/400v/480v
0 reviews • Write a review
from
$619.62
Ex Tax: $619.62
  • Stock: In Stock
  • Model: GS-075
  • Weight: 1.00
  • SKU: GS-075

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 hp AC motor soft starter, 75 kW three phase 240v, 400v, 480v, 690v for selection, manufacturer direct sale.

ModelGS2-075 (220v, 240v), GS3-075 (380v, 400v, 415v), GS4-075 (460v, 480v), GS6-075 (575v, 690v).
Capacity100 hp (75 kw)
Current150 amps at 380v/480v, 320 amps at 220v, 90 amps at 690v
Weight5 kgs
Dimension270*146*160 mm
InputVoltageThree-phase 230v, 420v, 480v, 690v AC
Frequency50Hz/ 60Hz
Adaptive MotorSquirrel-cage three-phase asynchronous motor
Starting TimesIt is recommended not to exceed 20 times per hour.
485 CommunicationDB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode
  1. Operation panel control.
  2. Operation panel + external control.
  3. External control.
  4. External control + COM control.
  5. Operation panel + external + COM control.
  6. Operation panel + COM control.
  7. COM control.
  8. No start or stop operation.
Start Mode
  1. Current-limiting to start.
  2. Voltage ramp to start.
  3. Torque control + current-limiting to start.
  4. Torque control + voltage ramp to start.
  5. Current ramp to start.
  6. Voltage current-limiting double closed-loop start.
Stop Mode
  1. Soft stop.
  2. Free stop.
Protective Function
  1. Open loop protection for external instantaneous stop terminals.
  2. Over-heat protection for soft starter.
  3. Protection for too long starting time.
  4. Input open phase protection.
  5. Output open phase protection.
  6. Unbalanced three-phase protection.
  7. Starting over current protection.
  8. Running overload protection.
  9. Under voltage protection for power voltage.
  10. Overvoltage protection for power voltage.
  11. Protection for fault parameter setting of the soft starter.
  12. Load short circuit protection.
  13. Auto restart or incorrect wiring protection.
  14. Incorrect wiring protection of external control stop terminals.
AmbientPlace to be usedIndoor location with good ventilation free from corrosive gas and conductive dust.
AltitudeBelow 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
Temperature-30 +55 oC
Humidity90%RH without dew condensation.
Vibration<0.5G
StructureEnclosureIP 20
CoolingNatural wind cooling.



Details

Tips: The choice of soft starter capacity
In principle, the soft starter capacity should be greater than the capacity of the motor it drove. The rated capacity of the soft starter usually has two nominal values. One nominal value is according to the corresponding motor power, and the other is according to the allowable maximum operating current of soft starter. Should pay attention to the following two points:

  1. According to the motor rated power, then the product of different voltage levels has different rated current. For example, a 100hp (75kW) soft starter, if the voltage level is AC380V, then the rated current is 150A, if the voltage level is AC660V, the rated current is 100A.
  2. According to the allowable maximum operating current of soft starter, the product of different voltage levels has different rated capacity. For example, a 160A soft starter, if voltage level is AC380V, the rated capacity is 100hp (75kW), if voltage level is AC660V, the rated capacity is 180hp (132kW).

Also should synthetically consider other factors for selection, such as the soft starter carrying capacity, working system, environmental conditions, cooling conditions and others.
