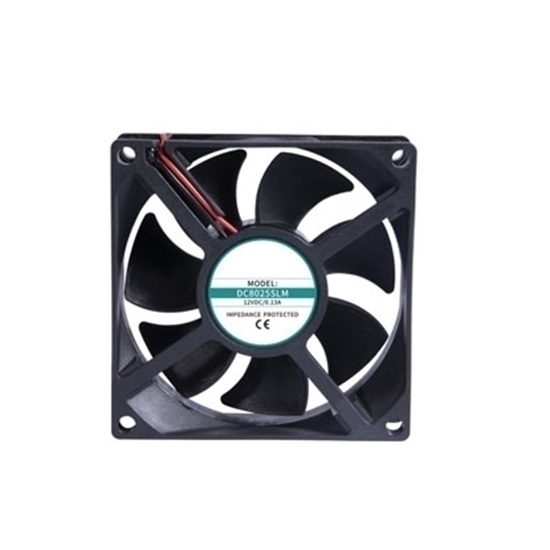

12V/24V DC Cooling Fan, 80mm X 80mm X 25mm

12V/24V DC Cooling Fan, 80mm X 80mm X 25mm
12V/24V DC Cooling Fan, 80mm X 80mm X 25mm
0 reviews • Write a review
from
$29.89
Ex Tax: $29.89
  • Stock: In Stock
  • Model: RDDLZ-CF-DC8025
  • Weight: 1.00
  • SKU: RDDLZ-CF-DC8025

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A small 12V DC cooling fan for sale, oily or ball bearing type is available. The Brushless Cooling Fan is easy to install and can be integrated into a wide range of applications, including computer cases, gaming consoles, servers, and more.

Specifications:

ModelRDDLZ-DC8025SLLRDDLZ-DC8025BLLRDDLZ-DC8025SLMRDDLZ-DC8025BLMRDDLZ-DC8025SLHRDDLZ-DC8025BLH
Rated Voltage12V24V12V24V12V24V12V24V12V24V12V24V
Bearing TypeOilyBallOilyBallOilyBall
Rated Current0.08A0.08A0.08A0.08A0.13A0.1A0.13A0.1A0.15A0.13A0.15A0.13A
Input Power0.96W1.92W0.96W1.92W1.56W2.88W1.56W2.88W1.8W3.12W1.8W3.12W
Fan Speed1800±10%RPM2200±10%RPM2800±10%RPM
Air Flow21.2CFM25.9CFM33CFM
Static Pressure1.5mm-H2O1.9mm-H2O2.9mm-H3O
Noise22dB-A27dB-A32dB-A
Dimension80mm x 80mm x 25mm
MaterialPlastic
CertificateCE, UL
Fire RatingUL94V-0
Operating Temperature-10 ℃ ~ 70 ℃
Operating Humidity35% ~ 85RH
Storage Temperature-40 ℃ ~ 70 ℃
Storage Humidity35% ~ 85RH

Dimensions and Curves (unit: mm)

DC Cooling Fan Interface



Tips: Applications of DC cooling fans
1. DC cooling fans are used in industry.
2. DC fans are used in computers.
3. DC fans are used in automobiles. Driven by power and having non-rail bearing vehicles with 4 or more wheels, it is mainly used to carry personnel and / or cargo; towing vehicles carrying personnel and / or cargo.
4. DC cooling fan is used in communication equipment: Communication equipment is divided into wired communication equipment and wireless communication equipment. Wired communication equipment mainly introduces serial communication, professional bus-type communication, industrial Ethernet communication, and various communication protocols. Conversion equipment.
