- Stock: In Stock
- Model: RDDLZ-SCP-1.5HP
- Weight: 1.00
- SKU: RDDLZ-SCP-1.5HP

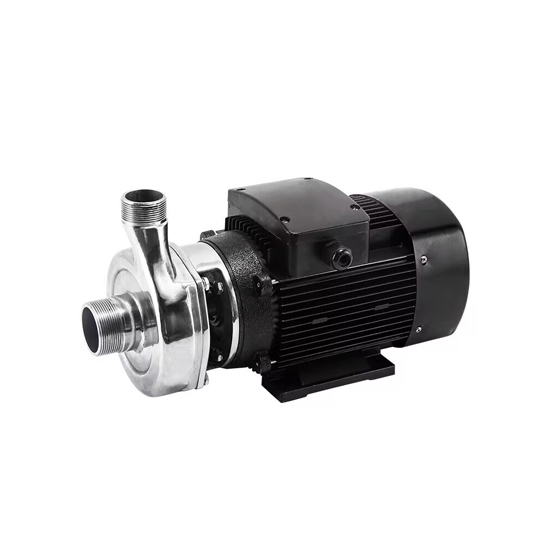

Factory price 1.5 hp (1.1kW) sanitary centrifugal pump is designed to handle a variety of particulate, viscous, lightly corrosive liquids. The stainless steel horizontal centrifugal pump provides 380V working voltage, 18m high rated lift, high temperature resistance, corrosion resistance, strong and durable.
Specifications
- Model: RDDLZ-50SF6-18-1.1
- Material: 304 Stainless Steel
- Rated Flow: 6m3/h
- Rated Lift: 18m
- Power: 1.1kW (1-1/2 hp)
- Caliber: 50-40mm
- Voltage: 380V
- Rotation Speed: 2860r/min
- Outlet Pressure: -2.5Mpa
- Weight: 24kg
Features
- 1-1/2 hp (1.1kW) stainless steel centrifugal pump can pump a variety of particle-containing, viscous, and lightly corrosive liquids.
- Its high speed and strong suction can improve work efficiency. Made of 304 stainless steel, uncoated, high temperature and corrosion resistant.
- Sanitary horizontal centrifugal pump has a thickened pump head, high-precision bearings and high-quality oil seals, making it stronger and more durable.

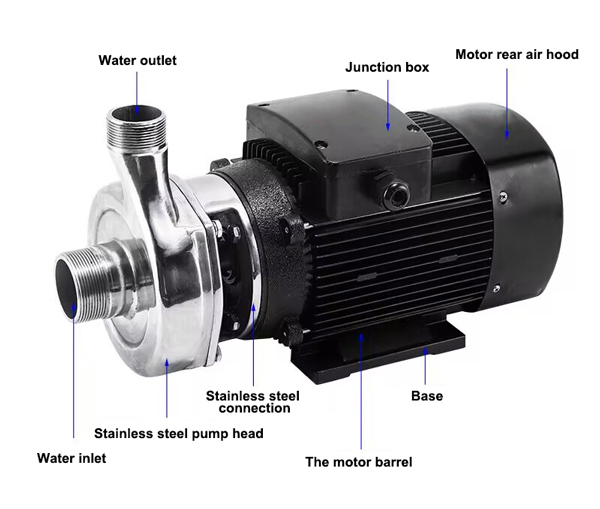

Details
Applications
Tips: What is a stainless steel centrifugal pump?
A stainless steel centrifugal pump is a type of pump designed for fluid transfer in applications where corrosion resistance and durability are paramount. The pump is constructed using stainless steel, a metal alloy known for its excellent corrosion resistance and hygienic properties. Stainless steel centrifugal pumps find extensive use in industries such as food and beverage, pharmaceuticals, chemicals, and water treatment.
The key components of a stainless steel centrifugal pump include an impeller, casing, and motor. The impeller, typically made of stainless steel as well, rotates within the casing, imparting kinetic energy to the fluid, and causing it to move radially outward. This design enables efficient and continuous fluid transfer.
The choice of stainless steel as the primary construction material ensures the pump's ability to withstand corrosive environments and maintain the purity of transferred fluids. It is particularly well-suited for handling aggressive or caustic liquids, making it a reliable solution in industrial processes where material integrity and resistance to chemical corrosion are crucial. Stainless steel centrifugal pumps are known for their robustness, longevity, and versatility in diverse applications across various industrial sectors.
