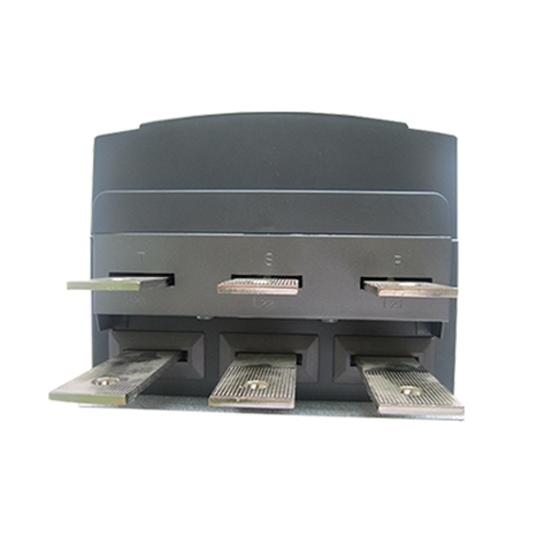

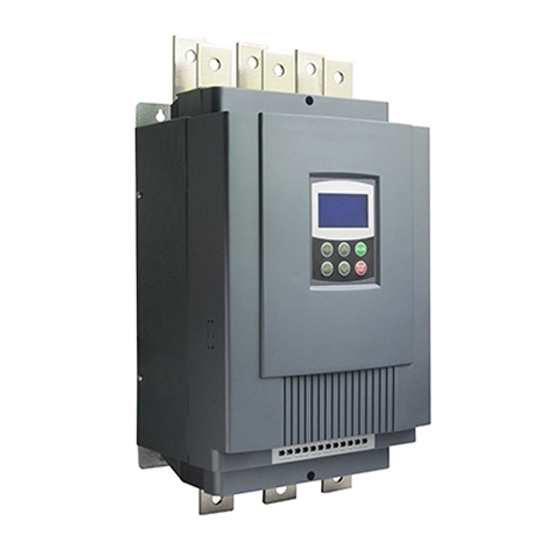

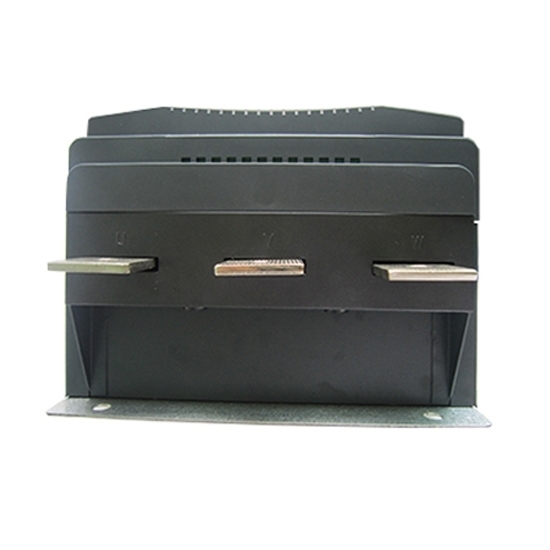

250 Hp (185 KW) Soft Starter, 370 A, 3ph 220v/380v/480v

0 reviews • Write a review

from

$1,459.72

Ex Tax: $1,459.72

Stock: In Stock
Model: GS-185
Weight: 1.00
SKU: GS-185

Available Options

Communication Interface

Input Voltage (Three Phase) ±15%

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

250 hp AC motor soft starter, 185 kW three phase 220v, 380v, 480v, 690v starter.

Model			GS2-185 (220v, 240v), GS3-185 (380v, 400v, 415v), GS4-185 (460v, 480v), GS6-185 (550v, 690v).
Capacity			250 hp (185 kw)
Current			370 amps at 380v/480v, 710 amps at 220v
Weight			21 kgs
Dimension			525257194 mm
Input	Voltage		Three-phase 230v, 440v, 480v, 660v AC
	Frequency		50Hz/ 60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
485 Communication			DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode			Operation panel control. Operation panel + external control. External control. External control + COM control. Operation panel + external + COM control. Operation panel + COM control. COM control. No start or stop operation.
Start Mode			Current-limiting to start. Voltage ramp to start. Torque control + current-limiting to start. Torque control + voltage ramp to start. Current ramp to start. Voltage current-limiting double closed-loop start.
Stop Mode			Soft stop. Free stop.
Protective Function			Open loop protection for external instantaneous stop terminals. Over-heat protection for soft starter. Protection for too long starting time. Input open phase protection. Output open phase protection. Unbalanced three-phase protection. Starting over current protection. Running overload protection. Under voltage protection for power voltage. Overvoltage protection for power voltage. Protection for fault parameter setting of the soft starter. Load short circuit protection. Auto restart or incorrect wiring protection. Incorrect wiring protection of external control stop terminals.
Ambient		Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
		Temperature	-30 +55 ^oC
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure		Enclosure	IP 20
		Cooling	Natural wind cooling.

Details

Tips: Soft starter starting fault and its handling method part 1

In the start-up process, the soft starter has the occasional jump air switch phenomenon. The causes for the malfunction are:
Long delay setting value of air switch is too small or air switch selection does not match with the motor. (Air switch parameters are moderately enlarged or the air switch is reselected.)
The starting voltage parameter is set too high or the starting time is too long. (The initial voltage is appropriately adjusted or the starting time is appropriately shortened according to the load condition.)
In the process of starting, because fluctuations in the grid voltage are relatively large, it is easy to cause the error commands issued by the soft starter and an early bypass phenomenon. (It is recommended that users do not start high-power motor at the same time.)
Start at full load. (Minimize the load when starting.)
The soft starter reports fault when starting, the soft starter does not work, the motor does not respond. The causes of the failure may be:
Default phase of motor. (Check motor and peripheral circuit.)
Short circuit of SCR of main elements in soft starter. (Check whether the motor and the grid voltage are abnormal Connect with the manufacturers to replace the SCR.)
Filter board breaks down short circuit. (Replace the filter board.)
In the starting process, the current is instable and the current is too large. The reasons may be:
Ammeter indication is not accurate or does not match the transformer. (Replace the new ammeter.)
Grid voltage has instability, fluctuations are relatively large, causing the malfunction of the soft starter. (Connect with the manufacturers to replace the control panel.)
Soft starter parameter setting is unreasonable. (Retune the parameters.)
The soft starter has repeated start. The causes for the malfunction are:
During the starting process, the external protective elements move, the contactor cannot be closed, resulting in repeated starting of the soft starter. (Check peripheral components and lines.)
