Beam Load Cell, 200kg/500kg/1000kg/3 Ton/5 Ton To 10 Ton

0 reviews • Write a review

from

$119.96

Ex Tax: $119.96

Stock: In Stock
Model: RDDLZ-LC-B02
Weight: 1.00
SKU: RDDLZ-LC-B02

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

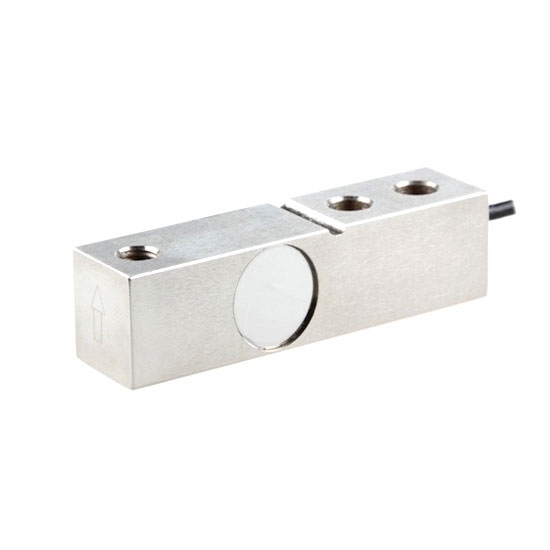

Cantilever beam load cells have capacity range from 200kg, 500kg, 1000kg, 3 ton, 5 ton to 10 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCB-TJH-5B
Shipping Weight	1.1~5kg
Capacity Range *	200 kg~10 ton

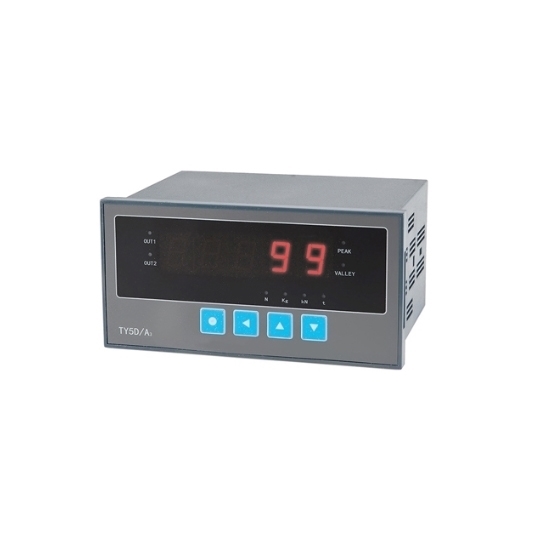

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)

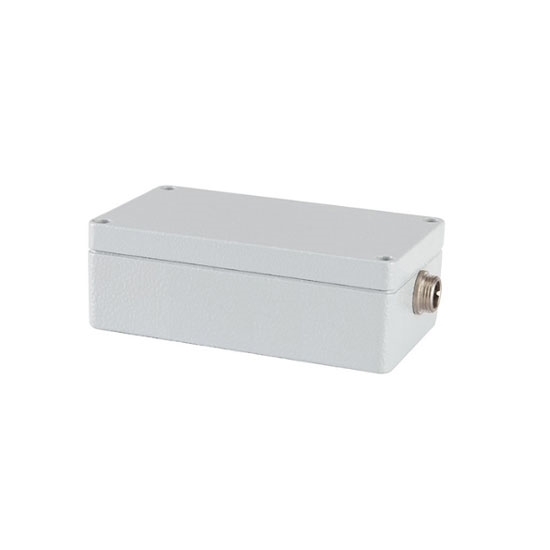

Matched Transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.02%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.02%F.S/10℃
Temperature Effect on Output	±0.02%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel or stainless steel
Protection Class	IP67
Cable Length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Easy Installation: Designed with one fixed end and one loaded end for simple, quick setup.
Low Center of Gravity: Enhances stability and ensures accurate measurements.
Versatile & Interchangeable: High compatibility, suitable for various systems with excellent interchangeability.
Wide Application: Ideal for vehicle scales, electronic scales, platform scales, hopper scales, and more.
Durable & Reliable: Strong construction for heavy load capacity, ensuring long-lasting, dependable performance in industrial settings.

Dimension

Capacity	Dimension (mm)
Capacity	L	L1	L2	L3	L4	H	Φ	M	W
200kg~2.5 ton	130	15.8	25.4	76.2	54	31.8	12.7	M12 (<1 1000kg) M16 (≥1 1000kg)	31.8
3~5 ton	171	19.1	38.1	95.3	80	38.1	20	M18*1.5	38.1
10ton	222.5	25.4	50.8	123.8	110	50.8	26	M24*2	50.8

Application

Tips: Can I use Cantilever Beam Load Cells for weighing liquids or gases?

While Cantilever Beam Load Cells are ideal for solid objects, they can also be used for measuring forces associated with liquid or gas containers, such as pressure or weight in tanks, provided they are part of the structure supporting the container.
