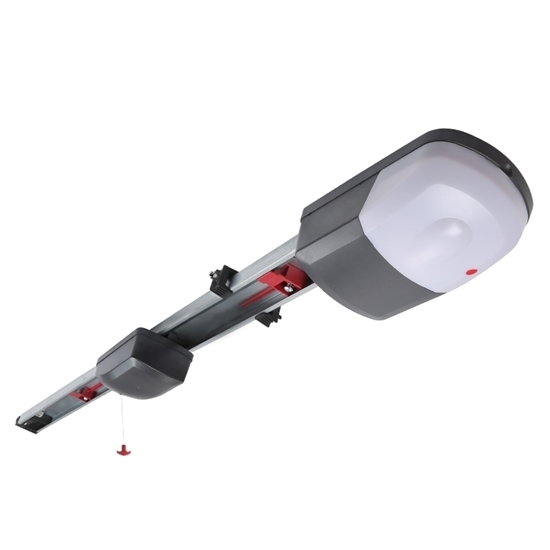

120W Garage Door Opener, 21m², 1500Nm, 200VA

0 reviews • Write a review

from

$1,438.03

Ex Tax: $1,438.03

Stock: In Stock
Model: RDDLZ-GDM-120W
Weight: 1.00
SKU: RDDLZ-GDM-120W

Available Options

Accessories

AC Voltage

Door Area

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ 120W garage door opener runs at a speed of 140mm per second, uses 50% of the frequency, and supplies 200 DC to the motor. 120 watts operating power. 120W garage door opener is also equipped with a variety of convenient accessories. If you need or have any questions please ask our staff we will quickly reply.
This is a system solution for automatic door control, which can be used for industrial purposes as well as household use. Here is a demonstration video of garage door opener control.

Features:

RDDLZ 120W garage door opener equipped with high-quality chain: the selected high-quality chain ensures that the chain has stable conductivity, and the protection groove outside the chain can also effectively protect the chain and reduce noise.
The track hanger of RDDLZ door motor is different from other motors which can only be fixed in one position. It can freely choose the appropriate location according to different environment, and the selection range can reach 350mm.
When switching the electric manual mode to pull the rope. The sound of the clutch can also be used to judge whether the rope is pulled open without considering the position of the door body, because it can be operated at any position.
When installing and fixing, you only need to align the bolt with the triangle arrow to easily fix the chain tightness.

Specification:

Model	RDDLZ-SX20/1500
Torque	1500Nm
Door Area (Insulated Steel Panel) (Optional Lift Height)	21m² (2.4m)/ (3.4m)
Max. Lift Height	5000mm
Door Area (Wooden or Industrial Panel) (Optional Lift Height)	15m² (2.4m)/ (3.4m)
Maximum Speed	140mm/s
Duty cycle	30%
Rail	2400mm
Nominal lnput voltage	220V AC+10%,50/ 60Hz
Motor	24V DC/120W
Weight	20kg
Transformer	200VA
Degree of Protection	IP40
Soft Start/Stop Function	Yes
Safety Obstruction Sensing	Yes

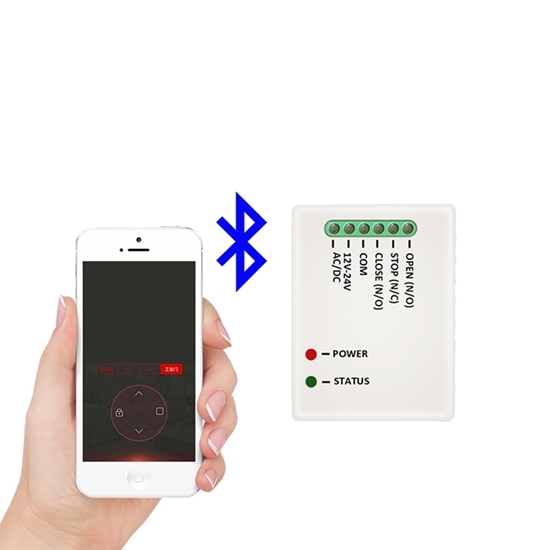

Connect to APP Link Smartphone Controller	Available
speed Regulation	Yes
Auto Close Function	Yes
Operating Temperature	-20°C to +50°C
Maximum Distance	80m

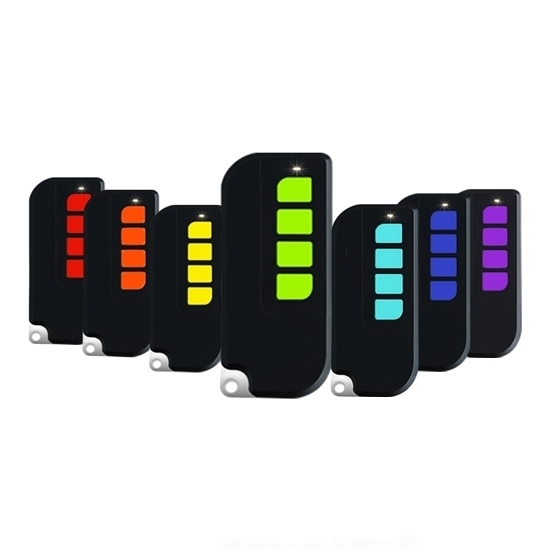

TX Capacity	Standard 2, max. 12 transmitter

Application:

RDDLZ garage door opener practical and powerful for domestic sectional and tilt-up garage doors, heavy duty and light industrial doors translucent overhead doors steel panel sectional doors wooden doors, copper doors. It is also widely used in sectional garage door, flip garage door, swing garage door and side mounted garage door.

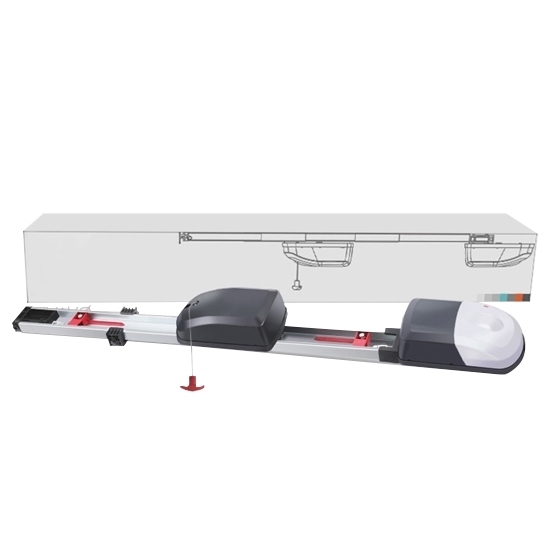

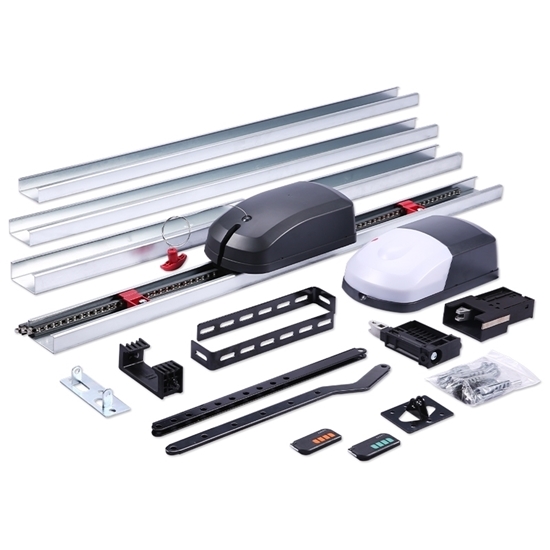

RDDLZ Garage Door Openers Display:

Dimension:

Tips: What are the RDDLZ 120W Garage Door Opener Installation Methods?

Classic installation method: connect the control part and the rail when the installation space is sufficient.
Side installation: the control unit is installed beside the track in case of limited installation space.
Wall mounting method: when the power socket is far away from the door machine, the control part can be mounted on the wall. (Additional long line is required for wall installation.)
