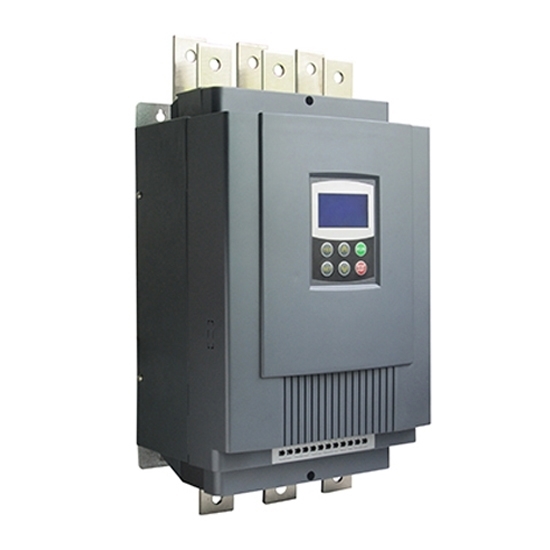

180 Hp (132 KW) Soft Starter, 264 A, 3ph 220v/380v/480v

0 reviews • Write a review

from

$1,299.31

Ex Tax: $1,299.31

Stock: In Stock
Model: GS-132
Weight: 1.00
SKU: GS-132

Available Options

Communication Interface

Input Voltage (Three Phase) ±15%

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

180 hp motor soft starter, 132 kW three phase 220v, 380v, 480v, 690v AC motor starter for selection.

Model			GS2-132 (220v, 240v), GS3-132 (380v, 400v, 415v), GS4-132 (460v, 480v), GS6-132 (575v, 690v).
Capacity			180 hp (132 kw)
Current			264 amps at 380v/480v, 560 amps at 220v, 180 amps at 690v
Weight			21 kgs
Dimension			525257194 mm
Input	Voltage		Three-phase 240v, 415v, 480v, 690v AC
	Frequency		50Hz/ 60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
485 Communication			DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode			Operation panel control. Operation panel + external control. External control. External control + COM control. Operation panel + external + COM control. Operation panel + COM control. COM control. No start or stop operation.
Start Mode			Current-limiting to start. Voltage ramp to start. Torque control + current-limiting to start. Torque control + voltage ramp to start. Current ramp to start. Voltage current-limiting double closed-loop start.
Stop Mode			Soft stop. Free stop.
Protective Function			Open loop protection for external instantaneous stop terminals. Over-heat protection for soft starter. Protection for too long starting time. Input open phase protection. Output open phase protection. Unbalanced three-phase protection. Starting over current protection. Running overload protection. Under voltage protection for power voltage. Overvoltage protection for power voltage. Protection for fault parameter setting of the soft starter. Load short circuit protection. Auto restart or incorrect wiring protection. Incorrect wiring protection of external control stop terminals.
Ambient		Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
		Temperature	-30 +55 ^oC
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure		Enclosure	IP 20
		Cooling	Natural wind cooling.

Details

Tips: Soft starter parameter adjustment
It is very important to adjust the various parameters reasonably when applying the soft starter. If the parameter is improperly adjusted, it may cause the failure to start and cause damages to the equipment in severe case.

Adjustment of the reference voltage
The reference voltage is the basic condition for the device to start. The reference voltage is required to allow the motor to rotate immediately after the voltage is applied and the load starts to start. If the motor does not rotate after the pressurization, it is necessary to increase the reference voltage setting value, if the motor starts too fast, it is necessary reduce the reference voltage setting value. The reference voltage shall be adjusted in several times until the load is started immediately after the voltage is applied.
Starting time adjustment
The motor's acceleration torque is directly related to the start-up time. The electronic soft starter allows the motor to start from the initial voltage to the full voltage along the ramp during the set time (0.5 to 2408). The start-up time adjustment depends on the load, and it is necessary to repeat the test in several times to achieve uniform acceleration during the start-up time.
Soft stop application
The soft starter allows the output voltage to be gradually reduced to achieve a soft stop to protect the device, such as the water induction in the water pump, when the pump suddenly stops and the movement inertia of liquid in the pipeline will cause the skyrocket of the pressure of the pipeline and the valve, resulting in pipeline damage. If the stopping time is extended by soft parking, the impact problem can be solved.
