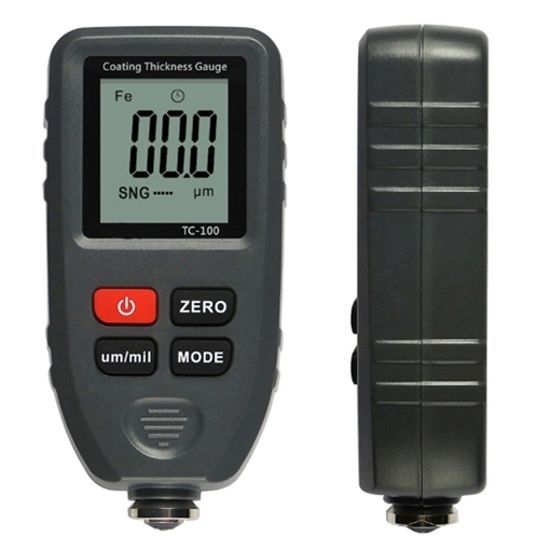

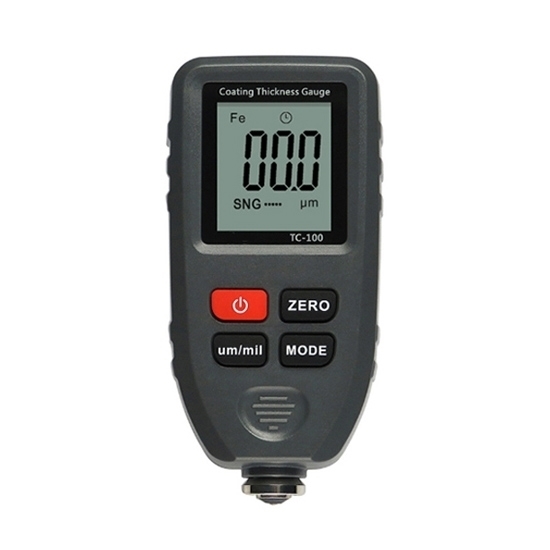

0-1300 μm Digital Coating Thickness Gauge
from
$140.76
Ex Tax: $140.76
- Stock: In Stock
- Model: RDDLZ-CTG-1300
- Weight: 1.00
- SKU: RDDLZ-CTG-1300
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Buy coating thickness gauge at low price. A paint depth gauge is a thickness measuring tool that can work stably in laboratories, workshops and outdoors. The paint thickness tester has a 0-1300μm measuring range, ±3%+2μm accuracy, and 0.1μm resolution.
Specifications
Model | RDDLZ-TC-100 | |
Sensing Probe | Ferromagnetism | Non-Ferromagnetic |
Working Principle | Electromagnetic Induction | Eddy Current Effect |
Measuring Range | 0-1300μm | 0-1300μm |
Accuracy | ±3%+2μm | ±3%+2μm |
Resolution | 0.1μm | 0.1μm |
Minimum Thickness | 0.5mm | 0.3mm |
Minimum Curvature Radius | 1.5mm | |
Minimum Measuring Area (Diameter) | 6mm | |
Unit | μm/ mil | |

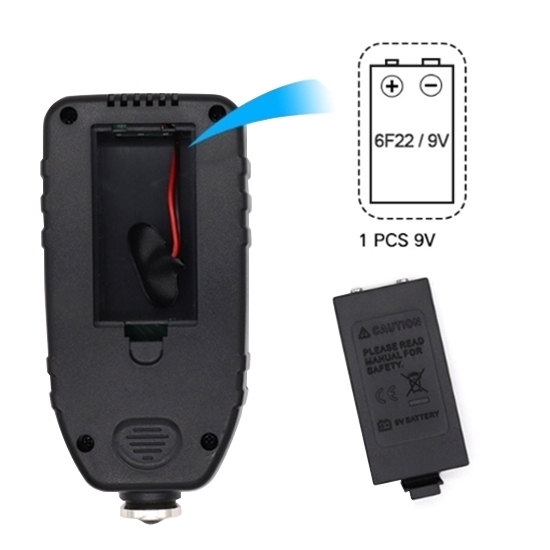

Power Supply | 9V | |
Operating Environment | Temperature: 0-40℃ (32-104°F) | |
Humidity: 20%-90%RH | ||
No Strong Magnetic Field | ||

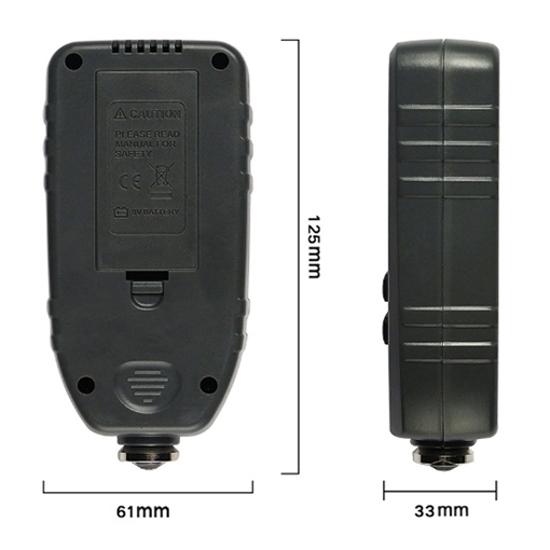

Dimensions | 125mm*61mm*33mm | |
Net Weight | 0.1kg | |
Package Weight | 0.4kg |
0-1300μm Coating Thickness Gauge Details
Tips: Features of coating thickness gauge
The coating thickness gauge has small measurement error, high reliability, good stability and easy operation. The paint thickness gauge is an indispensable testing instrument to control and ensure product quality and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.
