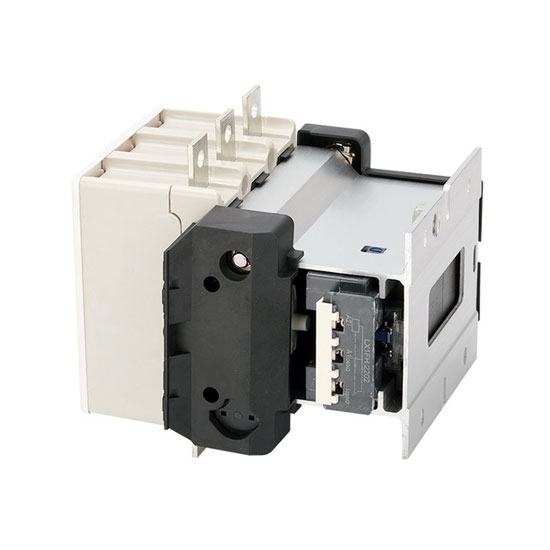

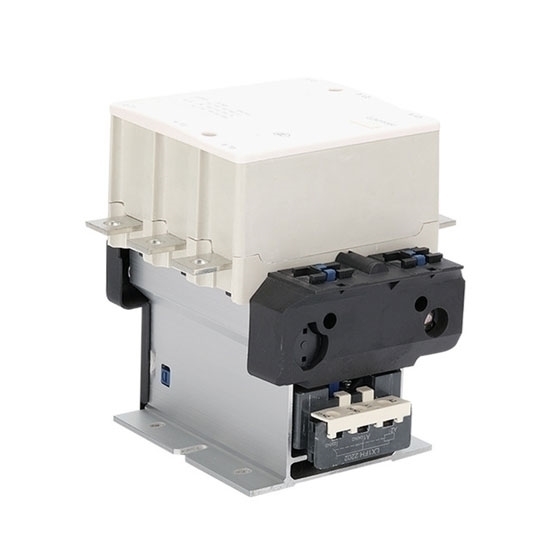

265 Amp 3 Phase AC Magnetic Contactor, 24V/110V/220V Coil

0 reviews • Write a review

from

$466.63

Ex Tax: $466.63

Stock: In Stock
Model: RDDLZ-ACCON-265A
Weight: 1.00
SKU: RDDLZ-ACCON-265A

Available Options

Coil Rated Voltage

Auxiliary Contact

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 pole AC magnetic contactor is used in 3 phase units. This contactor relay works between power source and high load electrical motor to balance changes in electrical frequency which may come from a power supply.

Specification

Model		RDDLZ-CJX2-F265
Rated Current	le max AC-3 (Ue≤440V)	265A
Rated Current	le max AC-1 (θ≤40°C)	350A
Coil Rated Voltage (Optional)		110V AC, 220V AC, 380V AC
Contact Form		3NO
Auxiliary Contact (Optional)		2NO, 2NC, 1NO+1NC, 2NO+2NC, 1NC+3NO, 4NO, 4NC
Frequency		50Hz/ 60Hz
Rated Insulated Voltage (Ui)		1000V
Rated Impulse Withstand Voltage (Uimp)		8kV
Rated Operational Voltage		440V
Conventional Thermal Current (θ≤40°C)		350A
Operation Frequency	AC-1, AC-2, AC-3	1200 times/h
Operation Frequency	AC-4	300A
Rated Power (AC-3)	220/240V	75kW
	380/400V	132kW
	415V	140kW
	440V	140kW
	500V	160kW
	660/690V	160kW
	1000V	147kW
Connection/ Wiring	Number of Lines	2
	Line Size	32x4mm²
	Cable with Splicing	240mm²
	Cable with Connector	240mm²
	Screw Diameter	φ10
Tightening Torque		35N.m
Standards-Compliant		IEC60947-4-1, GB14048.4, EN60947-4-1
Dimensions		203 x 201.5 x 213mm
Weight		16kg

Details

Tips: Three attributes of AC magnetic contactor

AC magnetic contactor coil. Coils are usually identified by A1 and A2, which can be simply divided into AC contactors and DC contactors.

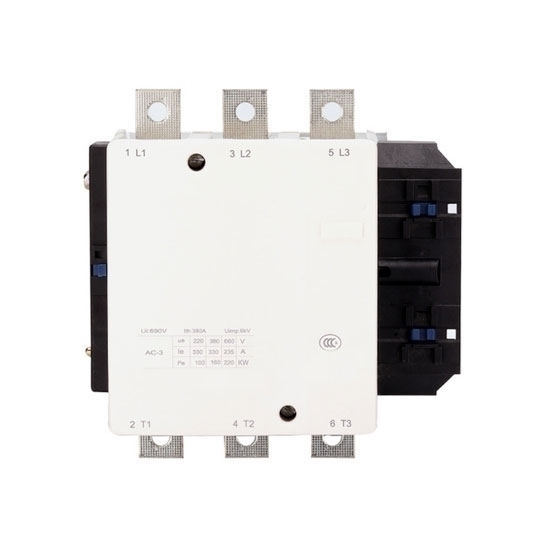

Main contact of AC contactor. L1-L2-L3 is connected to the three-phase power supply line, and T1–T2-T3 is connected to the power supply line, which can be used to connect the load line. The main contacts of AC contactors are normally open contacts, which are mainly connected to the main circuit to control the start and stop of motors and other equipment.
Auxiliary contact of AC contactor. Auxiliary contacts can be divided into normally open point NO and normally closed point NC. In general, the normally open point NO is mainly used for contactor self-locking control and transmission of operating signals. For example, AC contactor normally open point NO connected to a red indicator light can be used as the electrical motor’s running indicator light. When power is on, the normally open point NO is closed and the indicator light is turned on to transmit the operating signal of the motor or circuit. The normally closed point NC of the AC contactor is mainly used for circuit interlocking and signal transmission.
