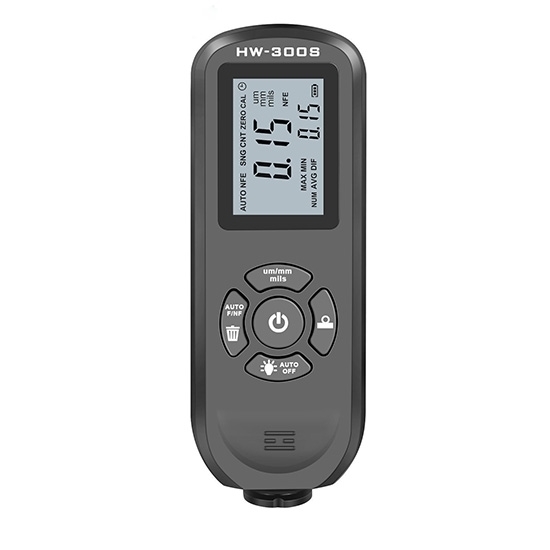

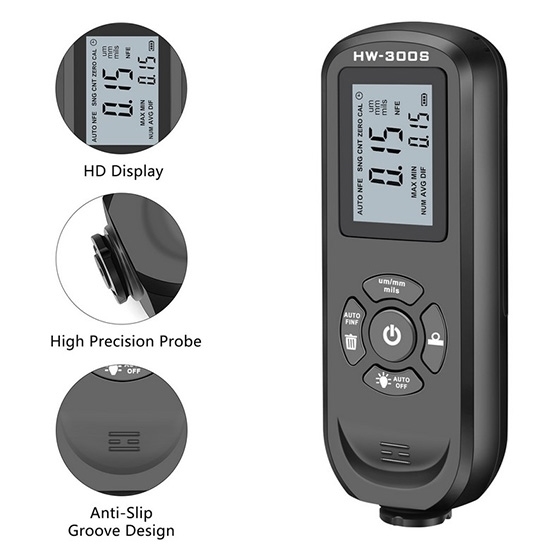

High precision coating thickness gauge, with a measurement range of 0-2000 μm, is primarily used to measure the thickness of non-conductive coatings on metal surfaces, as well as the thickness of non-ferromagnetic coatings on ferromagnetic metals (such as iron, nickel, cobalt, etc.), such as the paint thickness on automobile surfaces and the coating thickness of metal parts. The coating thickness tester features a built-in magnetic induction and eddy current dual-probe system, which automatically identifies the metal substrate being measured. Simply place it on the surface to be measured, and it will automatically calculate the coating thickness.

Specification

Details

Tips: Measurement steps of precise coating thickness gauge

Step 1. Prepare the parts to be tested.
Step 2. Stay away from the metal object at least 2 cm, press the switch key to turn on.
Note: It is suggested that the instrument should be zeroed with reference to "zero calibration" before testing.
Step 3. The probe is placed vertically and quickly on the surface to be measured until the drop is heard, and the measured value is displayed on the screen, and then the probe is lifted at least 2 cm away from the part to be measured, and the next measurement can be carried out.
Note: If the automatic shutdown function is turned on and there is no operation within 3 minutes, the instrument will automatically shut down.
