Double Acting Welded Hydraulic Cylinder, 48 Inch (1200mm) Stroke

0 reviews • Write a review

from

$785.89

Ex Tax: $785.89

Stock: In Stock
Model: RDDLZ-WHC-1200MM
Weight: 1.00
SKU: RDDLZ-WHC-1200MM

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

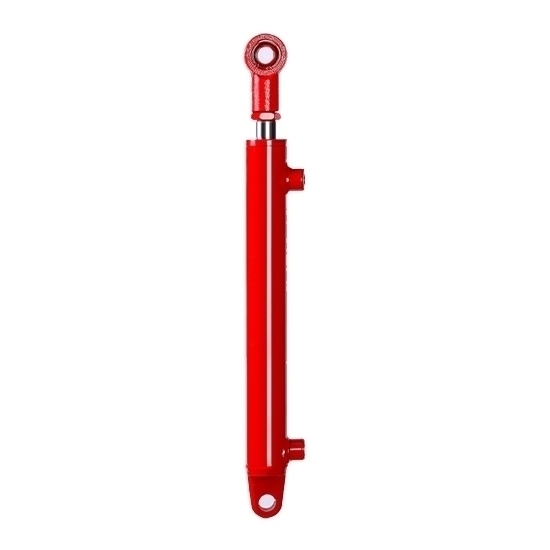

The double acting welded hydraulic cylinder consists of a cylindrical barrel, a piston, and end caps, all securely welded together. These welded clevis hydraulic cylinders come in various sizes and configurations, making them versatile for use in diverse industrial and mobile equipment, including mini excavators, robotics, log splitters, dump trucks, press machines, dump trailers, and so on.

Specification

Model	RDDLZ-HSG631200
Acting Type	Double Acting
Stroke	48 inch (1200mm)
Rated Pressure	16Mpa
Installation	Double Ear Welding Type
Speed Ratio	1:3
Bore Diameter	φ63mm
Load Capacity	5 Ton
Rated Push Force	49850N (5 Ton)
Rated Pull Force	31681N (3 Ton)
Oil Port	18*1.5

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Model	Inner Diameter	Outer Diameter	Rod Diameter	Stroke	Oil Port	Pin Hole	Installation Distance	Total Length
RDDLZ-HSG631200	63	73	35	1200	18*1.5	30	1470	1520

Tips: Can air get trapped in a hydraulic cylinder?

Air can become trapped in a hydraulic cylinder, potentially causing performance issues. Hydraulic systems operate by transmitting force through a fluid, typically hydraulic oil. When air enters the system, it can get trapped in the cylinder due to its lower compressibility compared to hydraulic fluid. This trapped air can lead to a phenomenon called "cavitation," where the air bubbles rapidly collapse and create pressure spikes, causing damage to the cylinder and reducing efficiency.

Air ingress can occur due to leaks, improper maintenance, or poor system design. To prevent this, it's essential to maintain hydraulic systems, check for leaks, and bleed air from the system if necessary. Trapped air can diminish the system's ability to transmit force accurately and consistently, leading to reduced performance and potential long-term damage.
