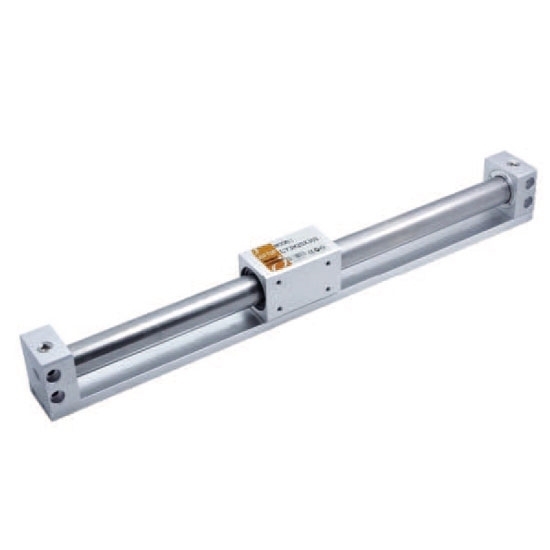

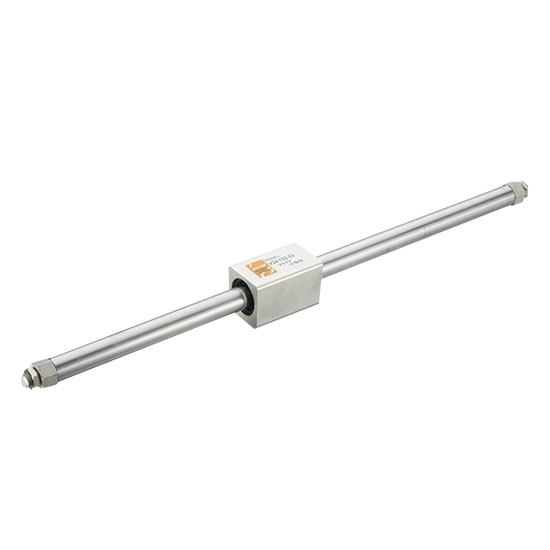

Rodless Air Cylinder, 25mm Bore, 300mm Stroke, Double Acting

0 reviews • Write a review

from

$289.46

Ex Tax: $289.46

Stock: In Stock
Model: RDDLZ-CP-3B3R
Weight: 1.00
SKU: RDDLZ-CP-3B3R

Available Options

Short Description

Bore X Stroke

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Fast respond rodless air cylinder stroke 100mm, 300mm, 500mm for selection, bore size can choose 25mm, 30mm or 40mm. Rodless cylinders are widely used in welding assembly, tire production, industrial packaging and irrigation in the automotive industry.

Rodeless Air Cylinder Specifications

Model	RDDLZ-CP-3B3R
Bore Size	15mm	20mm	25mm	32mm	40mm
Max Pressure	0.7 Mpa
Min Pressure	0.16 Mpa	0.15 Mpa	0.14 Mpa	0.12 Mpa
Magnetic Holding Force	137 N	213 N	363 N	588 N	922 N
Port Size	M5 X 0.8"	G 1/8"
Actuation	Double Acting
Cushion	Adjustable Cushion
Materia	Aluminum
Stroke Length	50mm, 100mm, 200mm, 400mm to 1000mm
Piston Material	Magnetic
Piston Rod Material	Magnetic
Cylinder Type	Rodless

Rodless Pneumatic Air Cylinder Dimension (mm)

Bore/ Symble	A	B	C	CB	CR	D	F	G	GP	GW	H	HA	HB	HC	HP	HS	HT	J X E
15mm	10.5	8	4.2	2	0.5	16.6	8	5	33	31.5	32	30	17	31	17	8.5	17	M5 x 0.8 x 7
20mm	9	9.5	5.2	3	1	21.6	9	6	39	37.5	39	36	21	38	24	7.5	24	M6 x 1 x 8
25mm	8.5	9.5	5.2	3	1	26.4	8.5	6	44	42.5	44	41	23.5	43	23.5	6.5	23.5	M6 x 1 x 8
32mm	10.5	11	6.5	3	1.5	33.6	10.5	7	55	53.5	55	52	29	54	29	7	29	M8 x 1.25 x 10
40mm	10	11	6.5	5	2	41.6	13	7	65	63.5	67	62	36	66	36	8	36	M8 x 1.25 x 10

Bore/ Symble	L	LD	M	MM	N	PW	Q	QW	T	TC	W	WP	X	Y	Z
15mm	53	4.3	5	M4 x 0.7	6	32	84	18	19	17	25	16	18	54.5	94
20mm	62	5.6	5	M4 x 0.7	7	38	95	17	20.5	20	40	19	22	64	107
25mm	70	5.6	6	M5 x 0.8	6.5	43	105	20	21.5	22.5	40	21.5	28	72	117
32mm	76	7	7	M6 x 1	8.5	54	116	26	24	28	50	27	35	79	130
40mm	90	7	8	M6 x 1	11	64	134	34	26	33	50	32	40	93	148

Tips: How to install a rodless air cylinder?

1. Cylinder open box installation should check the rodless air cylinder in the transport process whether there is damage, whether there is loose in the two ends of the rod nut or threaded connection, it can be installed and used when remove anti-rust oil and shield (cap).
2. The apply of front and rear flange, scaffolding type of cylinder, should avoid the installation of bolts directly under the thrust or tension of the load.
3. After the rodless air cylinder is installed, the pressure should be used 2-5 times under no load state to check the cylinder buckle to have no abnormal phenomenon.
4. Cylinder adjustment. When the speed of cylinder movement has certain requirements, the cylinder system must install a one-way throttle valve, the general situation of cylinder horizontal installation exhaust throttle cylinder speed is relatively stable. Cylinder vertical installation with intake throttle speed regulation should first connect the cylinder load, adjust the speed regulating valve to the middle position of the adjustment range and then adjust the output pressure of the pressure relief valve, when the cylinder speed close to the specified speed, you can decide to adjust the pressure and the speed regulating valve (one-way throttle valve) can then be adjust slightly.
5. Adjustable buffer cylinder is used to open all the cushioning valve before running, and then gradually increase the damping until satisfied. When adjusting the cushioning needle valve, the damping of the clockwise knob increases and the damping of the counterclockwise knob decreases.
