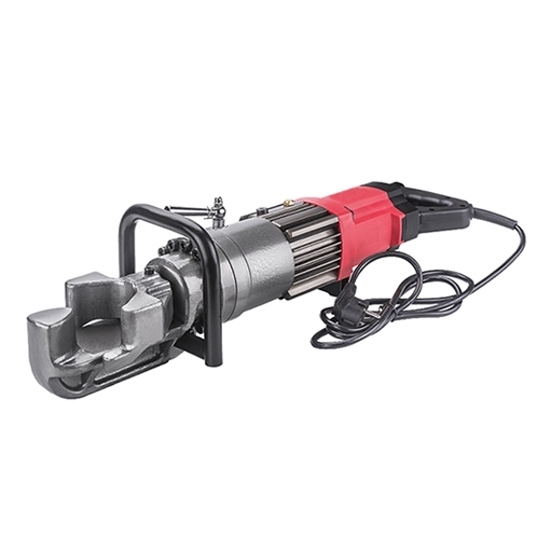

7/8" (4-22mm) Electric Rebar Bender, 950W/1300W

0 reviews • Write a review

from

$1,071.38

Ex Tax: $1,071.38

Stock: In Stock
Model: RDDLZ-RB-78
Weight: 1.00
SKU: RDDLZ-RB-78

Available Options

Short Description

Rated Voltage

Rated Power

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

7/8" electric rebar bender for sale online. It is a portable handheld bending machine driven by a 220V/110V AC power supply. 4-22mm diameter, 0~130° bending angle and 2.5~3s bending speed are available.

Features

4mm - 22mm electric rebar bender is a handheld rebar bending tool, with high strength and strong corrosion resistance.
Rebar bender machine provides a long bolt rod that limits the stroke, to achieve precise bending.
When the bending is completed or an error occurs in the middle, the piston can be returned to the initial position through the manual reset button.

Specifications

Model: RDDLZ-HRB-22
Rated Voltage: 110V, 220V
No-Load Power: 950W, 1350W
Bending Range: Ф4-Ф22mm (7/8 inch)
*Bending Angle: 0~130°
Bending Speed: 2.5s~3s
Machine Length: 600mm
Packing: iron box
Weight: 14.8kg

*Note: Bending 90°, rebar diameter should be 14-22mm. Rebar diameter＜14mm, bending angle cannot reach 90°.

Structure Diagram

Rebar Bending Machine Effect Diagram

Electric Rebar Bender Applications

Tips: 4 Preparations before using the electric rebar bender

Please check whether the mechanical performance of the electric rebar bender is good. The surface of the workbench and steel bending machine should be kept level. Prepare various mandrels and tool blocks.
Install the mandrel according to the steel bar diameter and the electric steel bar bending machine instructions to form the profiled shaft. The mandrel diameter of the iron stop shaft or variable block should be 2.5 times the diameter of the steel bar.
Please check the spindle. The stopper and turntable must not be damaged or cracked, and the protective cover must be fastened and reliable.
After the rebar bending machine starts, it should run without load for a period of time, and then start running after confirming that it is normal.
