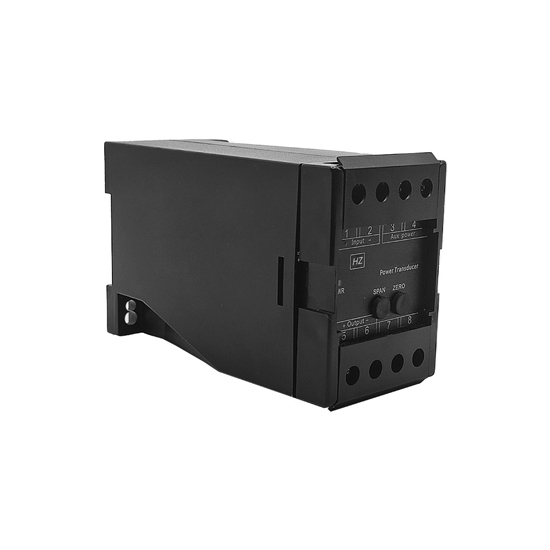

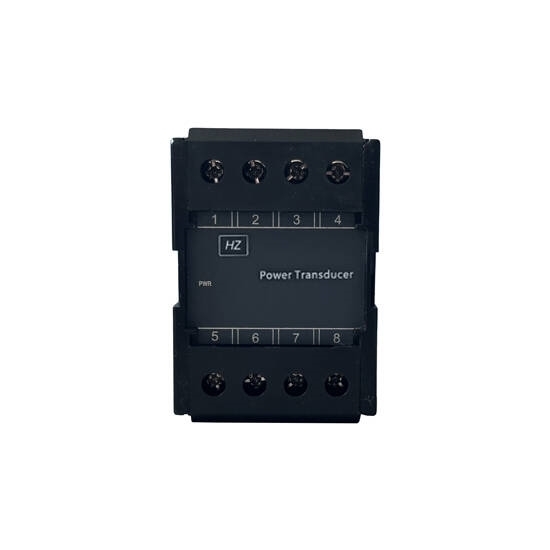

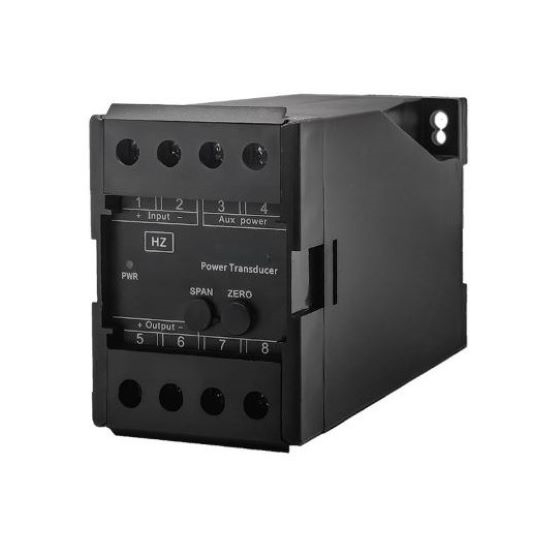

Frequency Transducer, 40-60Hz/45-55Hz/55-65Hz/0-100Hz

0 reviews • Write a review

from

$175.54

Ex Tax: $175.54

Stock: In Stock
Model: RDDLZ-PT-F
Weight: 1.00
SKU: RDDLZ-PT-F

Available Options

Output Signal

Accuracy

Range

Output Channel

Transducer Power

Fine-tuning Knob

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The output ripple of the frequency transducer is ≤ 0.5% RO peak. The shell material of the frequency transducer is ABS fireproof material, and the compressive strength is AC2Kvrms/min. It is installed using a 35mm standard rail or fixed on a cabinet.

Specification

Model	RDDLZ-PT-HDB-F
Range	40-60Hz, 45-55Hz, 55-65Hz, 0-100Hz, customization (optional)
Allow Overload	Voltage×1.2 times the nominal value lasts
Accuracy	0.2, 0.5 (optional)
Response Time	≤400ms
Output Channel	1 channel, 2 channels, 3 channels (optional)
Output Voltage	0-10V, 0-5V, 1-5V (load resistance = input voltage/10mADC)
Output Current	0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output	RS485, customization
Output Ripple	≤0.5% RO peak
Work Environment Temperature and Humidity	0~50℃/less than 80% relative humidity (no condensing)
Storage Conditions Temperature and Humidity	-20~70℃/less than 70% relative humidity (no condensation)
Aux.power Supply	DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply, internally powered (optional)
Isolation	Input/output/power supply/shell
Power Consumption	DC about 3W, AC about 4VA
Material of Shell	ABS fireproof material
Weight	About 300 grams
Compressive Strength	AC2kVrms/min
Insulation Resistance	>100MΩ at DC500V
Dimension	120 (L) × 55 (W) × 75 (H) mm
Installation Method	35mm standard guide rail or fixed on the cabinet

Dimension (Unit: mm)

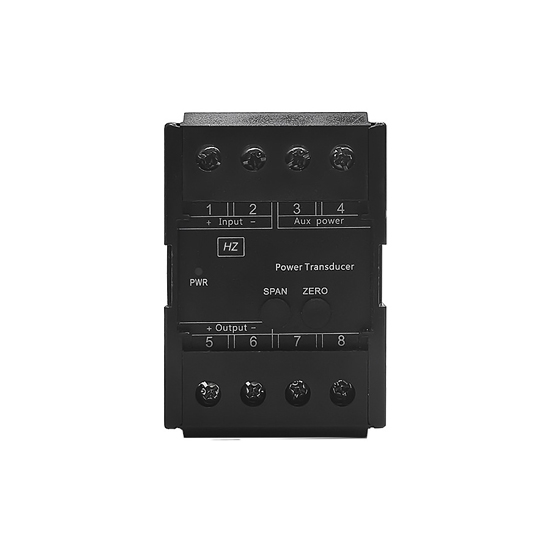

Calibration Fine Tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

Wiring

Tips: How to choose the right power transducer?

Determine the type of power to be measured: Select a transducer that is compatible with the type of power in your system, and make sure the sensor matches your electrical system configuration.
Determine electrical parameters: Select a transducer with voltage input that matches your system (e.g., 0-100V, 0-600V, etc.), and choose a model that supports the expected current load, either directly or through a current transformer (CT).
Consider accuracy and response time: High accuracy is critical for precise power monitoring in industrial and commercial applications. Fast response time is critical for dynamic load monitoring.
Environmental and mounting considerations: Mounting types include DIN rail, panel, or enclosure mounting. Make sure the operating temperature and humidity of the power transducer selected can withstand the environmental conditions.
