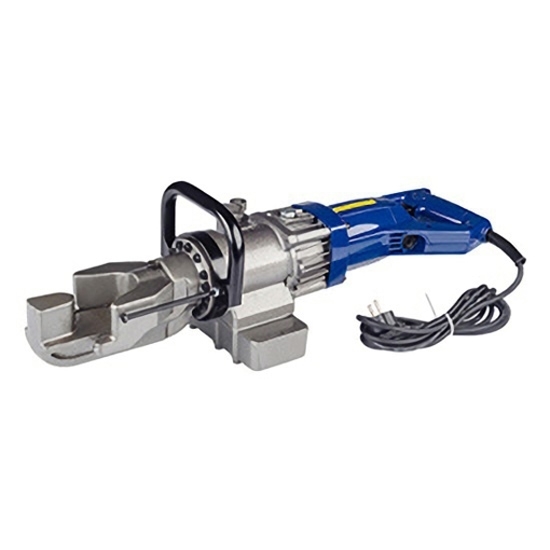

4mm - 16mm electric rebar bender is driven by the hydraulic system. It is a portable electric bending tool for low/medium carbon steel, round steel and rebar, comes with a bending range 5/8 inch, bending angle 0~130°, no-load power 800W/900W, and bending speed 5s.

Features

• 4mm - 16mm electric rebar bender provides a long bolt rod that limits the stroke, to achieve precise bending.
• When the bending is completed or an error occurs in the middle, the piston can be returned to the initial position through the manual reset button.
• The rebar bending machine is specially used for bending steel bars and various steel bars.

Specifications

• Model: RDDLZ-HRB-16
• Rated Voltage: 110V, 220V
• No-Load Power: 800W, 900W
• Bending Range: Ф4-Ф16mm (5/8 inch)
• *Bending Angle: 0~130°
• Bending Speed: 5s
• Machine Length: 600mm
• Packing: iron box
• Weight: 14.6kg

*Note: Bending 90°, rebar diameter should be 10-16mm. Rebar diameter＜10mm, bending angle cannot reach 90°.

Structure Diagram

Rebar Bending Machine Effect Diagram

Electric Rebar Bender Applications

Tips for Using an Electric Rebar Bender

• Before starting the electric rebar bender, check all mechanical parts. No-load run for a period of time, only after confirming that it is normal can it be operated officially.
• When operating an electric rebar bender, pay attention and be familiar with the rotation direction of the working plate. The placement of the rebar should match the block and the rotation direction of the working plate, it is cannot be reversed.
• During operation, the steel bars must be placed in the middle and lower parts of the plug. It is strictly forbidden to bend steel bars whose size exceeds cross-section. The rotation direction must be accurate, and the distance between the hand and the plug must not be less than 200mm.
• When the electric rebar bender is running, do not refuel or clean it. It is strictly forbidden to replace the mandrel, pin and change angle without stopping the machine.
