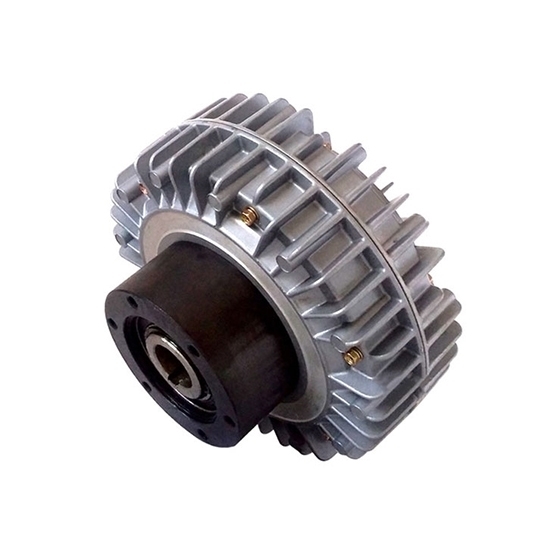

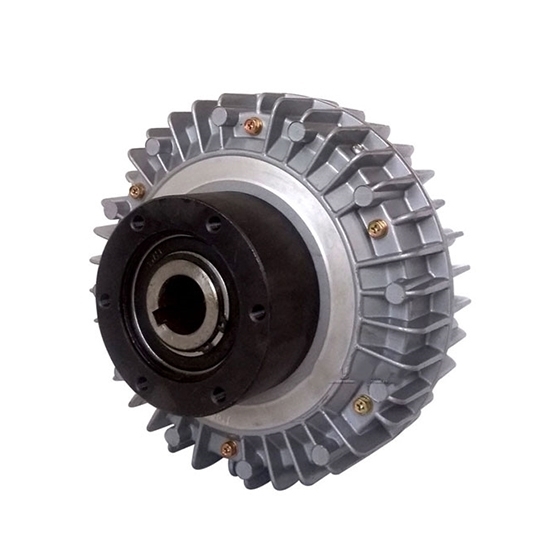

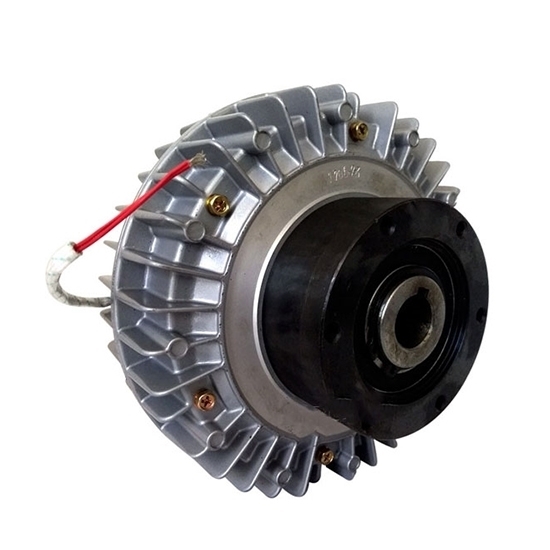

Magnetic Powder Clutch, Hollow Shaft, 6Nm-200Nm

0 reviews • Write a review

from

$415.56

Ex Tax: $415.56

Stock: In Stock
Model: RDDLZ-POC
Weight: 1.00
SKU: RDDLZ-POC

Available Options

Rated Torque (Nm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnatic powder clutch can choose rated torque 6Nm, 15Nm, 50Nm, 100Nm and 200Nm, 1800rpm rated speed, it can be used to paper making machines, cookie making machines and chemistry machines, superior quality and manufacturers direct sales.

Magnetic Powder Clutch Features
1. The excitation current is linear with the torque. The transmitted torque is substantially linear with the excitation current. As long as the magnitude of the stimulation current is changed, the magnitude of the torque can be controlled over a wide range. In general, the stimulus current is substantially proportional to the transmitted torque in the range of 5%-100% of the rated torque.
2. Stable slip torque. When the stimulation current remains unchanged, the transmitted torque is not affected by the difference in rotational speed between the active and the driven, that is, there is no difference between the static friction torque and the dynamic friction torque, so that the torque can be stably achieved. This feature is applied to the tension control, and the user can accurately control the torque by adjusting the stimulation current, thereby effectively controlling the tension of the roll.
3. Prevent heat generation due to slip. Generally, the friction part is inevitably heated or even burned when continuously sliding. However, the RDDLZ magnetic powder clutch has a complete heat sink, which will not be too hot for a long time and has a long service life.

6Nm-200Nm Magnetic Powder Clutch Specification:

Model		RDDLZ-POC-006	RDDLZ-POC-015	RDDLZ-POC-025	RDDLZ-POC-050	RDDLZ-POC-100	RDDLZ-POC-200
Rated Torque		6Nm	12Nm	25Nm	50Nm	100Nm	200Nm
Rated Current		0.74A	0.9A	1.1A	1.4A	2A	2.5A
Rated Voltage		DC24V
Power		17.8W	21.6W	26.4W	33.6W	48W	60W
No. of Hour Set		0.04S	0.04S	0.06S	0.09S	0.14S	0.3S
Moment of Interial	Input Side	2.70*10^-3Kgcm²	6.3*10^-3Kgcm²	1.2*10^-2Kgcm²	2.6*10^-2Kgcm²	7*10^-2Kgcm²	2.1*10^-1Kgcm²
Moment of Interial	Onput Side	5.0*10^-4Kgcm²	1.1*10^-3Kgcm²	2.3*10^-3Kgcm²	5.8*10^-3Kgcm²	7.5*10^-2Kgcm²	5.0*10^-2Kgcm²
Weight		2.7kg	5.2kg	9kg	14.5kg	37kg	53kg
Maximum Speed		1800 r/min
Weight of powder		14g	25g	39g	60g	117g	255g

Magnetic Particle Clutch Dimension (unit: mm)

Model	RDDLZ-POC-006	RDDLZ-POC-015	RDDLZ-POC-025	RDDLZ-POC-050	RDDLZ-POC-100	RDDLZ-POC-200
L1	86	103	119	150	166	198
L2	21	32	36	48	48	59
L3	58	58	66	82	100	118
L4	7	13	17	20	18	21
L5	1	2	2	3	4	1
L6	64	76	91	116	130	152
L7	21	25	26	31	32	45
D1	140	160	185	230	280	346
D2	82	96	114	150	176	200
D3 (g7)	70	80	90	110	125	160
D4	60	68	80	95	110	140
D5	60	68	80	95	110	140
D6	42	48	55	68	80	110
P	M6*10L	M6*10L	M6*10L	M8*12L	M10*18L	M10*18L
Q	M4*8L	M6*8L	M6*8L	M8*12L	M10*18L	M10*18L
d (H7)	15	18	20	30	35	45
W (F8)	4	5	6	8	10	14
T(+^0.2₀)	16.5	20	22	33	38.5	49

DC 24V Magnetic Powder Clutch Installation

Magnetic Powder Cluch Application

Tips: How to choose Magnetic Particle Clutches and Brakes?
1. Consider whether the torque can meet the requirements of tension control system.
2. The heat generated during operation should not exceed the allowable continuous slip power of the model used.
3. Select the type according to the comprehensive mechanical support, determine how much torque is required to meet the load requirements, as well as whether the installation mode and space meet the requirements.
4. You can also contact us, we will recommend the most suitable model for you.
