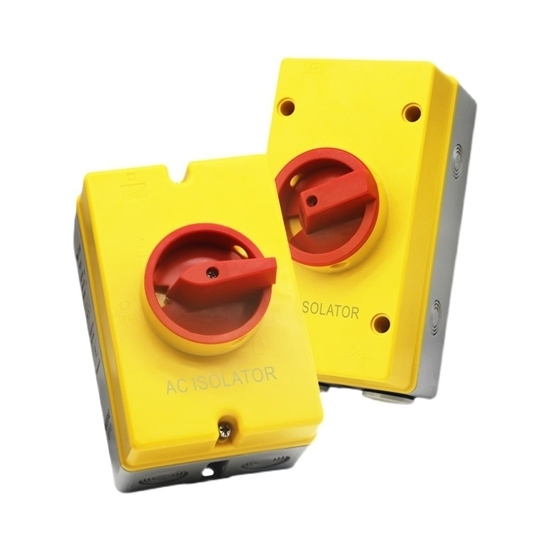

Waterproof AC Isolator Switch, 32A/40A/63A/80A, 4 Pole

0 reviews • Write a review

from

$59.46

Ex Tax: $59.46

Stock: In Stock
Model: RDDLZ-ACIS-32
Weight: 1.00
SKU: RDDLZ-ACIS-32

Available Options

Short Description

Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4 pole 32A/40A/63A/80A AC isolation switch is a rotary isolating switch for disconnecting and isolating circuits. It comes with 50/60Hz operating frequency, CE certificate, 415V to 690V DC voltage and IP 66 waterproof rating.

Features

Non-flammable Materials: The AC isolating switch uses PC flame retardant materials and insulating flame retardants.
Waterproof Sealing Ring: Enhanced sealing protection, IP66 waterproof level.
Flexible Knob: Provides flexible handle conversion and long mechanical life.
Inlet and Outlet Holes: There are two separate holes on both sides of the isolating switch for inlet and outlet lines.

Specifications

Model: RDDLZ-YRASEL
Number of Poles: 4 Pole
Rated Voltage: 415V DC to 690V DC
Rated Current: 32A/40A/63A/80A
Dimensions: 150X103X121mm (32A), 200X100X115mm (40A/63A/80A)
Waterproof Grade: IP66
Operating Frequency: 50/60Hz
Certificate: CE
Implementation Standard: IEC60947-3
Ambient Temperature: -25℃~+75℃
Insulation Voltage: AC 690V
Connection Type: M20 M25

Tips: What is AC isolator switch?

An AC isolator switch is a device used to safely disconnect an AC electrical circuit from its power source. It ensures that electrical equipment or circuits can be safely maintained or repaired without the risk of electrical shock or damage. The switch isolates the circuit by breaking the connection between the power source and the equipment, typically featuring a manual operation mechanism and often designed to handle high voltage and current levels. It can also include features like IP ratings for protection against environmental factors and load-breaking capacities to handle electrical loads safely.
