2.7 KW AC Servo Motor, 17 Nm/43 Nm, 380V, 1500 Rpm

0 reviews • Write a review

from

$1,461.35

Ex Tax: $1,461.35

Stock: In Stock
Model: ATO180ST-M17215
Weight: 1.00
SKU: ATO180ST-M17215

Available Options

Short Description

Rated Voltage

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

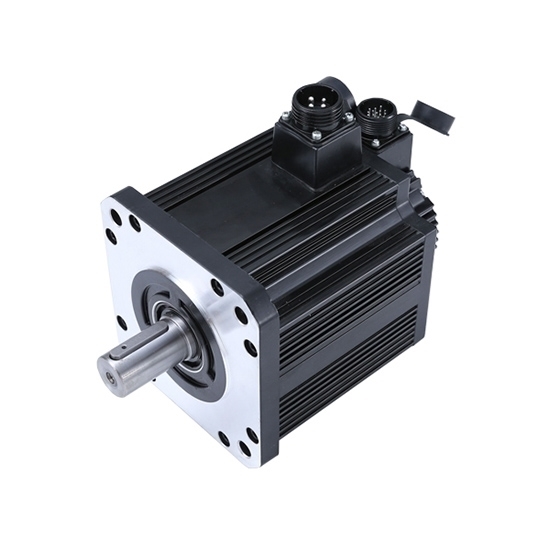

High torque AC servo motor, with a power rating of 2.7 kW, rated speed of 1500 rpm, rated torque is 17 Nm and peak torque up to 43 Nm, offering high performance and high accuracy control. Brushless servo motor, IP65 for body, long life and high reliable.

Specification

Basics	Model	RDDLZ180ST-M17215
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	180mm
	Rated Power	2.7 kW
	Rated Voltage	3-phase 380V AC (Optional: 220V AC)
	Rated Current	6.5 A at 380V, 10.5 A at 220V
	Rated Speed	2000 rpm
	Rated Torque	17 Nm
	Peak Torque	43 Nm
	Weight	20 Kg
	Length	226 mm
Technical Parameters	Voltage Constant	167 V/ 1000r/ min
	Brake Voltage	24V DC
	Torque Coefficient	2.65 N.m/ A
	Torque Inertia	6.5 x 10^-3 Kg.M2
	Line-Line Resistance	1.47 Ω
	Line-Line Inductance	7.8 mH
	Electrical Time-Constant	5.3 ms
	Encode Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class F
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Motor Dimension (unit=mm)

LA (without brake): 226mm, LA (with brake): 308mm

Details

Winding and Encoder Connection

1. For servo motor winding

motor Winding Plug	Motor Line	U	V	W	PE
motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
