Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm

Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
Fixed VOC Gas Detector, 0 To 10/100/200/1000/10000 Ppm
0 reviews • Write a review
from
$1,765.79
Ex Tax: $1,765.79
  • Stock: In Stock
  • Model: GD300-VOC
  • Weight: 1.00
  • SKU: GD300-VOC

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

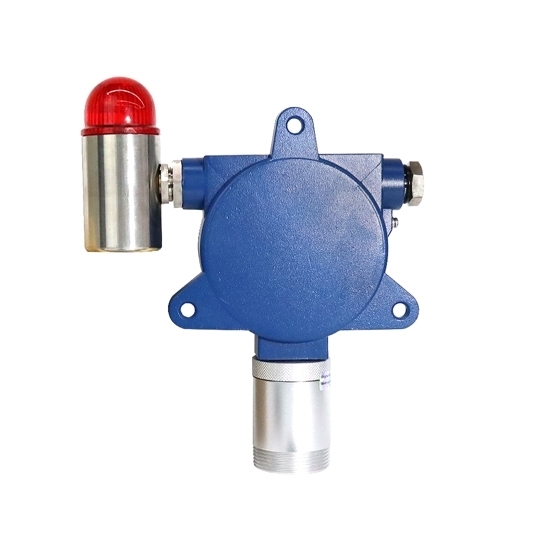

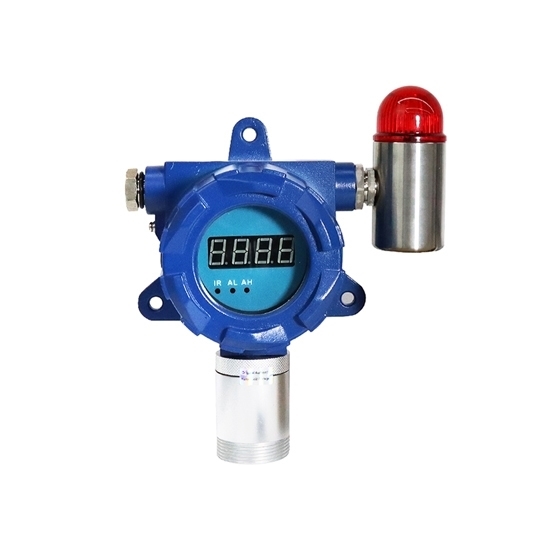

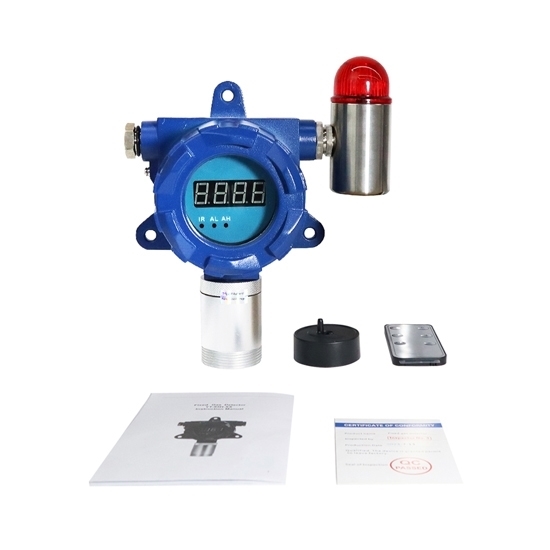

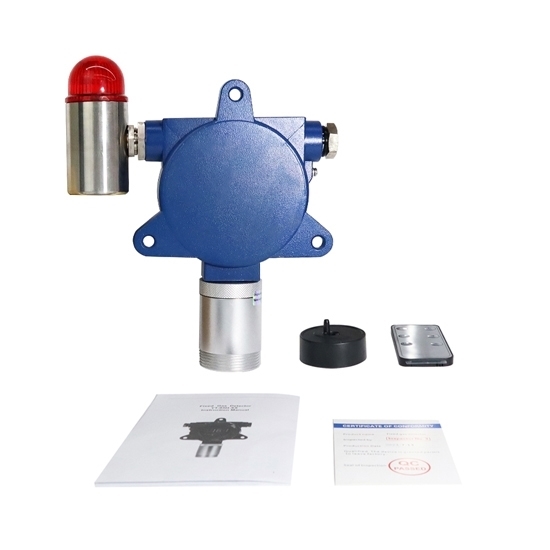

RDDLZ fixed VOC gas detectors are designed for continuous monitoring, offering reliable performance and durability in harsh industrial conditions. They are typically installed at reliable locations to monitor and detect VOC leaks or emissions.

Features

  • VOC gas detector adopts high precision sensor for accurate gas leak detection.
  • Volatile Organic Compounds gas detector is equipped with 3-wire system 4-20mA analog output, relay output, RS485 output (optional).
  • The VOC gas monitor is compatible with various controlled alarms, PLC, DCS and other control system, and can be remote monitored.
  • Explosion-proof design, fast, relaible and stable.
  • Infrared ray controller can remote control the alarm point settings, zero calibration, and address modification.
  • Two-stage alarm with sound and light, and the alarm point is settable.
  • The VOC gas detector has self-calibration function, and three standard keys will be used to realize on-site maintenance.
  • Volatile Organic Compounds gas detector can output one or two on-off signals, can drive ventilator, solenoid valve or other external devices.

Specification

ModelGD300-VOC
Detection PrincipleHigh Precision PID
GasVolatile Organic Compounds (VOC)
Range0 to 1ppm, 0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 200ppm, 0 to 500ppm, 0 to 1000ppm, 0 to 2000ppm, 0 to 5000ppm, 0 to 10000ppm
Resolution0.001 ppm(0-1/5 ppm), 0.01ppm (0-10/20/50ppm), 0.1ppm (0-100/200ppm), 1ppm (0-500/1000/2000/5000/10000ppm)

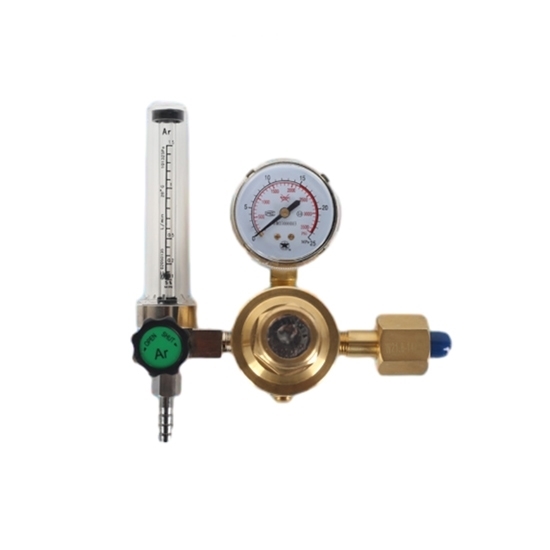

Calibration KitGas pressure regulator (calibration gas cylinder NOT included)
Accuracy≤±3% F.S.
Responce Time≤10s
Repeatability≤±1%
Recovery Time≤10s
Linearity Error≤±1%
Zero Shift≤±1% (F.S./year)
Signal Output (Optional)4-20mA and RS485
Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
AlarmsSound, light
DisplayHigh light nixie tube display
InstallationWall-mounted, piping type, flow-type (according to the detected environment)
ConnectionG1/2 is the inlet and outlet for power and signal lines
Pipe-mounted type: The installation thread size of the instrument is M45*P2.0
Operating Time24h
Explosion-proof GradeⅡ 2G Ex ia Ⅱ CT4 Ga
Protection GradeIP65
CertificationCE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage12~36V DC
Case MaterialDie-casting aluminum housing
Operating Temperature-20℃~50℃
Operating Humidity0~95%RH (non-condensing)
Dimension206*179*90mm
Weight≤1.6kg

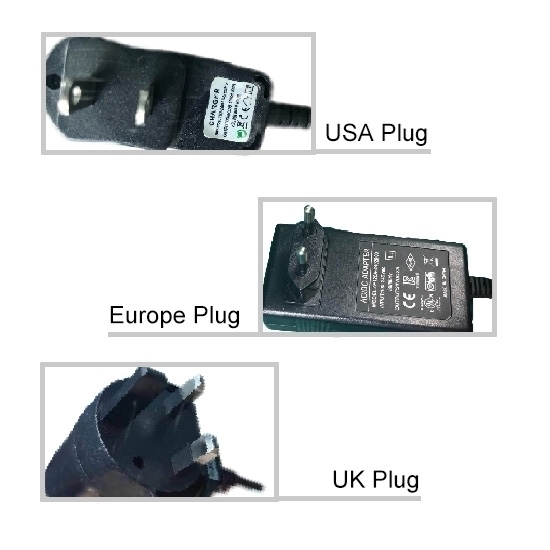

AccessoriesPower adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

Fixed Volatile Organic Compounds (VOC) Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Gas TypeMeasure RangeResolution
Ammonia (NH3)0-50/100/200/500/1000/2000/5000ppm0.01ppm/0.1ppm/1ppm
Benzene (C6H6)0-1/10/50/100/200/1000/2000/5000/10000ppm0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)0-1000/2000/5000/9999ppm, 0-2/5/10/20/25/30/50/100%VOL0.1ppm/1ppm/0.001%VOL/0.01%VOL/0.1%VOL
Carbon Monoxide (CO)0-10/20/50/100/500/1000/2000ppm0.01ppm/0.1ppm/1ppm
Chlorine (Cl2)0-5/10/20/50/100ppm0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)0-1/5/10/20/50/100ppm0.001ppm/0.01ppm/0.1ppm
Combustible Gas (EX)0-100%LEL1%LEL
Ethylene (C2H4)0-10/20/50/100/500/1000/2000ppm0.01ppm/0.1ppm/1ppm
Formaldehyde (CH2O)0-10/20/50/100/500/1000ppm0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)0-100%LEL1%LEL
Hydrogen (H2)0-10/20/500/1000/2000/5000/9999ppm, 0-2/4% VOL, 0-100% LEL0.1ppm/1ppm/0.001%VOL/1%LEL
Hydrogen Chloride (HCL)0-10/20/50/100/200ppm0.01ppm/0.1ppm
Hydrogen Cyanide (HCN)0-10/20/50/100ppm0.01ppm/0.1ppm
Hydrogen Sulfide (H2S)0-5/20/50/100/200ppm0.001ppm/0.01ppm/0.1ppm
Methane (CH4)0-50/100%VOL, 0-100%LEL0.01%VOL/0.1%VOL/1%LEL
Nitric Oxide (NO)0-1/5/10/20/50/100/250/500/1000ppm0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen (N2)0-99.99/0-100%VOL0.01%VOL/0.1%VOL
Nitrogen Dioxide (NO2)0-1/5/10/20/50/100/500/1000ppm0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen Oxides (NOX)0-1/5/10/20/50/100/250/500/1000ppm0.001ppm/0.01ppm/0.1ppm/1ppm
Oxygen (O2)0-25/30/100%VOL0.01%VOL/0.1%VOL
Ozone (O3)0-1/5/10/20/50/100ppm0.001ppm/0.01ppm/0.1ppm
Phosphine (PH3)0-10/20/50/100/500/1000/2000/3000ppm0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)0-1/5/10/20/50/100/500/1000ppm0.001ppm/0.01ppm/0.1ppm/1ppm
Volatile Organic Compounds (VOC)0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm0.001ppm/0.01ppm/0.1ppm/1ppm

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Details

Tips: What are VOC gases?

Volatile Organic Compounds (VOCs) are gases released from various solids or liquids and are commonly found in household products, building materials, and industrial processes.  These compounds evaporate easily at room temperature, releasing the molecules into the air. Common sources of VOCs include paints, solvents, cleaners, and fuels.  While many VOCs are harmless, some may pose health risks, causing indoor and outdoor air pollution.  Short-term exposure to high concentrations of VOCs may irritate the eyes, nose, and throat, as well as headaches and nausea.  Long-term exposure to certain volatile organic compounds can lead to more serious health problems, such as liver, kidney, and nervous system damage, as well as an increased risk of cancer. Therefore, in this environment, it is very necessary to choose to use a VOC gas detector.
