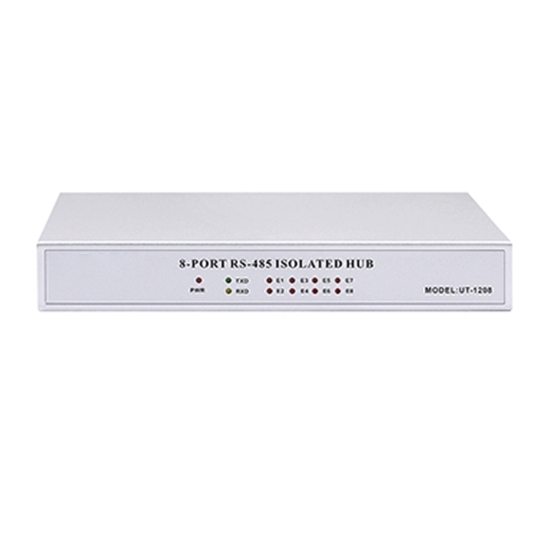

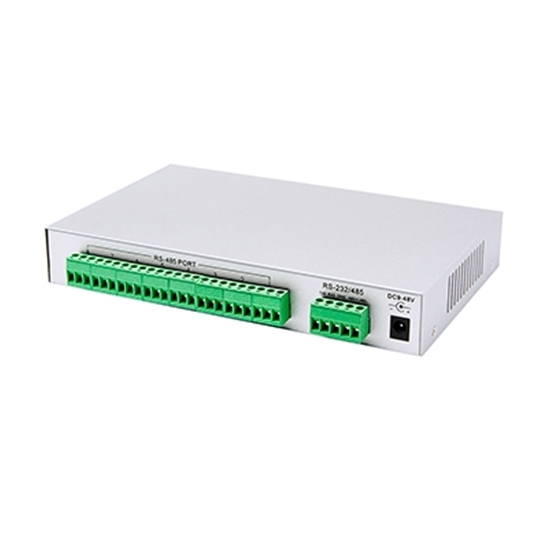

RS-232/ RS-485 To RS-485 Hub, 8 Ports

RS-232/ RS-485 To RS-485 Hub, 8 Ports
RS-232/ RS-485 To RS-485 Hub, 8 Ports
RS-232/ RS-485 To RS-485 Hub, 8 Ports
RS-232/ RS-485 To RS-485 Hub, 8 Ports
RS-232/ RS-485 To RS-485 Hub, 8 Ports
0 reviews • Write a review
from
$303.97
Ex Tax: $303.97
  • Stock: In Stock
  • Model: RDDLZ-UT-1208
  • Weight: 1.00
  • SKU: RDDLZ-UT-1208

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap Cost-effective RS-232/ RS-485 to RS-485 hub with 8 ports, -40℃ to 85℃ operating temperature, RS-232C & RS-485 input interface.

Specification

ModelRDDLZ-UT-1208
StandardsRS-232/485 EIA/ TIA
Input interfaceRS-232C & RS-485
Output interface8 ports RS-485
Baud rate300-115.2Kbps
Transmission distance5000m (9600bps)
Operating modeAsynchronous half-duplex
ConnectorTerminal block
Dimension210mm*130mm*32mm
Operating temperature-40℃ to 85℃
Relative humidity5% to 95%
CertificatesRoHS, CE, FC
Warranty12 months

Dimension (mm/ inch)

Tips: The Classification of Hub
HUB can be divided into passive HUB, active HUB, smart HUB and other HUB according to the way of processing the input signal.
Passive HUB:
It is the worst type, does not do any processing to the signal, does not extend the transmission distance of the medium, and has a certain impact on the signal. Each computer connected to this HUB can receive signals from all other computers on the same HUB.
Active HUB:
The difference between an active HUB and a passive HUB is that it can amplify or regenerate the signal, so that it extends the effective transmission distance between the two hosts.
Smart HUB:
In addition to all the functions of an active HUB, the intelligent HUB also has network management and routing functions. In the smart HUB network, not every machine can receive the signal, only the computer with the same address as the signal destination address can receive it. Some smart HUBs can choose the best path by themselves, which has a good management of the network!
