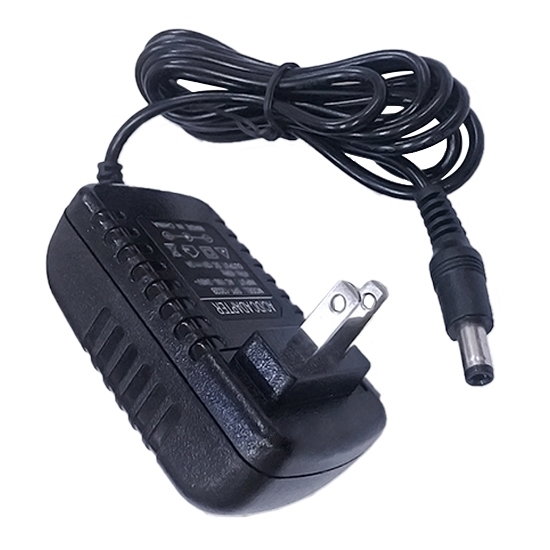

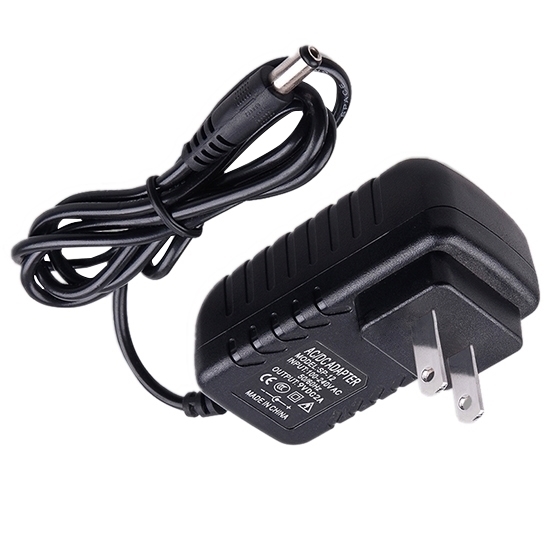

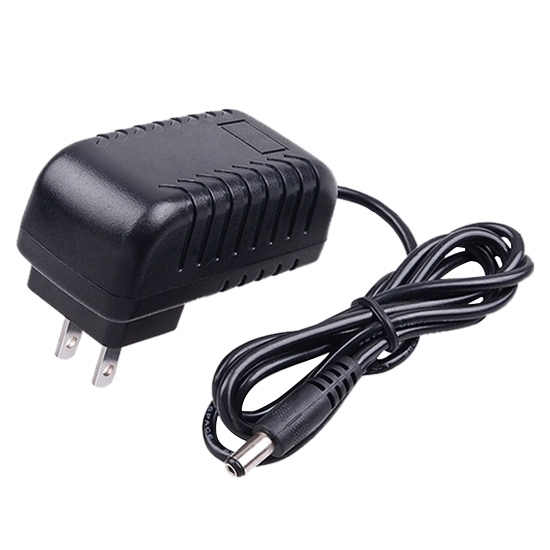

12V AC To DC Wall Adapter, 12W/ 18W/ 24W/ 36W, 1A-3A

0 reviews • Write a review

from

$40.63

Ex Tax: $40.63

Stock: In Stock
Model: RDDLZ-AWA-SPF-012
Weight: 1.00
SKU: RDDLZ-AWA-SPF-012

Available Options

Power Supply

Power Plug

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12 volt wall mount AC adapter with 100-250VDC input voltage, frequency 50-60Hz, GB/ US/ EUR/ JPN/ UK/ GER/ AUS seven plugs can be chosen.

Specification

Model	RDDLZ-AWA-SPF-012
Rated power	12W/ 18W/ 24W/ 36W
Output voltage	12VDC
Output current	1A/ 1.5A/ 2A/ 3A
Input voltage	100-250VAC
Frequency	50-60Hz
DC port size	5.52.5mm (compatible 5.52.1mm)
Efficiency	98%
Shell material	Fireproof plastic enclosure
Colour	Black
Capacity	1000mA/ 1500mA/ 2000mA/ 3000mA
Input ripple	≤80mV
Applicable equipment	Router/ set-top box/ massage pillow/ player/ monitoring/ LED power supply
Size	74mm42mm28mm
Certificates	CE, FCC, RoHS
Plug	GB/ US/ EUR/ JPN/ UK/ GER/ AUS
Warranty	2 years

Dimension (mm)

Tips: How to Solve the Electromagnetic Compatibility of AC Wall Adapter?

Cut off the propagation path of the interference signal to reduce the influence of electromagnetic interference and weaken the signal of electromagnetic interference. The wall mount AC adapter can adopt a filter to filter the interference signal of AC and DC wires. The EMI filter of the power adapter is for AC and DC wires. Both differential mode and common mode interference have a strong suppression and weakening effect. The electromagnetic compatibility of the PCB board of the power adapter is also particularly important.
The PCB board is the most important part of the circuit components and device connections of the power adapter. All parts are connected by the PCB board. The quality of the PCB and component layout design has a great impact on the electromagnetic compatibility of the power adapter. So at the beginning of the design, the anti-interference of the PCB is designed well, and unnecessary actions can be reduced later. The anti-interference design of the PCB mainly includes PCB layout, wiring and grounding, and component layout. Its role is to reduce the electromagnetic radiation of the PCB and the PCB The crosstalk between the upper circuits. In addition, it should be noted that the frequency of the hum frequency caused by the electromagnetic interference of the general transformer is generally about 50HZ, and the hum frequency caused by improper ground wiring is about 100HZ due to the frequency multiplication of the rectifier circuit. It is still detectable.
