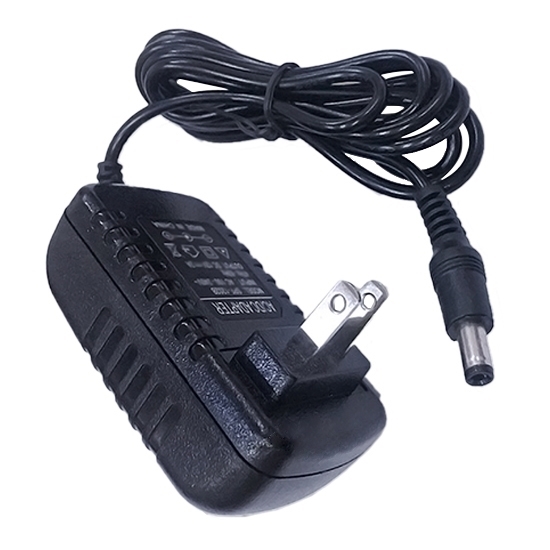

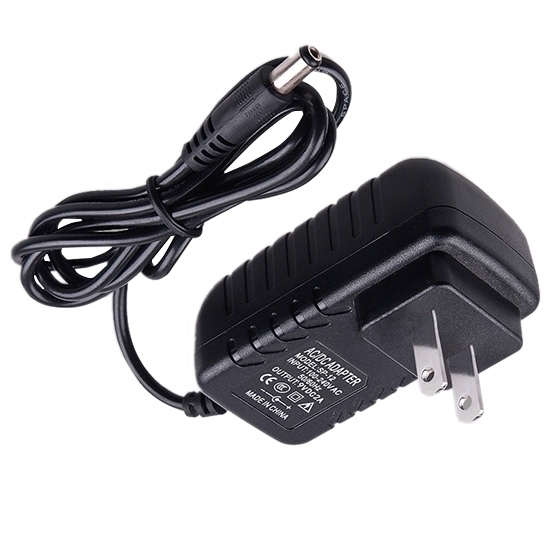

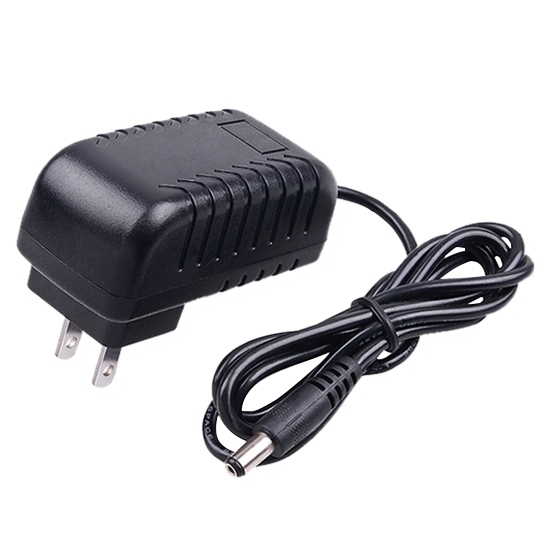

6V AC To DC Wall Adapter, 6W/ 12W, 1A/ 2A

0 reviews • Write a review

from

$47.21

Ex Tax: $47.21

Stock: In Stock
Model: RDDLZ-AWA-SPF-06
Weight: 1.00
SKU: RDDLZ-AWA-SPF-06

Available Options

Power Supply

Power Plug

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost wall mount AC adapter with the 100-250VDC input voltage, 98% high efficiency. 6V AC to DC power supply has the advantages of good flexibility, fast charging speed, environmental protection, non-toxicity, good flexibility, and durability.

Specification

Model	RDDLZ-AWA-SPF-06
Rated power	6W/ 12W
Output voltage	6VDC
Output current	1A/ 2A
Input voltage	100-250VAC
Frequency	50-60Hz
DC port size	5.52.5mm (compatible 5.52.1mm)
Efficiency	98%
Shell material	Fireproof plastic enclosure
Colour	Black
Capacity	1000mA/ 2000mA
Input ripple	≤80mV
Applicable equipment	Sphygmomanometer/ blood glucose meter/ blood type meter/ attendance fingerprint machine/ CCTV
Size	74mm42mm28mm
Certificates	CE, FCC, RoHS
Plug	GB/ US/ EUR/ JPN/ UK/ GER/ AUS
Warranty	2 years

Dimension (mm)

Tips: What is the Electromagnetic Compatibility of the AC Wall Adapter?

The electromagnetic compatibility of wall-mounted power adapters means that under the specified electromagnetic environment level, they are not subject to electromagnetic interference and reduce their performance and their indicators. At the same time, the electromagnetic radiation generated by them is not greater than the specified limit level, compared with other Electronic equipment does not have an impact. Make the power adapter itself and other electronic equipment coexist harmoniously, and do not interfere with each other and work together.

In terms of electromagnetic compatibility, the power adapter mainly produces electromagnetic interference that exceeds the specified limit. It has the ability to resist certain electromagnetic interference, that is, it should not be interfered by other electronic equipment or electronic systems in the same electromagnetic environment. The phenomenon of reduced working performance.
