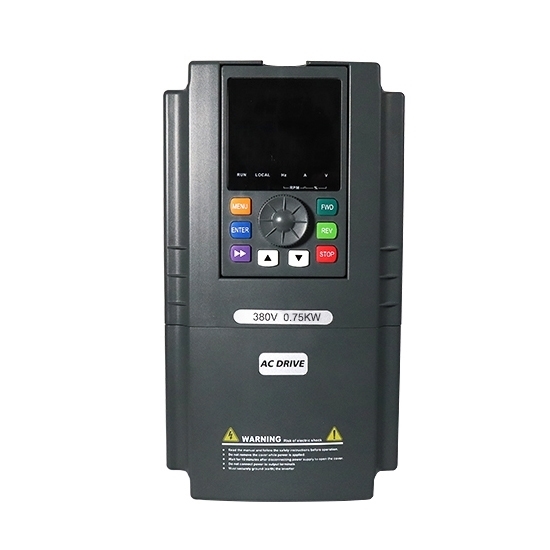

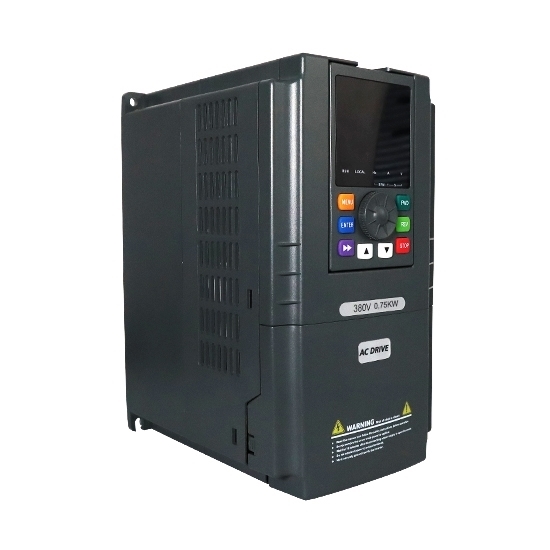

1 Hp (0.75 KW) VFD, 3 Phase 230V, 400V, 480V

0 reviews • Write a review

from

$206.49

Ex Tax: $206.49

Stock: In Stock
Model: GK3000-4T0007G
Weight: 1.00
SKU: GK3000-4T0007G

Available Options

Short Description

Input Voltage (Three Phase) ±15%

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 hp variable frequency drive, three phase 50Hz/60Hz 220V, 230V, 240V, 380V, 400V, 415V, 480V, manufacturer direct sale.

Specification:

Basics	Model	GK3000-4T0007G/ GK3000-2T0007G
	Capacity	1 hp (0.75 kW)
	Shipping weight	2 kg
	Dimension	190104150 mm for GK3000-4T0007G/ 236130176 mm for GK3000-2T0007G
I/O Feature	Rated current	2.1A at 380V ~ 480V, 3.8A at 220V ~ 240V
	Input voltage	3 phase 230V /400V /480V AC ±15% (Optional)
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Details

Tips: Variable frequency drive heating problem treatments
The variable frequency drive will generate heat in operation due to internal loss, which the main circuit generates 98% and the control circuit 2%. In summer, the hot weather will raise the temperature of VFD to about 80~90℃. Because of VFD is an electronic device with electron device and electrolytic capacitor. The high temperature can cause components failure, LCD screen no display, and also cause VFD protection action. Therefore, must dissipate heat for VFD in order to extend the life of VFD.
General VFD operating ambient temperature is -10℃~+50℃. In order to ensure reliable operation of the VFD and extend the service life, VFD must perform heat dissipation. In winter, the built-in fan is able to drive the internal heat away. In summer, the temperature can reach 40℃, the built-in fan can only raise the indoor and VFD cabinet temperature. At this time the best way is to use the windows, or drill some φ500mm holes on the wall of the power distribution room near VFD, while ensuring in the cabinet around VFD there is some space, keeping natural ventilation. If this is still not enough, use built-in fan, or install exhaust fan and air flue around the holes to force out the heat. Moreover, the air conditioner can be the final solution for forced cooling.
