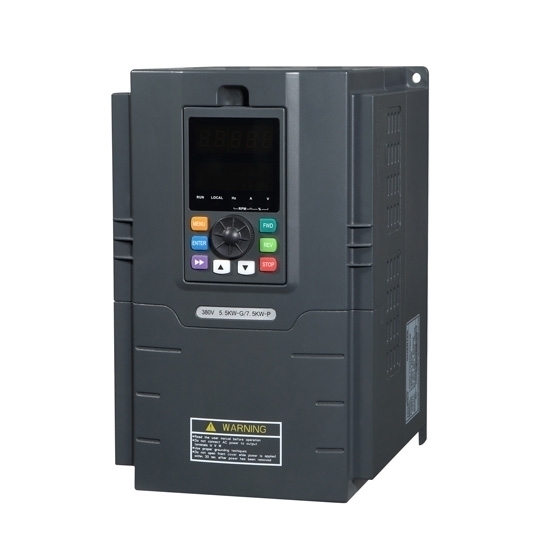

20 Hp (15kW) VFD, 3 Phase 220V, 380V, 460V

0 reviews • Write a review

from

$697.14

Ex Tax: $697.14

Stock: In Stock
Model: GK3000-4T0150G
Weight: 1.00
SKU: GK3000-4T0150G

Available Options

Short Description

Input Voltage (Three Phase) ±15%

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

20 hp (15 kW) high performance vector variable frequency drive, three phase 220V, 380V, 460V for selection, RS485 enabled.

Specification:

Basics	Model	GK3000-4T0150G/ GK3000-2T0150G
	Capacity	20 hp (15 kW)
	Shipping weight	8 kg
	Dimension	330200200 mm for GK3000-4T0150G/ 530320235 for GK3000-2T0150G
I/O Feature	Rated current	32A at 380V ~ 480V, 60A at 220V ~ 240V
	Input voltage	3 phase 220V /380V /460V AC ±15% (Optional)
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Variable frequency drive selection precautions

The purpose of using VFD: Constant voltage control, constant current control or others.
The load type of the VFD: Such as vane pump, displacement pump or others, pay special attention to the load performance curve, the performance curve determines the applications method.
The VFD and the load matching problem:
1) Voltage matching: The rated voltage of VFD should be accordance with the rated voltage of the load.
2) Current matching: For ordinary centrifugal pump, VFD rated current and motor rated current should be accordant. For special loads such as deep water pumps, should refer to the motor performance parameters, use the maximum current to determine the VFD current and overload capacity.
3) Torque matching: This situation may occur when a constant torque load or a deceleration device is present.
When using VFD to drive high-speed motor, due to high-speed motor reactance is small, higher harmonics increase may cause output current value increases. So for high-speed motor, the capacity of VFD should be slightly higher than for ordinary motor.
If the VFD will use long cable, should take measures to suppress effect from the long cable to the ground coupling capacitor, in order to avoid insufficient output of the VFD. So in this case, should choose a VFD with higher capacity or install a reactor on the output terminal.
For some special applications, such as high temperature or high altitude, these situations will cause the VFD derating capacity, and should choose a higher capacity VFD.
