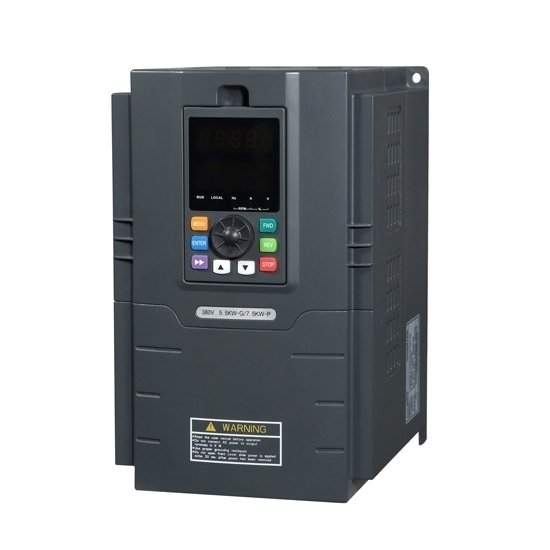

15 Hp (11 KW) VFD, 3 Phase 230V, 415V, 480V

0 reviews • Write a review

from

$634.44

Ex Tax: $634.44

Stock: In Stock
Model: GK3000-4T0110G
Weight: 1.00
SKU: GK3000-4T0110G

Available Options

Short Description

Input Voltage (Three Phase) ±15%

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15 hp (11 kW) variable frequency drive with good performance, three phase 230V, 415V, 480V for selection,manufacturer direct sale.

Specification:

Basics	Model	GK3000-4T0110G/ GK3000-2T0110G
	Capacity	15 hp (11 kW)
	Shipping weight	8 kg
	Dimension	330200200 mm for GK3000-4T0110G/ 330200200 for GK3000-2T0110G
I/O Feature	Rated current	25A at 380V ~ 480V, 45A at 220V ~ 240V
	Input voltage	3 phase 230V /415V /480V AC ±15% (Optional)
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the debate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Variable Frequency Drive Output unbalanced
VFD output unbalanced is generally expressed as motor dithering and speed instability. The main reason is the damages of the module, drive circuit, reactor, etc.
For example, a 15hp VFD with output voltage difference of about 100V.
Analysis and maintenance: Open the VFD, check the inverter module online and find there is no problem. Measure the six-way drive circuit and find no fault. And then remove the module, and find in bridge upper of one way, a high-power transistor cannot normally turn on and off. The module is broken. And confirmer drive circuit has no fault. Finally replace the transistor, and then the VFD is normal.
