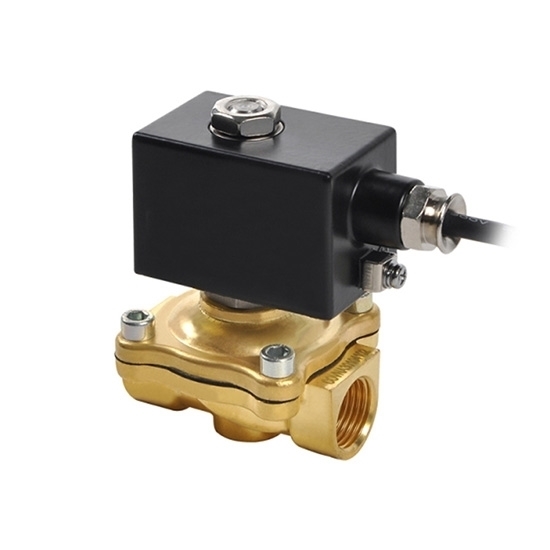

Explosion Proof Solenoid Valve, Brass, NO, AC 24V/110V/220V

0 reviews • Write a review

from

$349.21

Ex Tax: $349.21

Stock: In Stock
Model: RDDLZ-EPSV-BNOA
Weight: 1.00
SKU: RDDLZ-EPSV-BNOA

Available Options

Short Description

Voltage

Port Size

Fluid Temperature

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

The coil shell of the explosion-proof solenoid valve has a blocking effect on the gas explosion energy transfer. Pressure of NO solenoid valve between 0.0 MPa and 1.0 MPa.

Specification:

Model	RDDLZ-2WEX-10	RDDLZ-2WEX-15	RDDLZ-2WEX-20	RDDLZ-2WEX-25	RDDLZ-2WEX-32	RDDLZ-2WEX-40	RDDLZ-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANCE
Voltage	AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	brass
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

Explosion Proof Solenoid Valve NO Structure:

Thread Connection Dimension (Unit: mm)

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: Advantages of NBR

Nitrile butadiene rubber has good heat resistance, and its heat resistance is better than natural rubber and styrene butadiene rubber.
Rubber is endowed with better physical and mechanical properties and wear resistance by reinforcement.
The antistatic property is excellent, and the plasticizing effect is better with polar lipids.
Good compatibility with polar substances, such as PVC, alkyd resin, nylon.
