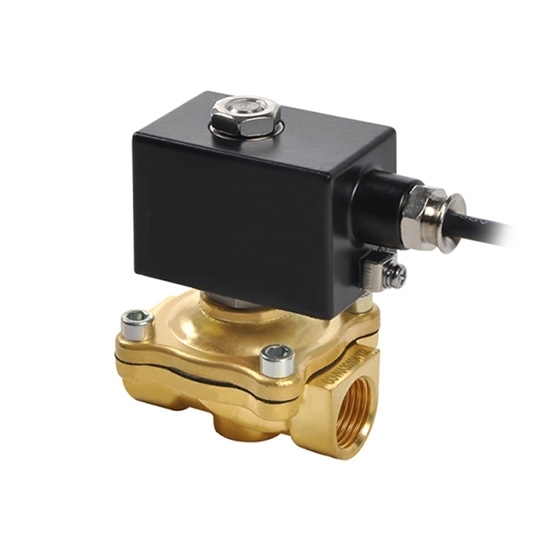

Explosion Proof Solenoid Valve, Brass, NC, AC 24V/110V/220V

0 reviews • Write a review

from

$296.51

Ex Tax: $296.51

Stock: In Stock
Model: RDDLZ-EPSV-BNCA
Weight: 1.00
SKU: RDDLZ-EPSV-BNCA

Available Options

Short Description

Voltage

Port Size

Fluid Temperature

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

The coil shell of the explosion-proof solenoid valve has a blocking effect on the gas explosion energy transfer. Especially suitable for the transmission of flammable and explosive media.

Specification:

Model	RDDLZ-2WEX-10	RDDLZ-2WEX-15	RDDLZ-2WEX-20	RDDLZ-2WEX-25	RDDLZ-2WEX-32	RDDLZ-2WEX-40	RDDLZ-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANCE
Voltage	AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	brass
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

Explosion Proof Solenoid Valve NC Structure:

Thread Connection Dimension (Unit: mm)

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: Working Principle of Explosion Proof Solenoid Valve

There is a closed chamber in the explosion-proof solenoid valve, and there are through holes in different positions, each hole leads to different tubing. In the middle of the chamber is a valve, and two electromagnets are on both sides. The valve body will be attracted to which side when the magnet coil is energized. By controlling the movement of the valve body to stop or leak out of different drainage holes, and the oil inlet hole is normally open, the hydraulic oil will enter the different drainage pipe, and then through the pressure of the oil to promote the piston cylinder, piston rod, piston rod to drive the mechanical device.
