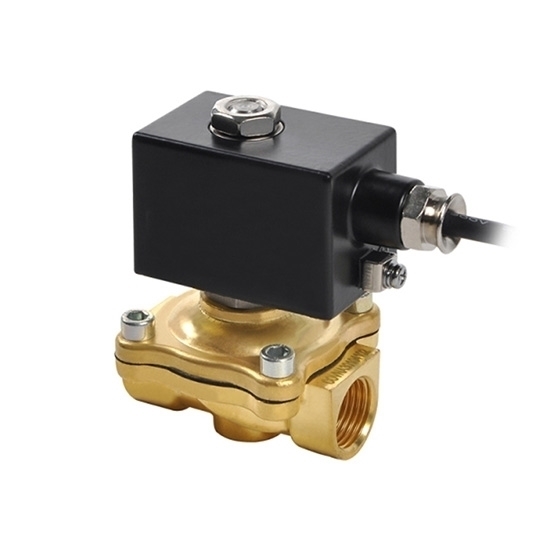

Explosion Proof Solenoid Valve, Brass, NO, DC 6V/12V/24V

0 reviews • Write a review

from

$349.21

Ex Tax: $349.21

Stock: In Stock
Model: RDDLZ-EOSV-BNOD
Weight: 1.00
SKU: RDDLZ-EOSV-BNOD

Available Options

Short Description

Voltage

Port Size

Fluid Temperature

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Explosion-proof solenoid valve can be used to close all parts of the equipment that may ignite explosive gas mixtures in a shell. Tolerance of brass solenoid valve is in the 10% range.

Specification:

Model	RDDLZ-2WEX-10	RDDLZ-2WEX-15	RDDLZ-2WEX-20	RDDLZ-2WEX-25	RDDLZ-2WEX-32	RDDLZ-2WEX-40	RDDLZ-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANCE
Voltage	DC 6V, 12V, 24V
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	brass
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

Explosion Proof Solenoid Valve NO Structure:

Thread Connection Dimension (Unit: mm)

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: What is VITON?

VITON is a synthetic polymer elastomer containing fluorine atoms on the carbon atoms of the main or side chains. The introduction of fluorine atoms gives rubber excellent heat resistance, oxidation resistance, oil resistance, corrosion resistance and atmospheric aging resistance, which has been widely used in aerospace, aviation, automobile, petroleum and household appliances and other fields.
